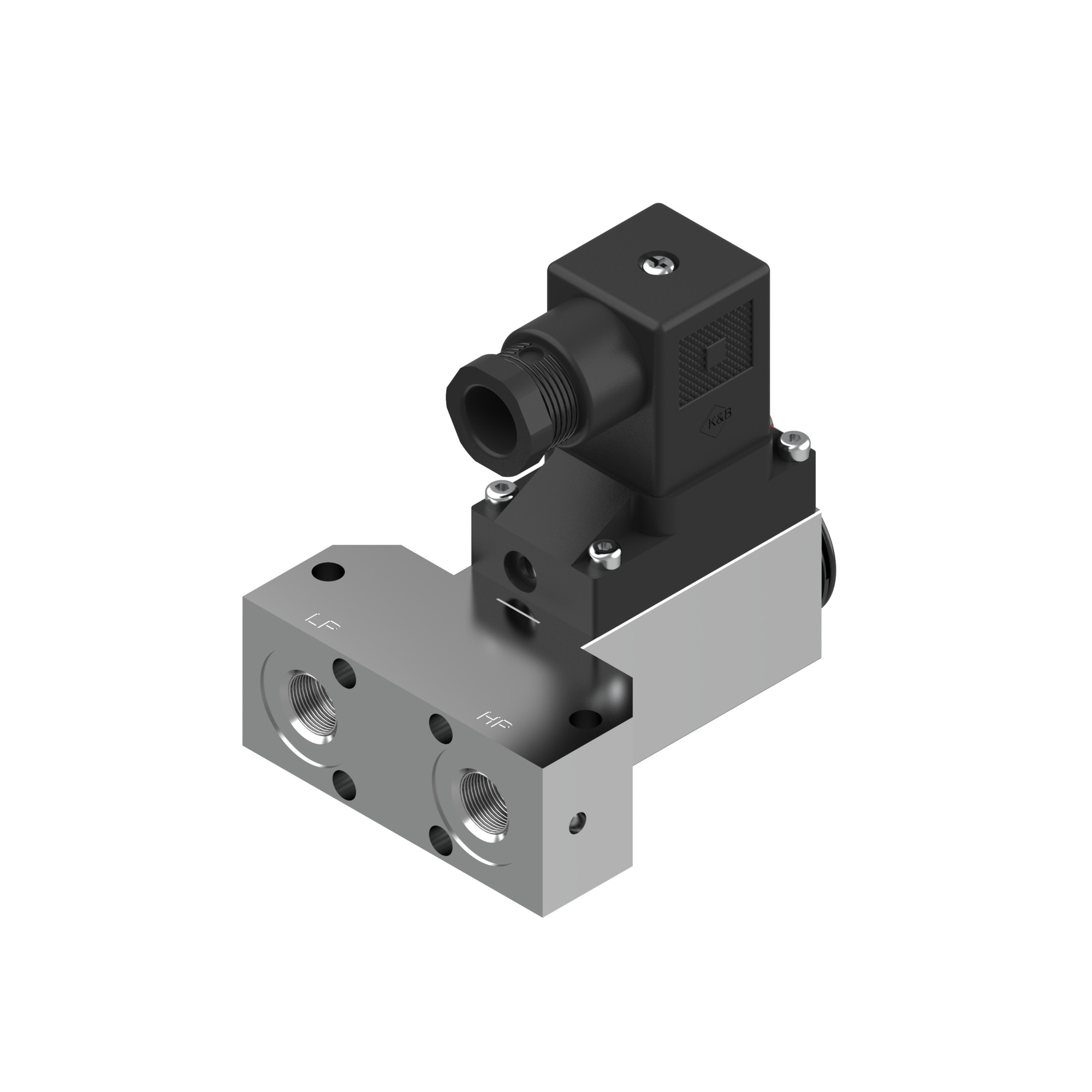

Danfoss Differential pressure switch, MBC 5180
| Ambient temperature range [°C] [max] | 85 °C |
|---|---|
| Ambient temperature range [°C] [min] | -10 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | 14 °F |
| Approval | ABSCCCCCSCEEACGLKRSLLC CDC EURO-TYSKLRLVDNKKRINARoHSRoHS ChinaTYSK |
| Burst pressure [bar] | 90 bar |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 VDC13=12 W, 125 V |
| Contains batteries | No |
| Diff.press.setting range [bar] [Max] | 5 bar |
| Diff.press.setting range [bar] [Min] | 0.3 bar |
| Diff.press.setting range [MPa] [Max] | 0.5 MPa |
| Diff.press.setting range [MPa] [Min] | 0.03 MPa |
| Diff.press.setting range [psi] [Max] | 72.5 psi |
| Diff.press.setting range [psi] [Min] | 4.3 psi |
| EAN | 5702423218721 |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| Gross weight | 0.369 Kilogram |
| Max. test pressure [bar] Pe | 68 bar |
| Max. test pressure [psig] | 986 psig |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 653 psig |
| Net weight | 0.368 Kilogram |
| Operat. range LP side [bar] Pe [Max] | 30 bar |
| Operat. range LP side [bar] Pe [Min] | 0 bar |
| Operat. range LP side [psig]Pe [Max] | 435 psig |
| Operat. range LP side [psig]Pe [Min] | 0 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Product accessories | Generic accessories |
| Product description | Diff. Pressure Switch |
| Product group | Switches and thermostats |
| Product Name Description | Differential pressure switch |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Relay release time [s] | 0 s |
| Reset function | Auto |
| SCIP dossier no. | 69958bd3-3b22-42dc-aa8a-888e92c5e7e8 |
| SCIP dossier product name | MBC 5100 5000 Pressure Switch |
| Serviceable | No |
| Specification key | 2031-1CB04 |
| Type | MBC 5180 |
| Volume | 0.989 Liter |
Frequently Asked Questions
How do I get pricing for 061B129066?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 061B129066?
061B129066 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 061B129066?
Key specifications include Ambient temperature range [°C] [max]: 85 °C; Ambient temperature range [°C] [min]: -10 °C; Ambient temperature range [°F] [Max]: 185 °F; Ambient temperature range [°F] [Min]: 14 °F. The full specification table on this page lists every published attribute for this part.
