Danfoss Pressure switch, MBC 5100
| Ambient temperature range [°C] [max] | 85 °C |
|---|---|
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ABSBVCCCCCSCECMIMDNVEACGLKRSLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSK |
| Burst pressure [bar] | 30 bar |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 VDC13=12 W, 125 V |
| Contains batteries | No |
| Diff.@Max. range setting [bar] | 0.6 bar |
| Diff.@Min. range setting [bar] | 0.4 bar |
| EAN | 5702423218486 |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| Gross weight | 0.296 Kilogram |
| Max. test pressure [bar] Pe | 15 bar |
| Max. test pressure [psig] | 218 psig |
| Max. Working Pressure [bar] | 15 bar |
| Max. Working Pressure [psig] | 220 psig |
| Net weight | 0.25 Kilogram |
| Packing format | Multi pack |
| Pressure connection notes | With flange |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure switch |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Quantity per packing format | 32 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [Max] | 10 bar |
| Regulation range [bar] Pe [Min] | -0.2 bar |
| Regulation range [MPa] Pe [Max] | 1 MPa |
| Regulation range [MPa] Pe [Min] | -0.02 MPa |
| SCIP dossier no. | 69958bd3-3b22-42dc-aa8a-888e92c5e7e8 |
| SCIP dossier product name | MBC 5100 5000 Pressure Switch |
| Serviceable | No |
| Specification key | 1411-1DB04 |
| Type | MBC 5100 |
| Volume | 0.647 Liter |
Frequently Asked Questions
How do I get pricing for 061B000266?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 061B000266?
061B000266 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 061B000266?
Key specifications include Ambient temperature range [°C] [max]: 85 °C; Ambient temperature range [°C] [min]: -40 °C; Ambient temperature range [°F] [Max]: 185 °F; Ambient temperature range [°F] [Min]: -40 °F. The full specification table on this page lists every published attribute for this part.
How quickly can 061B000266 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

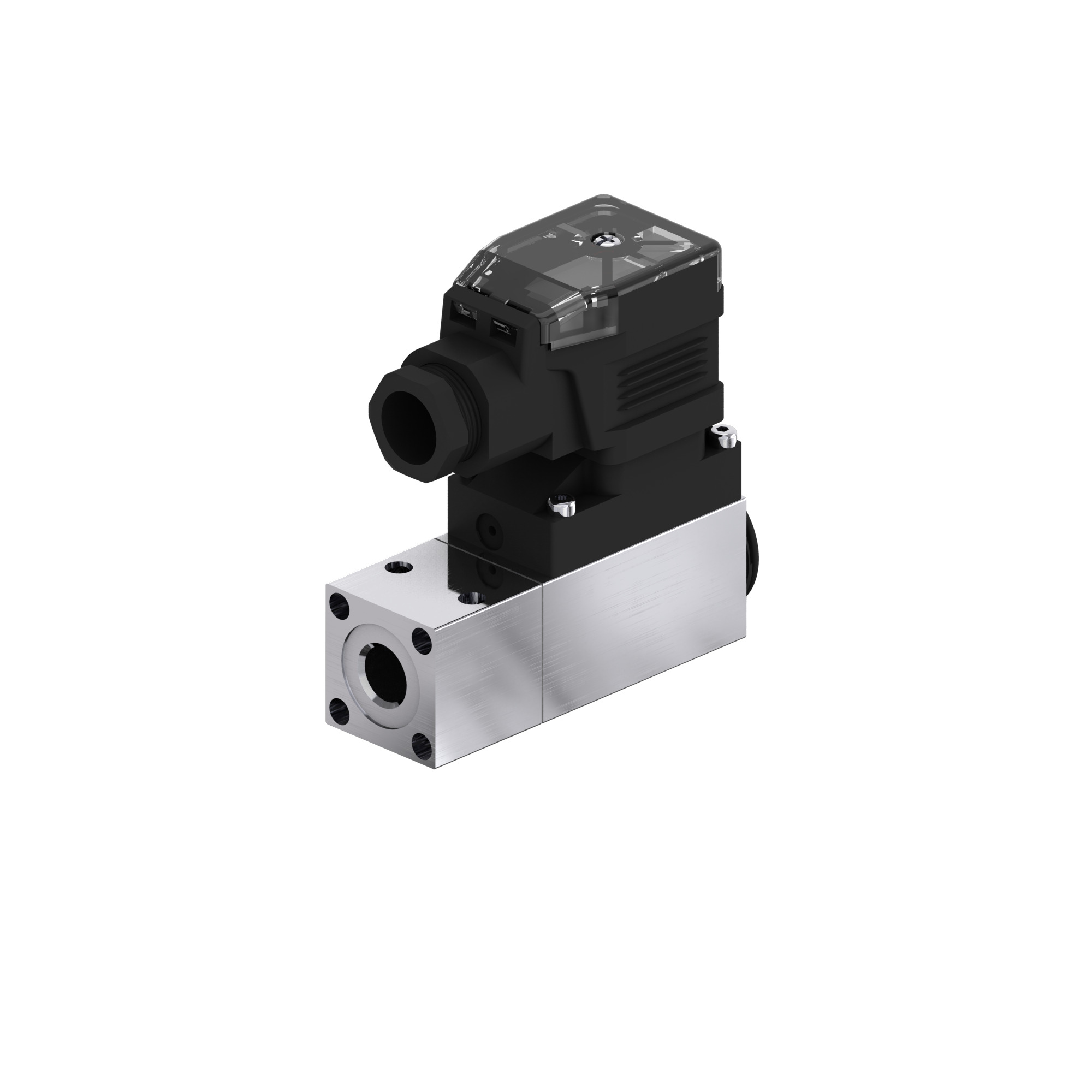

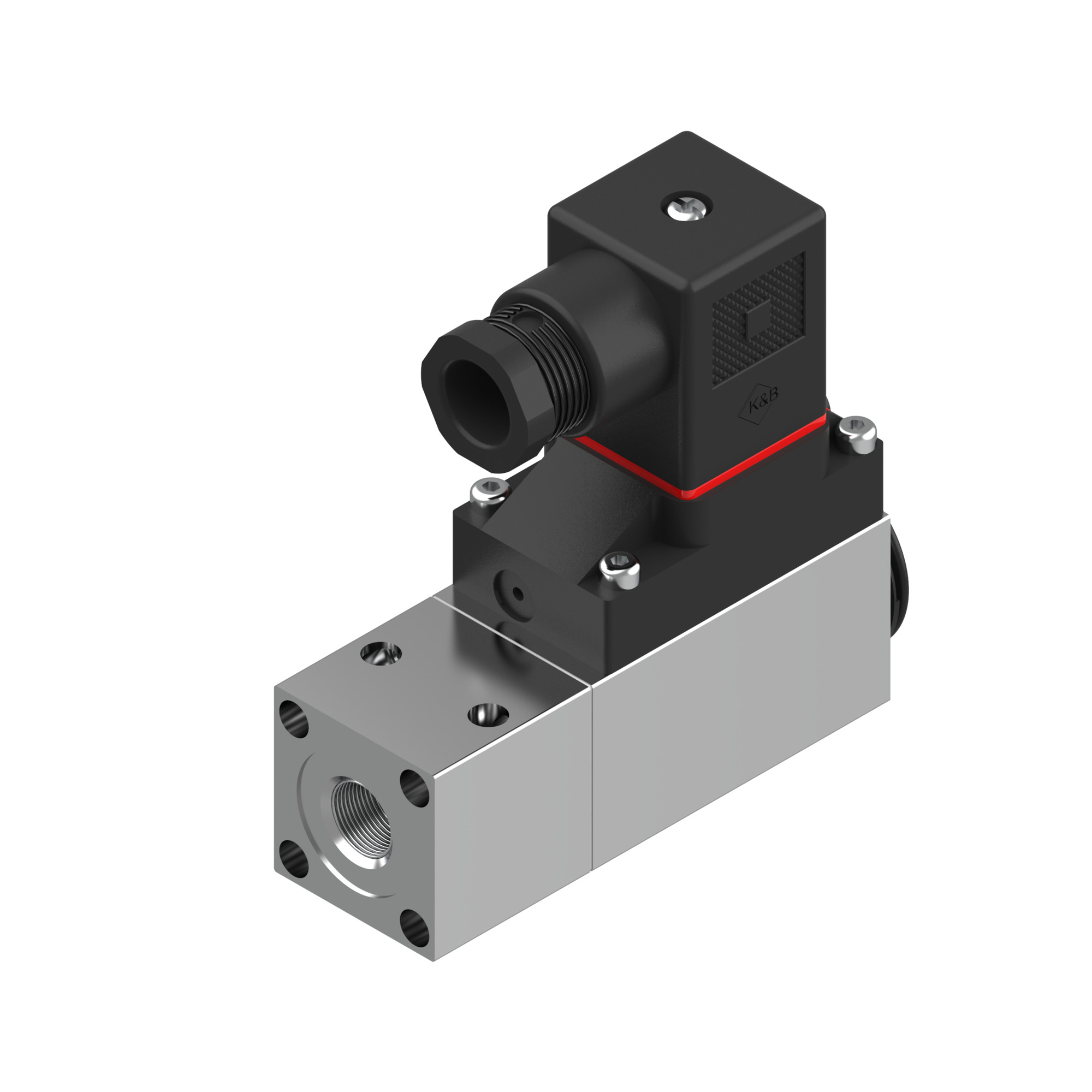

Danfoss Danfoss Pressure switch, MBC 5100
