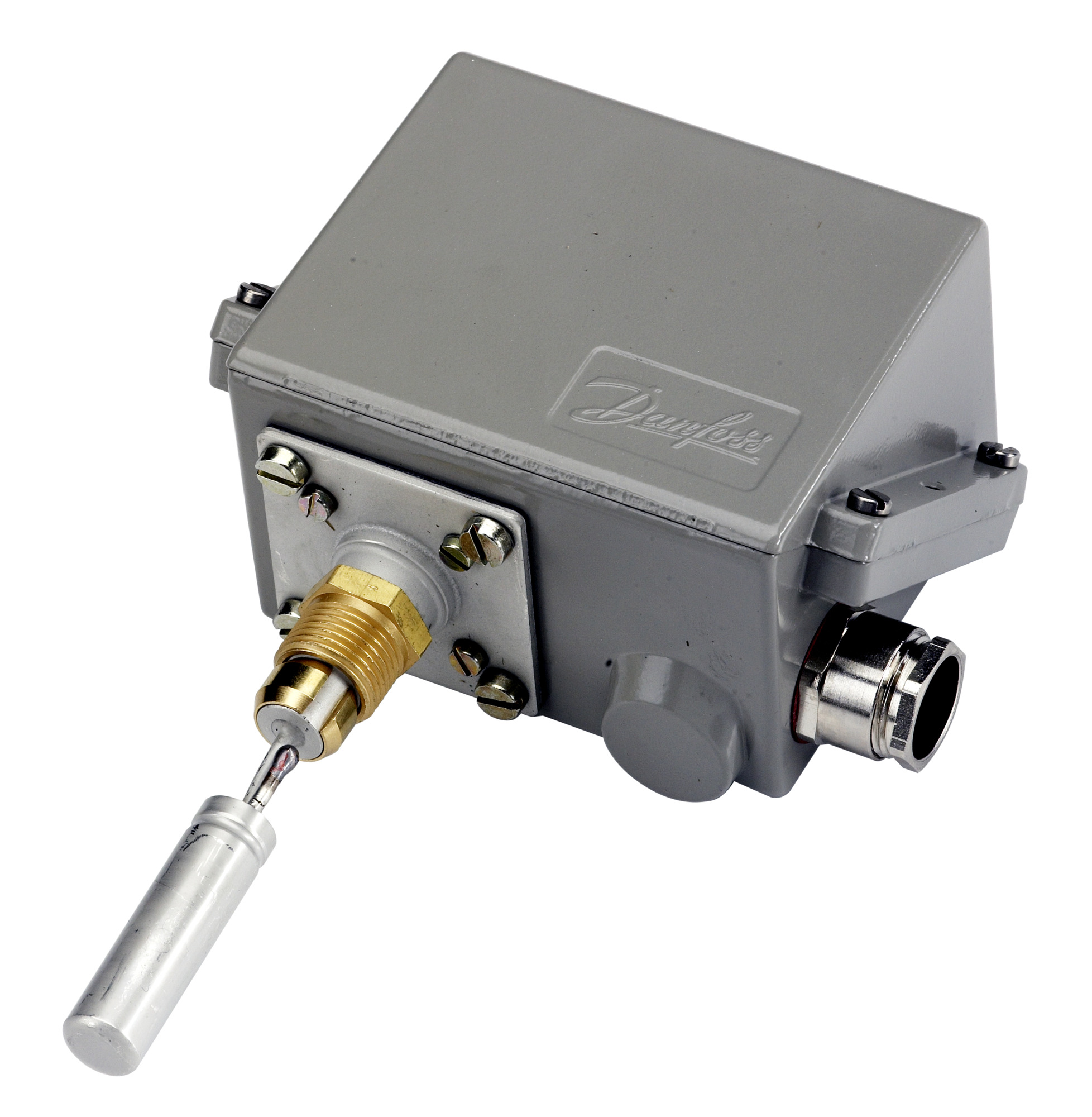

Danfoss Thermostat, KPS79
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
|---|---|
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ABSBVCCCCCSCEDNVEACGLLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKUL |
| CE evaluated | Yes |
| Charge type | Adsorption |
| China RoHS compliance | Yes |
| Connection for pocket or hose | M 18 x 1.5 |
| Contact function | SPDT gold |
| Contact rating | AC15=4 A, 440 VAC1=10 A, 440 VAC3=6 A, 440 VDC13=12 W, 220 Vfor gold 1…30mA, 5...30V |
| Contains batteries | No |
| Diff. @ Min. range setting [K] [Max] | 16 K |
| Diff. @ Min. range setting [K] [Min] | 4 K |
| Diff. @ Min. range setting[°C] [Max] | 16 °C |
| Diff. @ Min. range setting[°C] [Min] | 4 °C |
| Differential type | Adjustable |
| EAN | 5702423147571 |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-5 |
| EN 60947 electrical properties | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Out of scope |
| Gross weight | 0.912 Kilogram |
| Max. sensor temperature [°C] | 200 °C |
| Max. sensor temperature [°F] | 392 °F |
| Net weight | 0.814 Kilogram |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product group | Switches and thermostats |
| Product Name Description | Thermostat |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1)Cadmium oxide (CAS no.1306-19-0) |
| Reset function | Auto |
| SCIP dossier no. | c1a694ec-501f-43db-83d2-8a9a314459e0 |
| SCIP dossier product name | KP KPS KPU Thermostat |
| Sensor pocket length min. [in] | 4 3/8 in |
| Sensor pocket length min. [mm] | 110 mm |
| Sensor size (Ø x L) [in] | 1/2 x 2 1/2 in |
| Sensor size (Ø x L) [mm] | 13 x 63 mm |
| Sensor type | Rigid Sensor |
| Serviceable | No |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | 50 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | 122 °F |
| Type | KPS79 |
| UL approval file name | E73170 |
| UL evaluated | Yes |
| Volume | 3.684 Liter |
