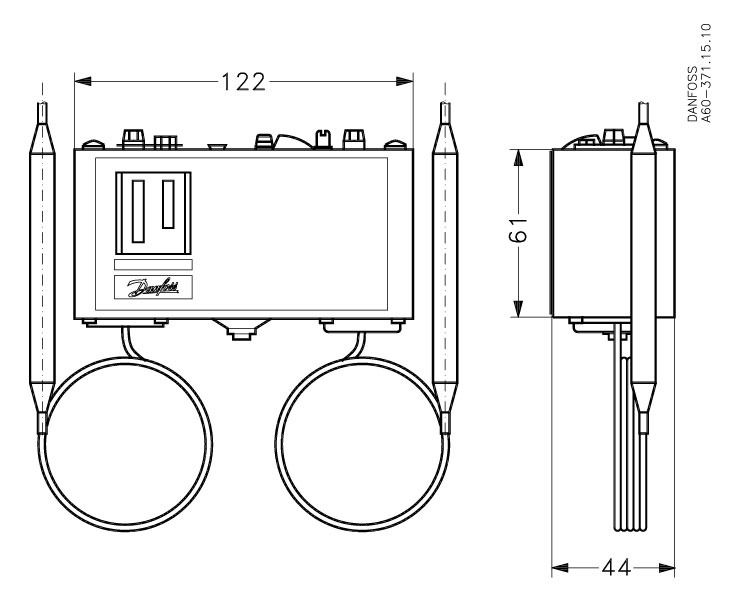

Danfoss Thermostat, KP98
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
|---|---|
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 150 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CCCCECMIMEACLLC CDC EURO-TYSKLVDRINARMRSRoHS Chinac UL us UL873, CS C22.2 |
| Cap. tube length fraction [in] | 39 3/8 in |
| Capillary tube length [mm] | 1000 mm |
| CE evaluated | Yes |
| Charge type | Adsorption |
| China RoHS compliance | Yes |
| Contact function | 2 SPST(NC) |
| Contact rating | AC15=10 A, 400 VAC1=16 A, 400 VAC3=16 A, 400 VDC13=12 W, 220 VLR=112 A, 400 V |
| Contains batteries | No |
| Diff. @ Max. range setting [K] | 14 K |
| Diff. @ Max. range setting[°C] | 14 °C |
| Diff. @ Min. range setting [K] | 14 K |
| Diff. @ Min. range setting[°C] | 14 °C |
| Differential type | FIXED |
| EAN | 5702428016490 |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| Electrical spec. standard | EN 60947-5 |
| EN 60947 electrical properties | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Equipment | Right side cap.tube 2 m |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gross weight | 0.686 Kilogram |
| Max. sensor temperature [°C] | 150 °C |
| Max. sensor temperature [°F] | 302 °F |
| Net weight | 0.62 Kilogram |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product group | Switches and thermostats |
| Product Name Description | Thermostat |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1)Cadmium oxide (CAS no.1306-19-0) |
| Reset function | Manual Max |
| Reset function, left side | Manual Max |
| Reset function, right side | Manual Max |
| SCIP dossier no. | bdec1120-10ae-4982-b134-70681fd73d7b |
| SCIP dossier product name | KP KPS KPU Thermostat with Zink |
| Sensor size (Ø x L) [in] | 3/8 x 4 1/2 in |
| Sensor size (Ø x L) [mm] | 9.5 x 115 mm |
| Sensor type | Remote bulb |
| Serviceable | No |
| Temp. range left side [°C] [Max] | 120 °C |
| Temp. range left side [°C] [Min] | 60 °C |
| Temp. range left side [°F] [Max] | 250 °F |
| Temp. range left side [°F] [Min] | 140 °F |
| Temp. range right side [°C] [Max] | 180 °C |
| Temp. range right side [°C] [Min] | 100 °C |
| Temp. range right side [°F] [Max] | 350 °F |
| Temp. range right side [°F] [Min] | 210 °F |
| Type | KP98 |
| UL approval file name | E31024 |
| UL evaluated | Yes |
| Volume | 1.993 Liter |
Frequently Asked Questions
How do I get pricing for 060L113166?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 060L113166?
060L113166 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 060L113166?
Key specifications include Amb. Temp. Note: 80 °C/176 °F for max 120 min; Ambient temperature range [°C] [max]: 65 °C; Ambient temperature range [°C] [min]: -40 °C; Ambient temperature range [°F] [Max]: 150 °F. The full specification table on this page lists every published attribute for this part.
How quickly can 060L113166 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

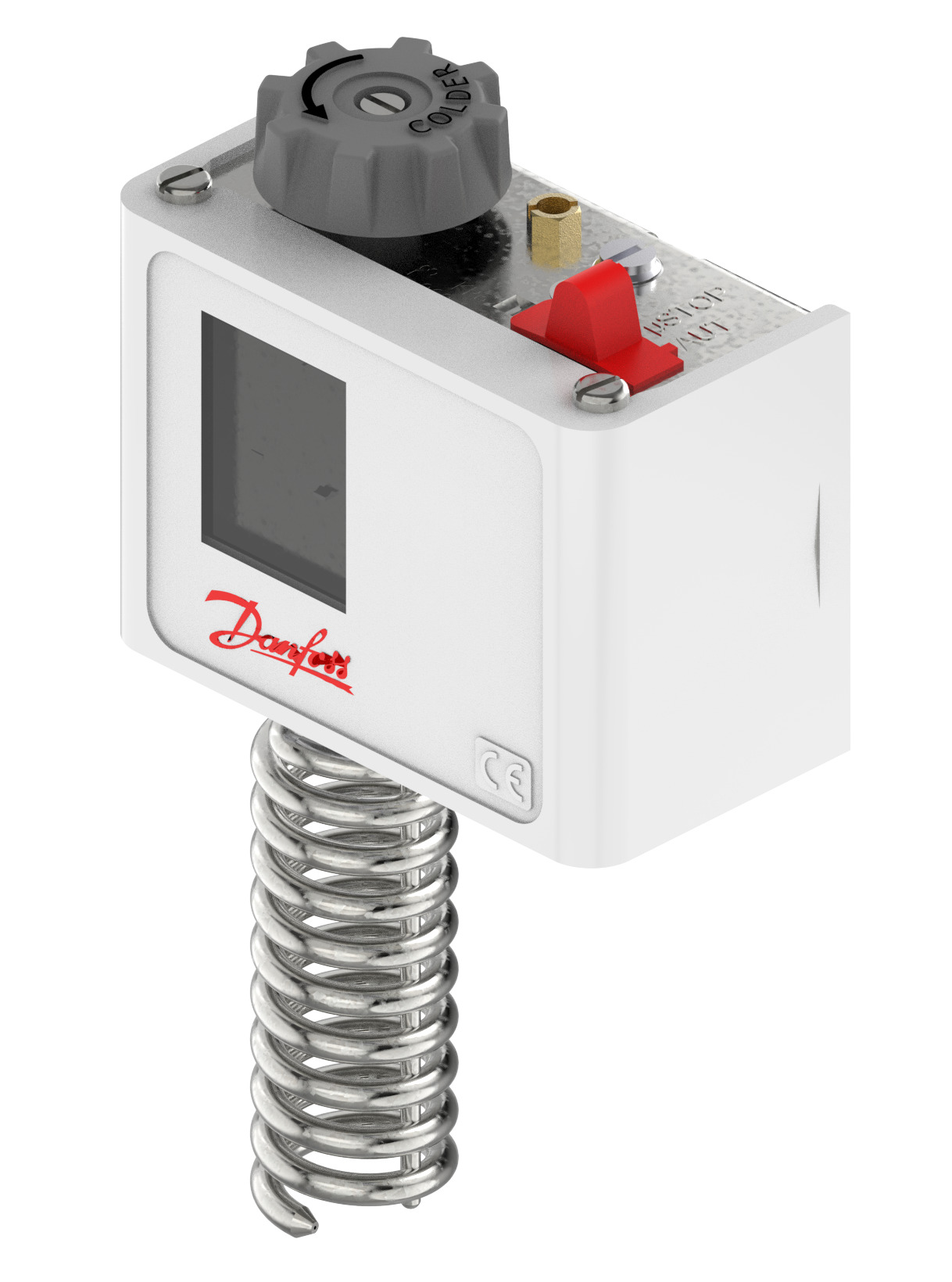

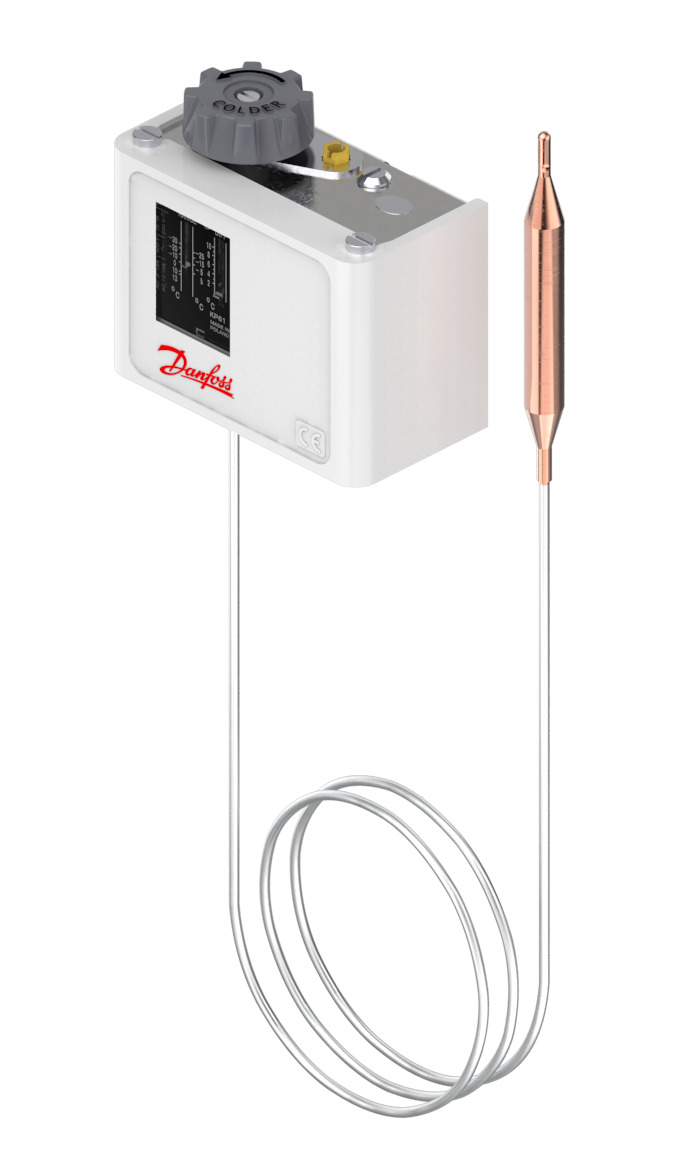

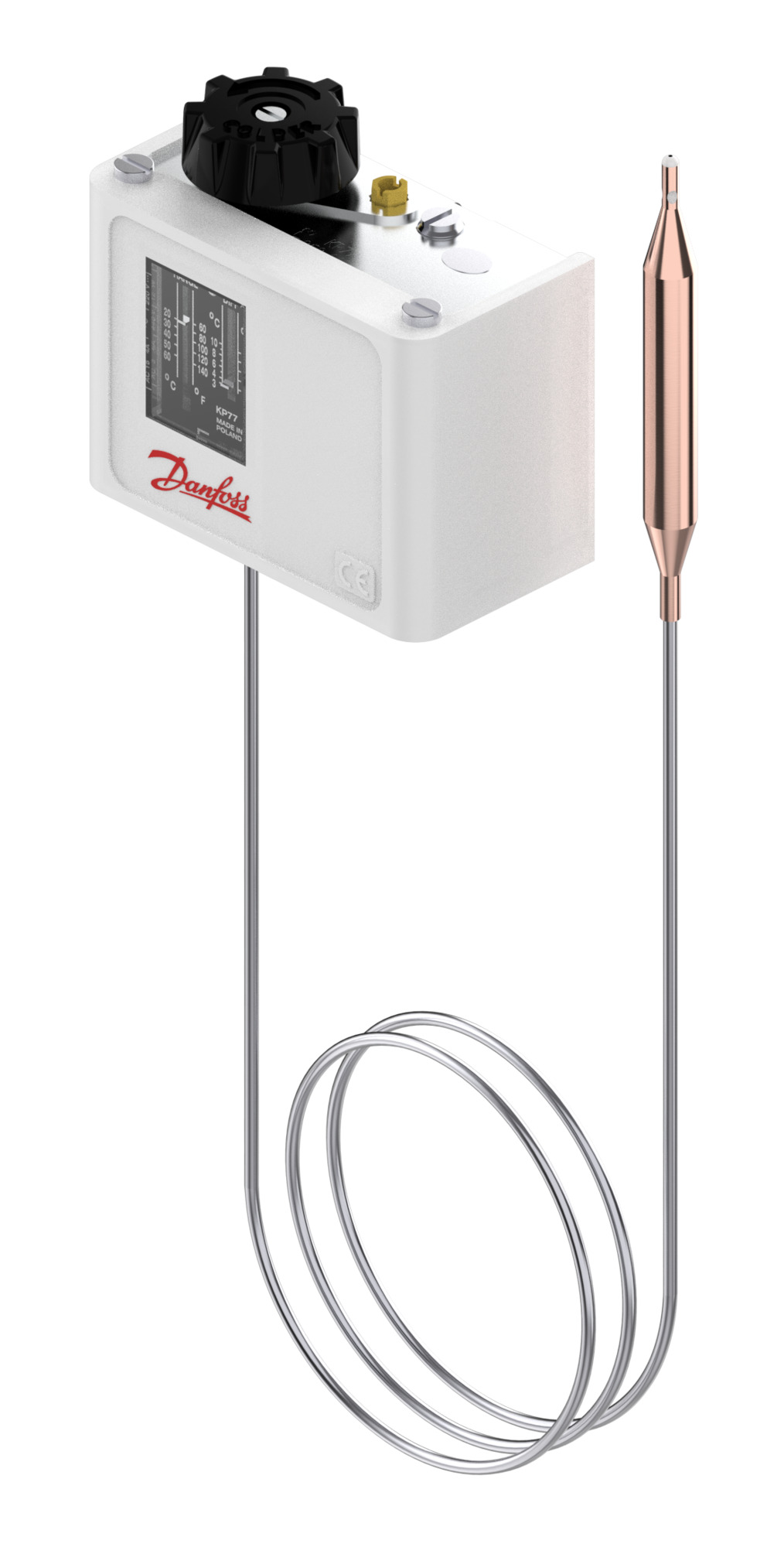

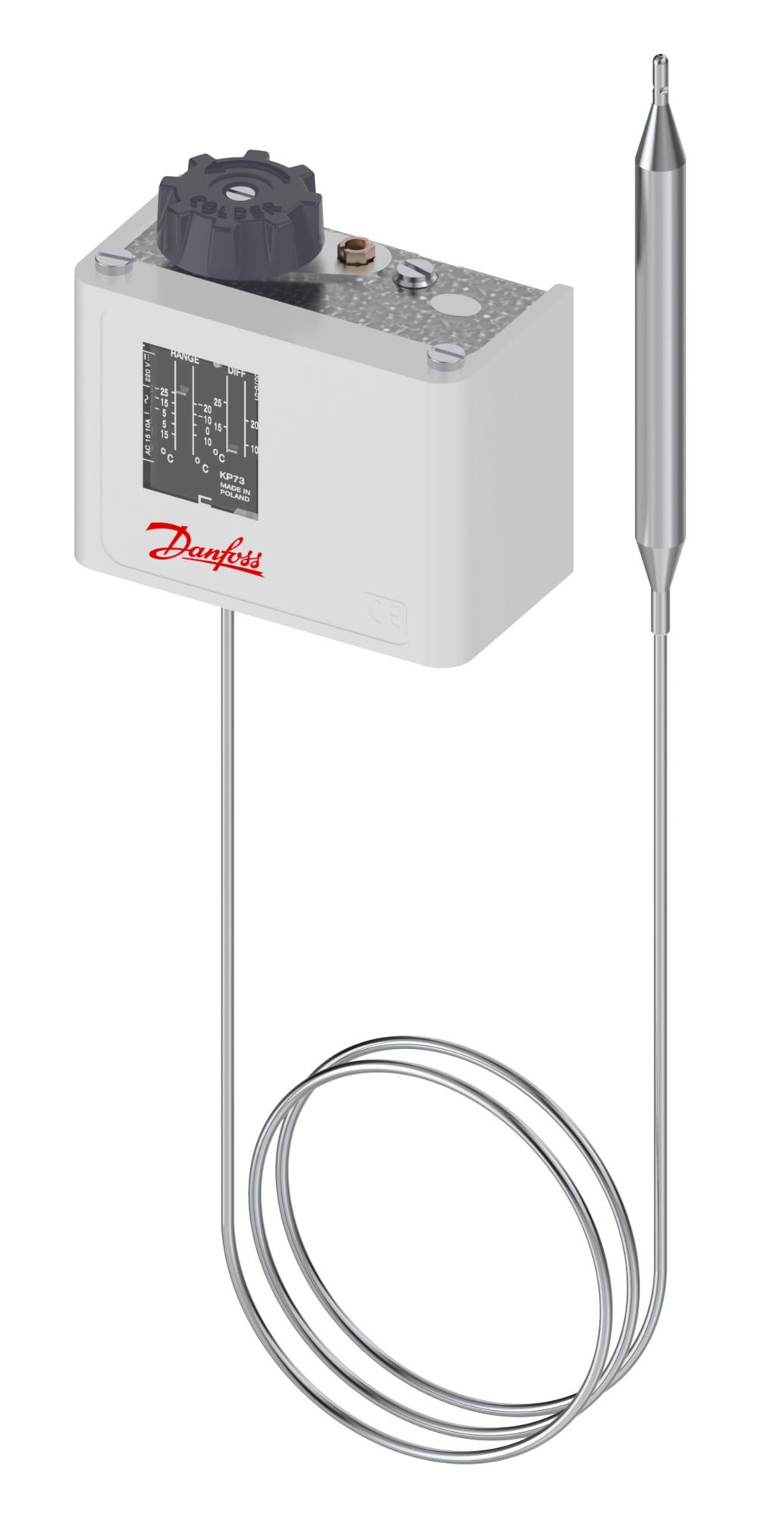

Danfoss Danfoss Thermostat, KP79
