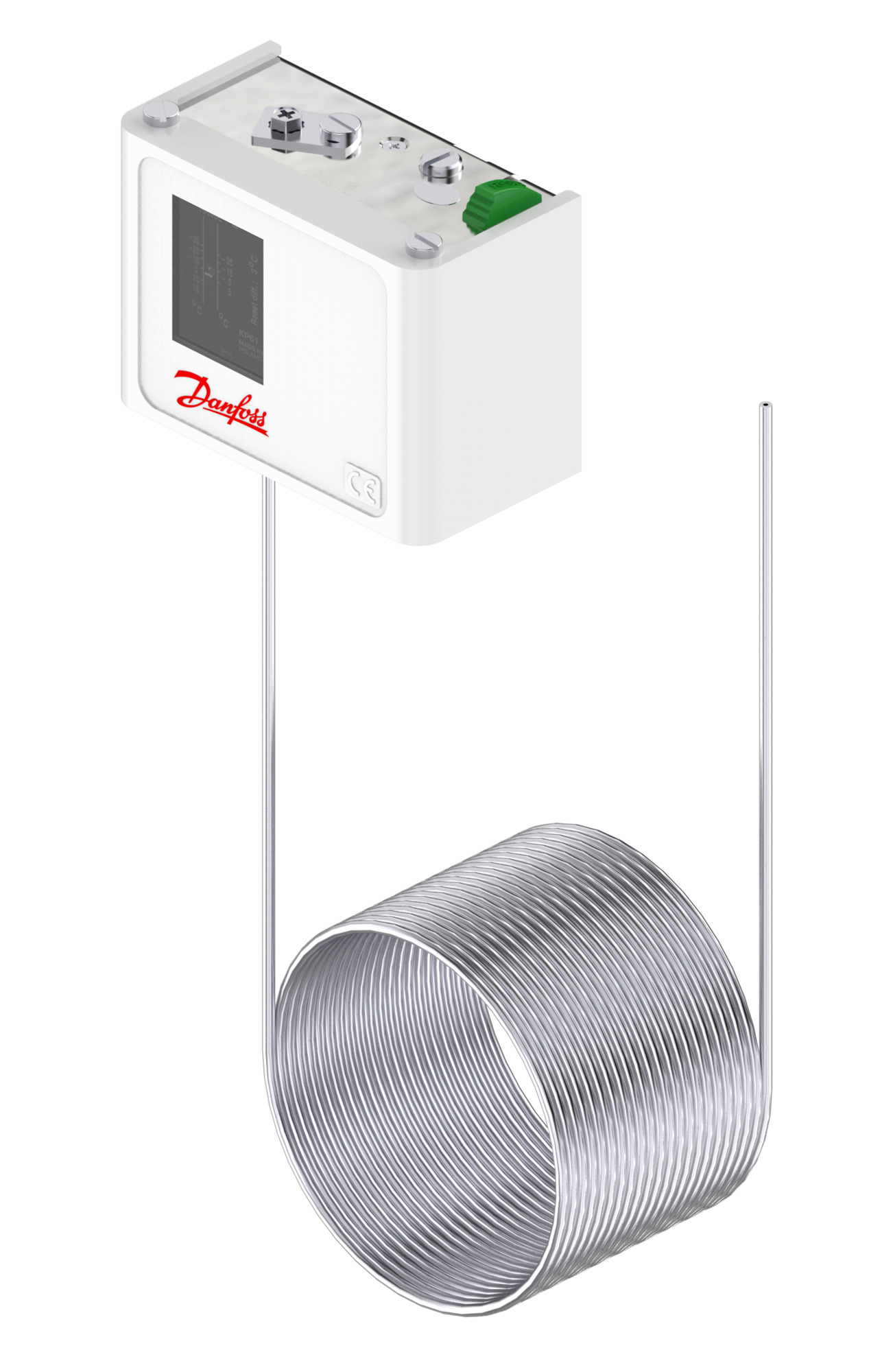

Danfoss Thermostat, KP61
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
|---|---|
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 150 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | BVCCCCECMIMDNVEACGLLLC CDC EURO-TYSKLRLVDRINARMRSRoHS Chinac UL us UL873, CS C22.2 |
| Cap. tube length fraction [in] | 196 7/8 in |
| Capillary tube length [mm] | 5000 mm |
| CE evaluated | Yes |
| Charge type | Vapour |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 VAC1=16 A, 400 VAC3=16 A, 400 VDC13=12 W, 220 VLR=112 A, 400 V |
| Contains batteries | No |
| Diff. @ Max. range setting [K] | 2 K |
| Diff. @ Max. range setting[°C] | 2 °C |
| Diff. @ Min. range setting [K] | 6 K |
| Diff. @ Min. range setting[°C] | 6 °C |
| Differential type | FIXED |
| EAN | 5702428014519 |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| Electrical spec. standard | EN 60947-5 |
| EN 60947 electrical properties | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gross weight | 0.52 Kilogram |
| Max. sensor temperature [°C] | 120 °C |
| Max. sensor temperature [°F] | 248 °F |
| Net weight | 0.456 Kilogram |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product group | Switches and thermostats |
| Product Name Description | Thermostat |
| Quantity per packing format | 14 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1)Cadmium oxide (CAS no.1306-19-0) |
| Reset function | Manual Min |
| SCIP dossier no. | c1a694ec-501f-43db-83d2-8a9a314459e0 |
| SCIP dossier product name | KP KPS KPU Thermostat |
| Sensor size (Ø x L) [in] | 1/10 x 19 5/8 in |
| Sensor size (Ø x L) [mm] | 2.5 x 500 mm |
| Sensor type | Capillary tube sensor |
| Serviceable | No |
| Temperature range [°C] [Max] | 15 °C |
| Temperature range [°C] [Min] | -30 °C |
| Temperature range [°F] [Max] | 59 °F |
| Temperature range [°F] [Min] | -22 °F |
| Type | KP61 |
| UL approval file name | E31024 |
| UL evaluated | Yes |
| Volume | 1.468 Liter |
Frequently Asked Questions
How do I get pricing for 060L110466?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 060L110466?
060L110466 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 060L110466?
Key specifications include Amb. Temp. Note: 80 °C/176 °F for max 120 min; Ambient temperature range [°C] [max]: 65 °C; Ambient temperature range [°C] [min]: -40 °C; Ambient temperature range [°F] [Max]: 150 °F. The full specification table on this page lists every published attribute for this part.
How quickly can 060L110466 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
