Danfoss Pressure transmitter, AKS 2050, -1 bar - 59 bar, -14.5 psi - 855.5 psi
Ships Same Day*
Worldwide Shipping
| - common | Pin 2 |
|---|---|
| + output | Pin 3 |
| + supply | Pin 1 |
| Accuracy, max. +/- FS [%] | 1 % |
| Accuracy, typical +/- FS [%] | 0.5 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ATEXC UL US UL RecognizedCE |
| Approval comments | ATEX Ex ec IIA T4 Gc |
| Approval standard | E227388E31024 |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [Max] | 40 °C |
| Compensated temp. range [°C] [Min] | -30 °C |
| Compensated temp. range [°F] [Max] | 104 °F |
| Compensated temp. range [°F] [Min] | -22 °F |
| Contains batteries | No |
| EAN | 5702428523189 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male |
| Electrical connection | Angular connector |
| Electrical connection size | 4 pin |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flush diaphragm | No |
| Gross weight | 0.128 Kilogram |
| High Clipping Level | 98 |
| Identical product | 060G6408 |
| In scope of WEEE | Yes |
| International Article Number | 5702428523189 |
| Intrinsically safe | No |
| Low Clipping Level | 4 |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 185 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Net weight | 0.117 Kilogram |
| Non-linearity BFSL ±FS [%] | 0.2 % |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 100 bar |
| Packing format | Industrial pack |
| Pressure connection size | 3/8 |
| Pressure connection standard | none |
| Pressure connection type | Solder, ODF |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 59 bar |
| Pressure range [bar] [Min] | -1 bar |
| Pressure range [psi] [Max] | 855.5 psi |
| Pressure range [psi] [Min] | -14.5 psi |
| Pressure unit reference | Sealed gauge |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | Yes |
| Quantity per packing format | 28 pc |
| Ratiometric of Vsupply [%] [Max] | 90 % |
| Ratiometric of Vsupply [%] [Min] | 10 % |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| SCIP dossier product name | AKS/MBS |
| Specification key | AKS 2050-9536-A0EB08-0 |
| Supply voltage [V] DC [max] | 5.5 V |
| Supply voltage [V] DC [min] | 4.5 V |
| Type | AKS 2050 |
| UL evaluated | Yes |
| Volume | 0.246 Liter |
Frequently Asked Questions
How do I get pricing for 060G4577?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 060G4577?
060G4577 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 060G4577?
Key specifications include - common: Pin 2; + output: Pin 3; + supply: Pin 1; Accuracy, max. +/- FS [%]: 1 %. The full specification table on this page lists every published attribute for this part.
How quickly can 060G4577 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Danfoss Danfoss Pressure transmitter, AKS 32R, -1 bar - 34…
SKU: 060G3552
Same-day dispatch*

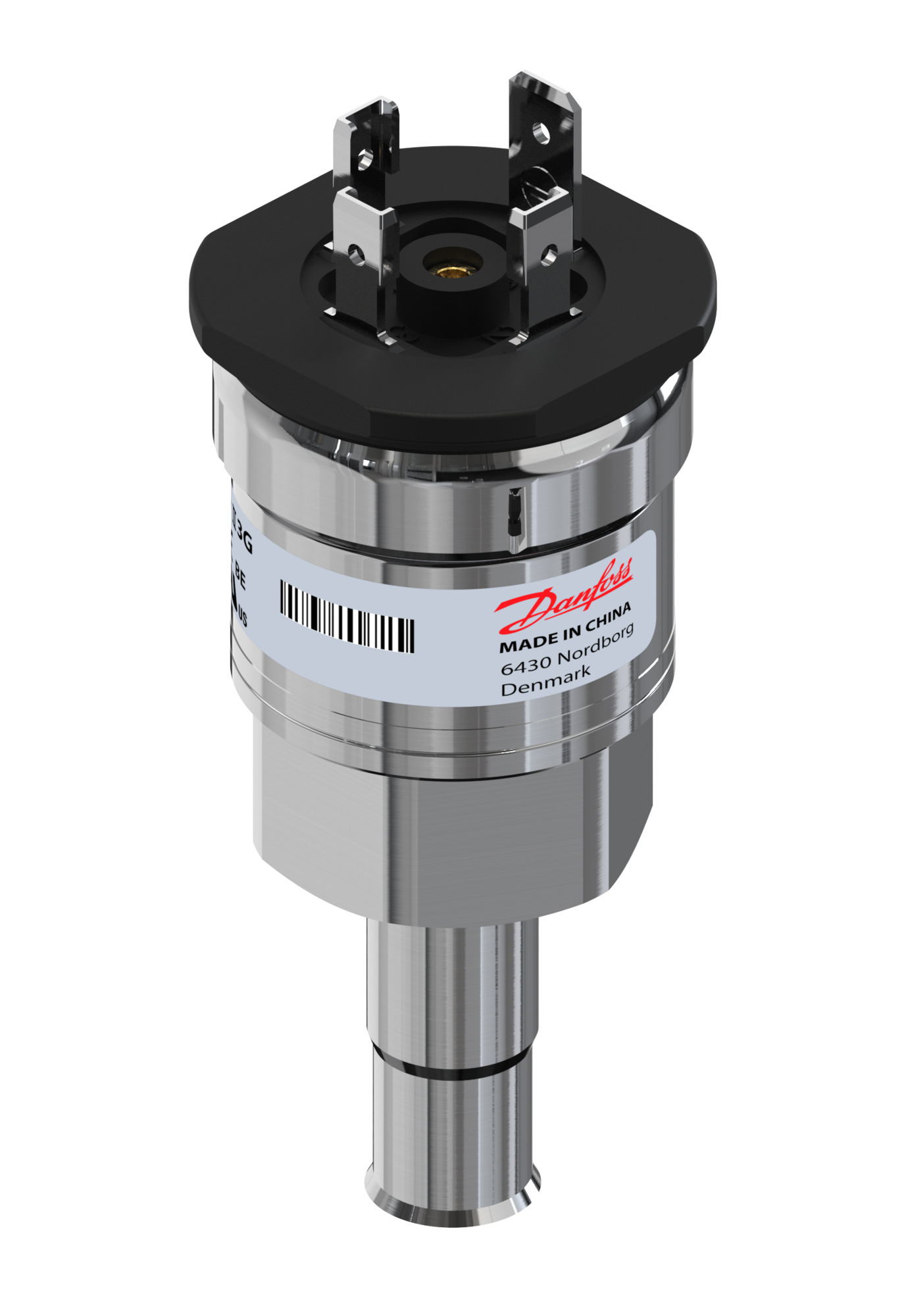

Danfoss Danfoss Pressure transmitter, AKS 32R, -1 bar - 12…
SKU: 060G3551
Same-day dispatch*

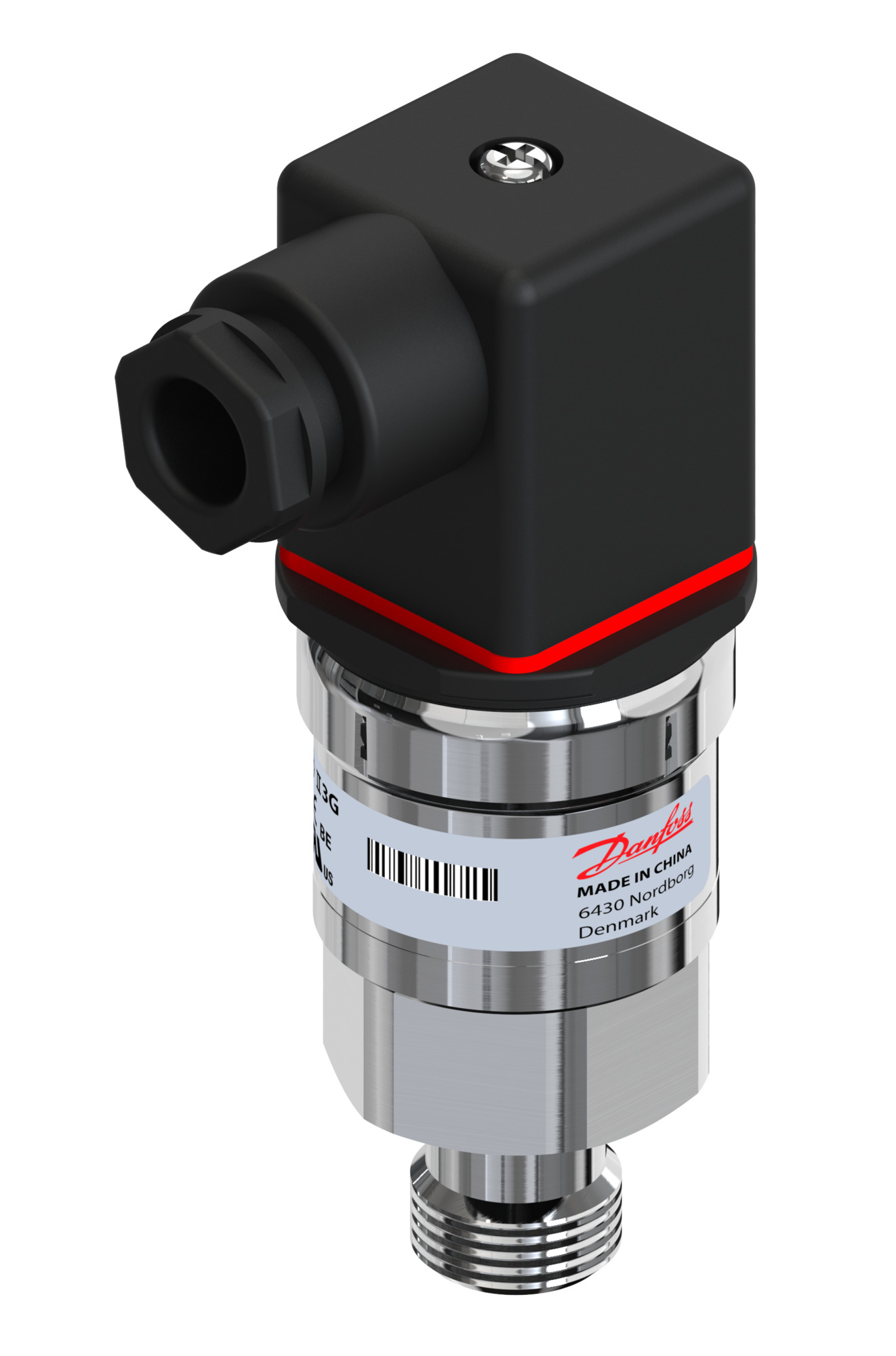

Danfoss Danfoss Pressure transmitter, AKS 2050, -1 bar - 25…
SKU: 060G1055
Same-day dispatch*

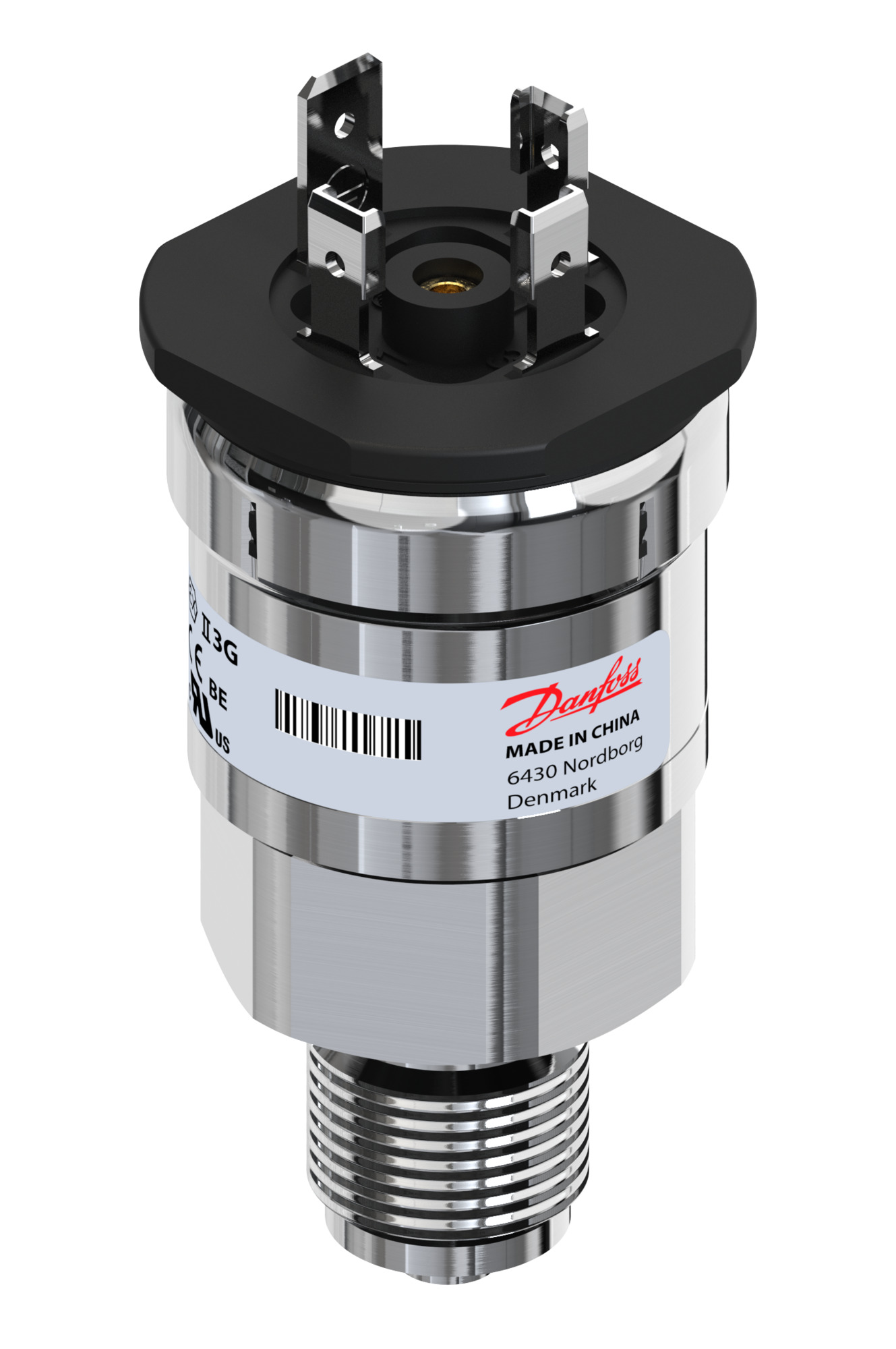

Danfoss Danfoss Pressure transmitter, AKS 32R, -1 bar - 12…
SKU: 060G1038
Same-day dispatch*

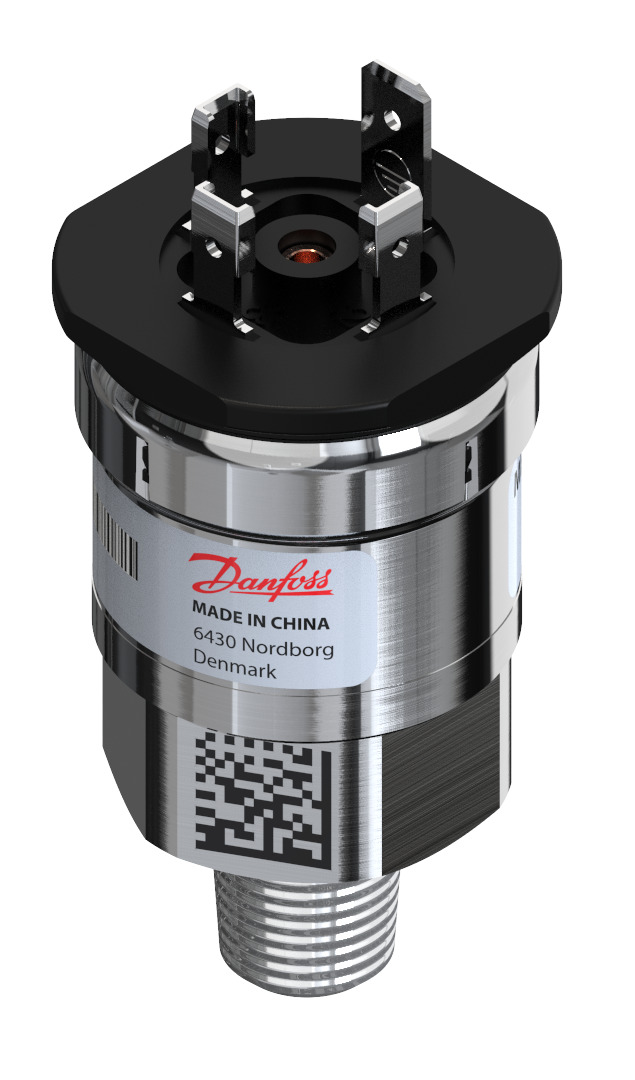

Danfoss Danfoss Pressure transmitter, AKS 32R, -1 bar - 12…
SKU: 060G1037
Same-day dispatch*

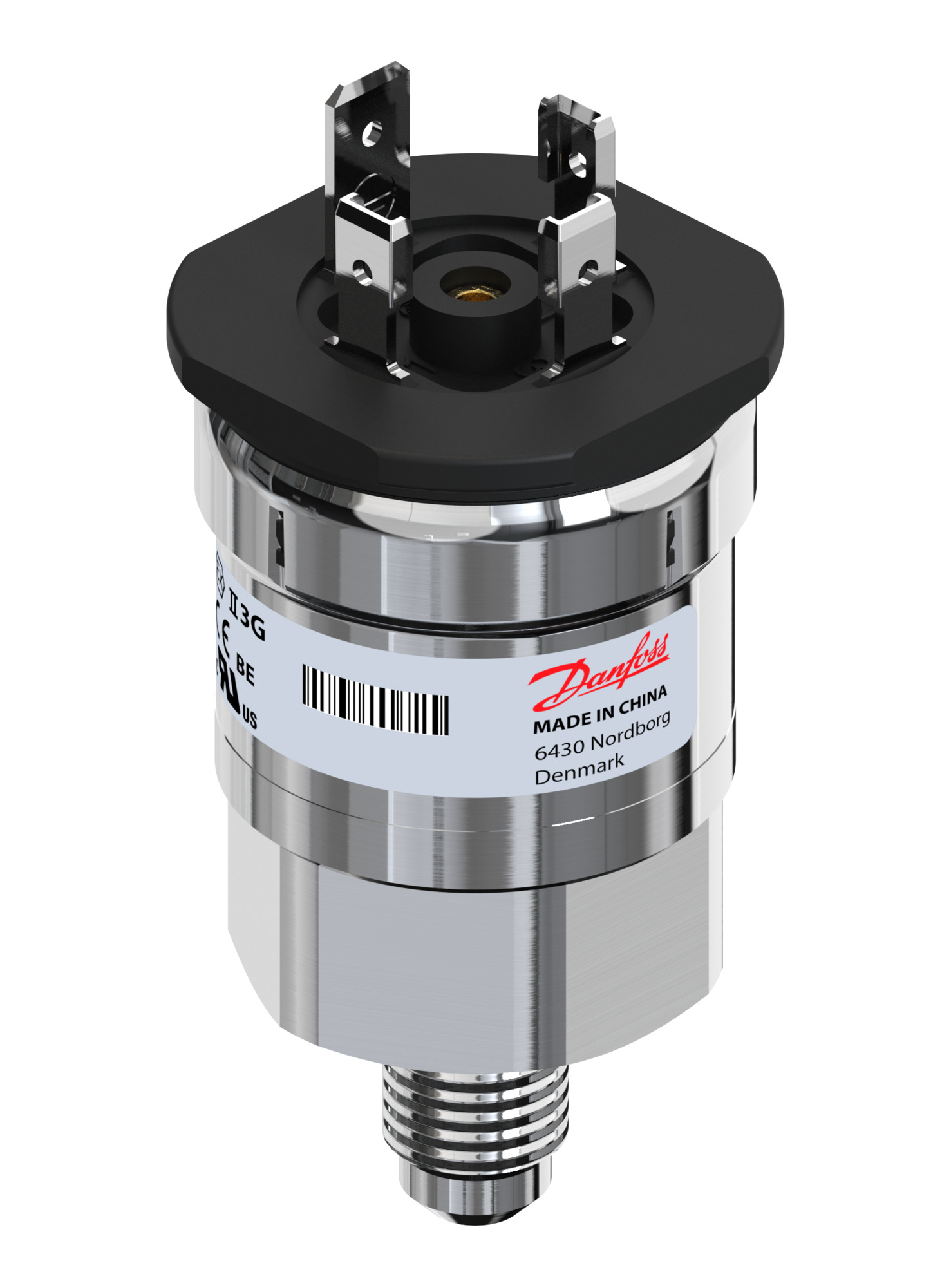

Danfoss Danfoss Pressure transmitter, AKS 32R, -1 bar - 12…
