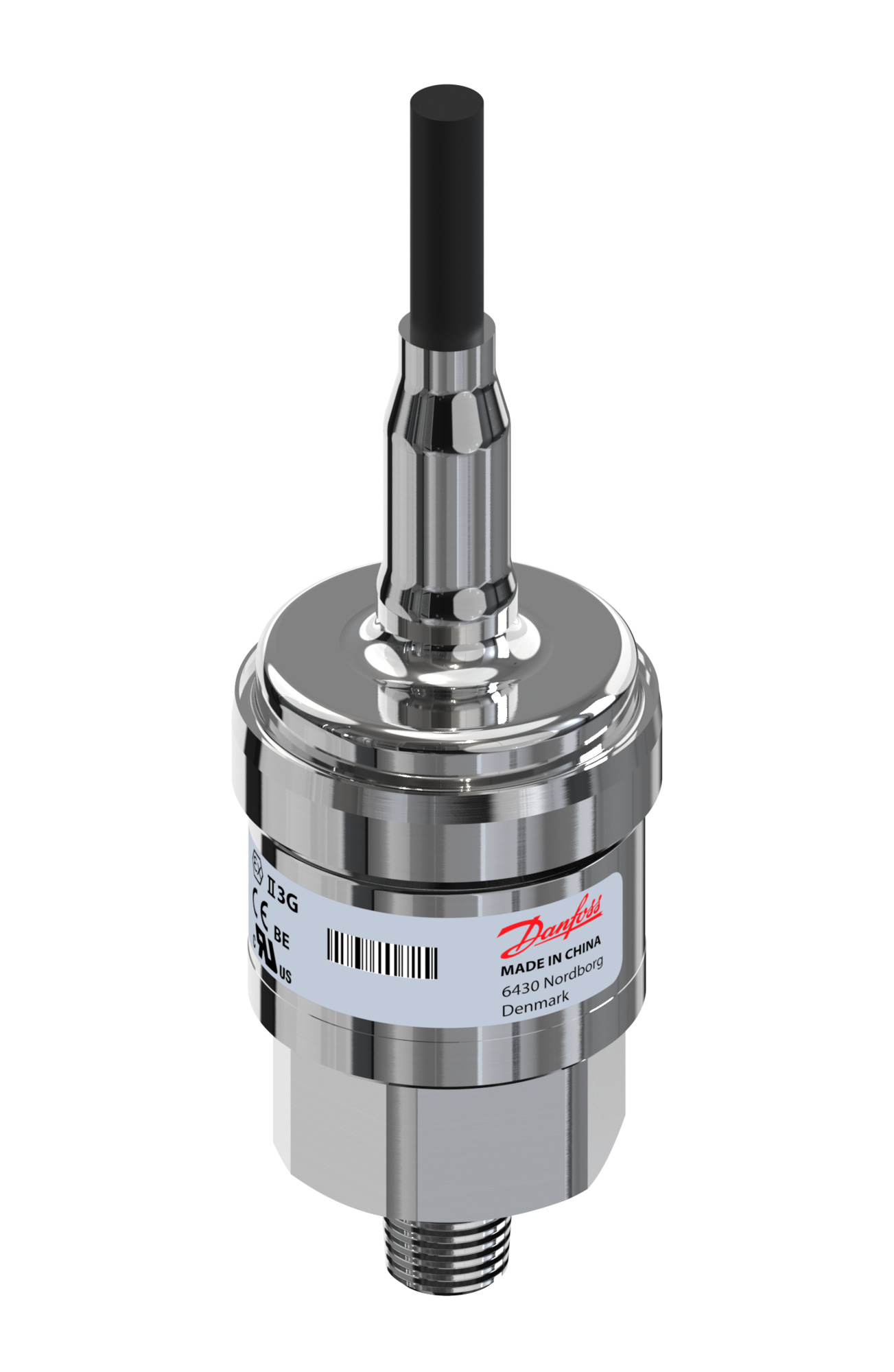

Danfoss Pressure transmitter, AKS 32, 0 bar - 6.9 bar, 0 psi - 100 psi
Ships Same Day*
Worldwide Shipping
| - common | Black |
|---|---|
| + output | White |
| + supply | Red |
| Accuracy, max. +/- FS [%] | 0.8 % |
| Accuracy, typical +/- FS [%] | 0.3 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ATEXC UL US UL RecognizedCEGOST POCC |
| Approval comments | ATEX Ex ec IIA T4 Gc |
| Approval standard | 6967179E227388E31024 |
| Cable length [in] | 315 in |
| Cable length [m] | 8 m |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [Max] | 40 °C |
| Compensated temp. range [°C] [Min] | -30 °C |
| Compensated temp. range [°F] [Max] | 104 °F |
| Compensated temp. range [°F] [Min] | -22 °F |
| Contains batteries | No |
| EAN | 5702423205424 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Screened |
| Electrical connection | Cable |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flush diaphragm | No |
| Gross weight | 0.58 Kilogram |
| High Clipping Level | 6.75 |
| In scope of WEEE | Yes |
| International Article Number | 5702423205424 |
| Intrinsically safe | No |
| Low Clipping Level | 0.1 |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 185 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Net weight | 0.512 Kilogram |
| Non-linearity BFSL ±FS [%] | 0.2 % |
| Output signal | Voltage |
| Output signal [V] [Max] | 6 V |
| Output signal [V] [Min] | 1 V |
| Overload pressure max. [psi] | 400 psi |
| Packing format | Multi pack |
| Pressure connection size | 1/8-27 |
| Pressure connection standard | ANSI/ASME B1.20.1 |
| Pressure connection type | NPT |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 6.9 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 100 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure unit reference | Sealed gauge |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| SCIP dossier product name | AKS/MBS |
| Specification key | AKS 32-5834-B1AC02-0 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| Type | AKS 32 |
| UL evaluated | Yes |
| Volume | 2.507 Liter |
Frequently Asked Questions
How do I get pricing for 060G1889?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 060G1889?
060G1889 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 060G1889?
Key specifications include - common: Black; + output: White; + supply: Red; Accuracy, max. +/- FS [%]: 0.8 %. The full specification table on this page lists every published attribute for this part.
How quickly can 060G1889 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

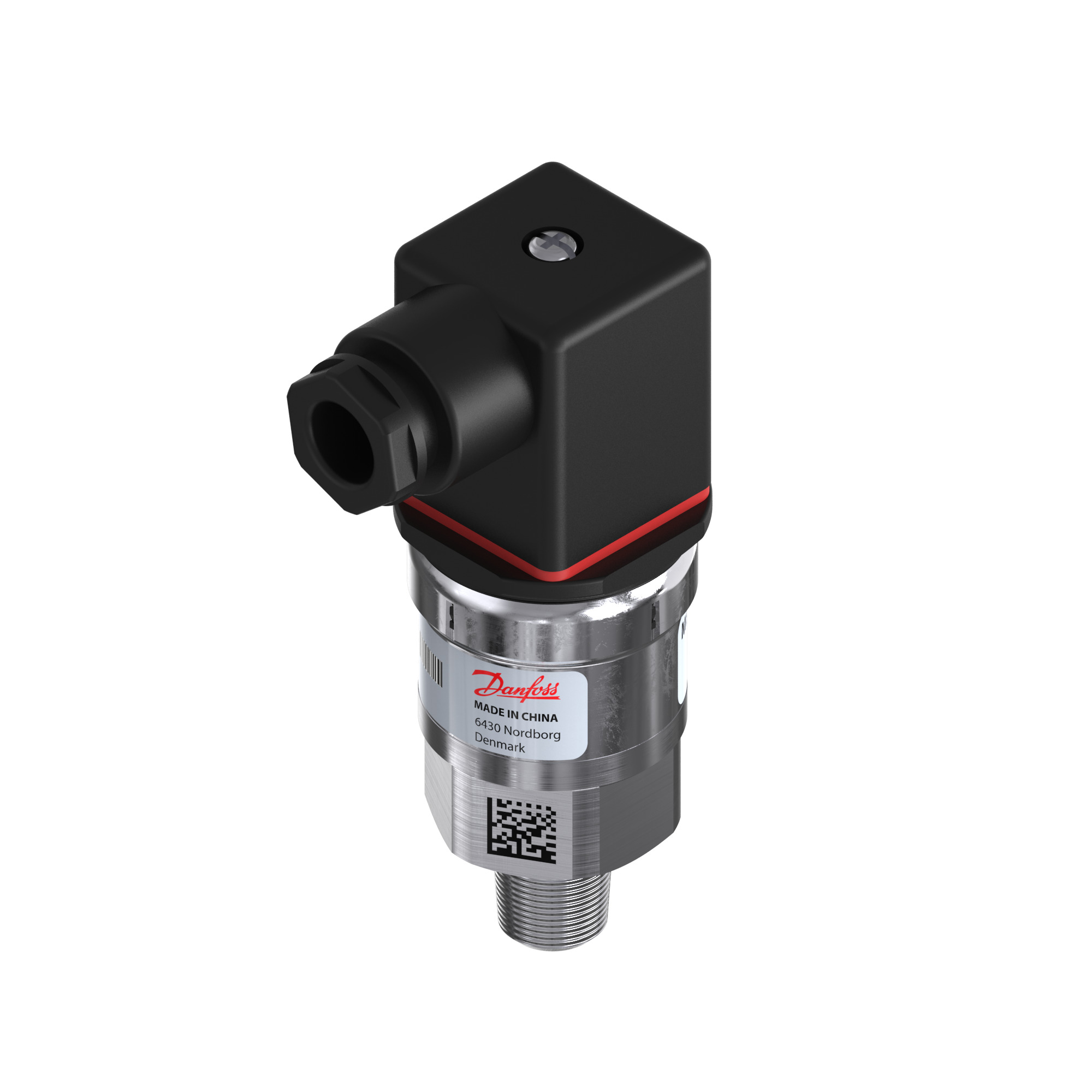

Danfoss Danfoss Pressure transmitter, AKS 33, 0 bar - 34.5…
