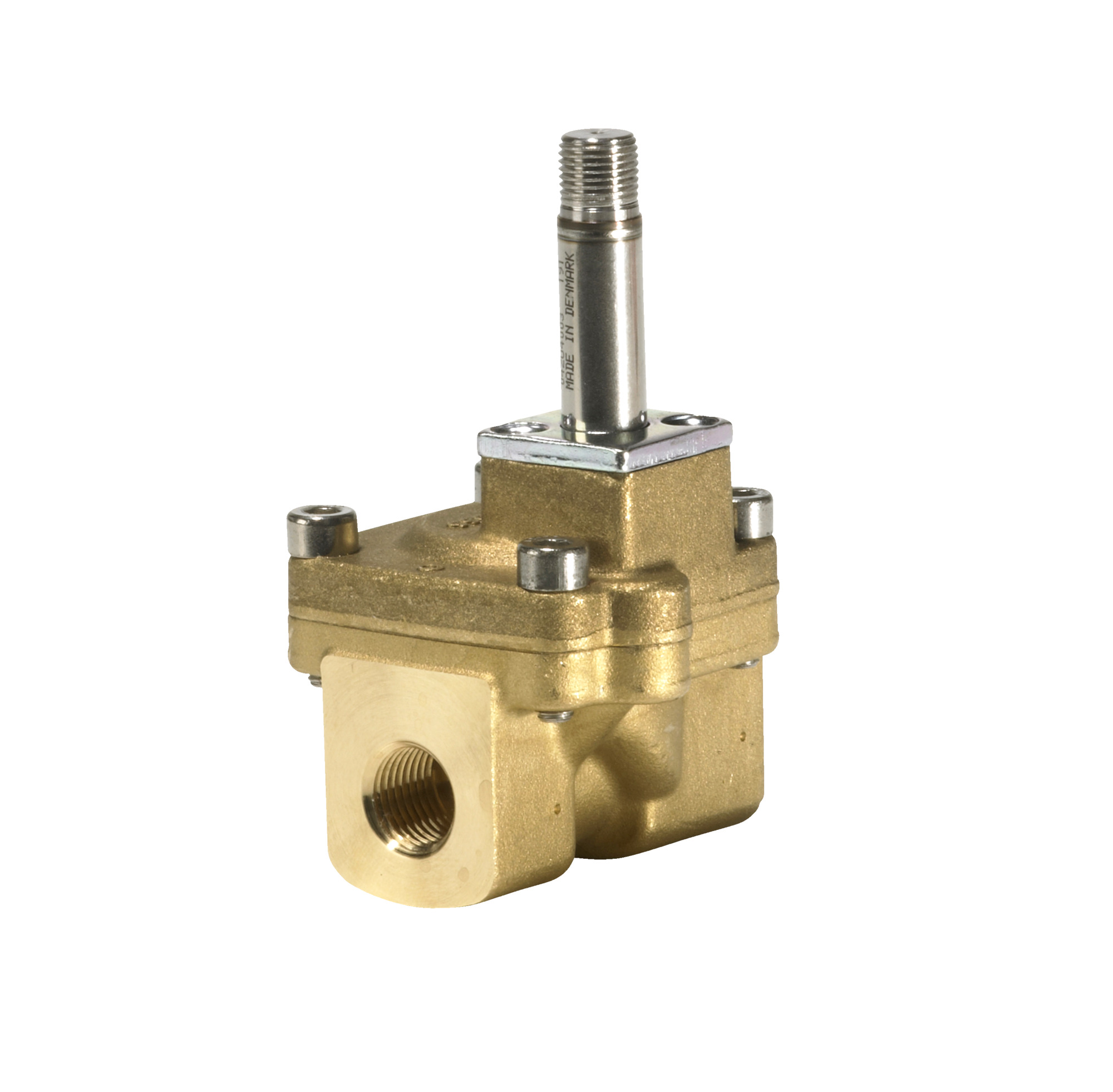

Danfoss Solenoid valve, EV220A, Function: NC, NPT, 1/4, 1 m³/h, NBR
| Actuator | A |
|---|---|
| Actuator size | 9 mm |
| Actuator size [in] | 0.35 in |
| Actuator system [mm] | 9 mm |
| Ambient temperature max. [°C] | 50 °C |
| Ambient temperature max. [°F] | 122 °F |
| Application | Open |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 1/4 |
| Connection standard | ANSI/ASME B1.20.1 |
| Connection type | NPT |
| Contains batteries | No |
| Cv value [gal/min] | 1.16 gal/min |
| Differential pressure [bar] [max] | 16 bar |
| Differential pressure [bar] [Min] | 0.2 bar |
| Differential pressure [psi] [Max] | 232 psi |
| Differential pressure [psi] [Min] | 2.9 psi |
| EAN | 5702423139712 |
| Est. time to close, water [ms] | 250 ms |
| Est. time to open, water [ms] | 40 ms |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Function | NC |
| Gross weight | 0.552 Kilogram |
| Kv value [m³/h] | 1 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 24 bar |
| Max. test pressure [psig] | 348 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Media recommendations | Water,Brine,Oil,Air |
| Media tolerance comments | Neutral media |
| Medium temperature range [°C] [Max] | 60 °C |
| Medium temperature range [°C] [Min] | -10 °C |
| Medium temperature range [°F] [Max] | 140 °F |
| Medium temperature range [°F] [Min] | 14 °F |
| Net weight | 0.538 Kilogram |
| Number of ways | 2/2 |
| Operation | Servo-operated (diaphragm) |
| Orifice size [mm] | 6 mm |
| Orifice size fraction [in] | 1/4 in |
| Packing format | Multi pack |
| Parts Program name | EV220A |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 15 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 481e69a1-f151-484d-b74f-362eac5dc9de |
| SCIP dossier product name | Valve EV220A |
| Seal Material | NBR |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV220A 6B N 14N NC000 |
| Type | EV220A |
| Type designation | EV220A 6 |
| Volume | 0.338 Liter |
Frequently Asked Questions
How do I get pricing for 042U6003?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 042U6003?
042U6003 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 042U6003?
Key specifications include Actuator: A; Actuator size: 9 mm; Actuator size [in]: 0.35 in; Actuator system [mm]: 9 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 042U6003 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

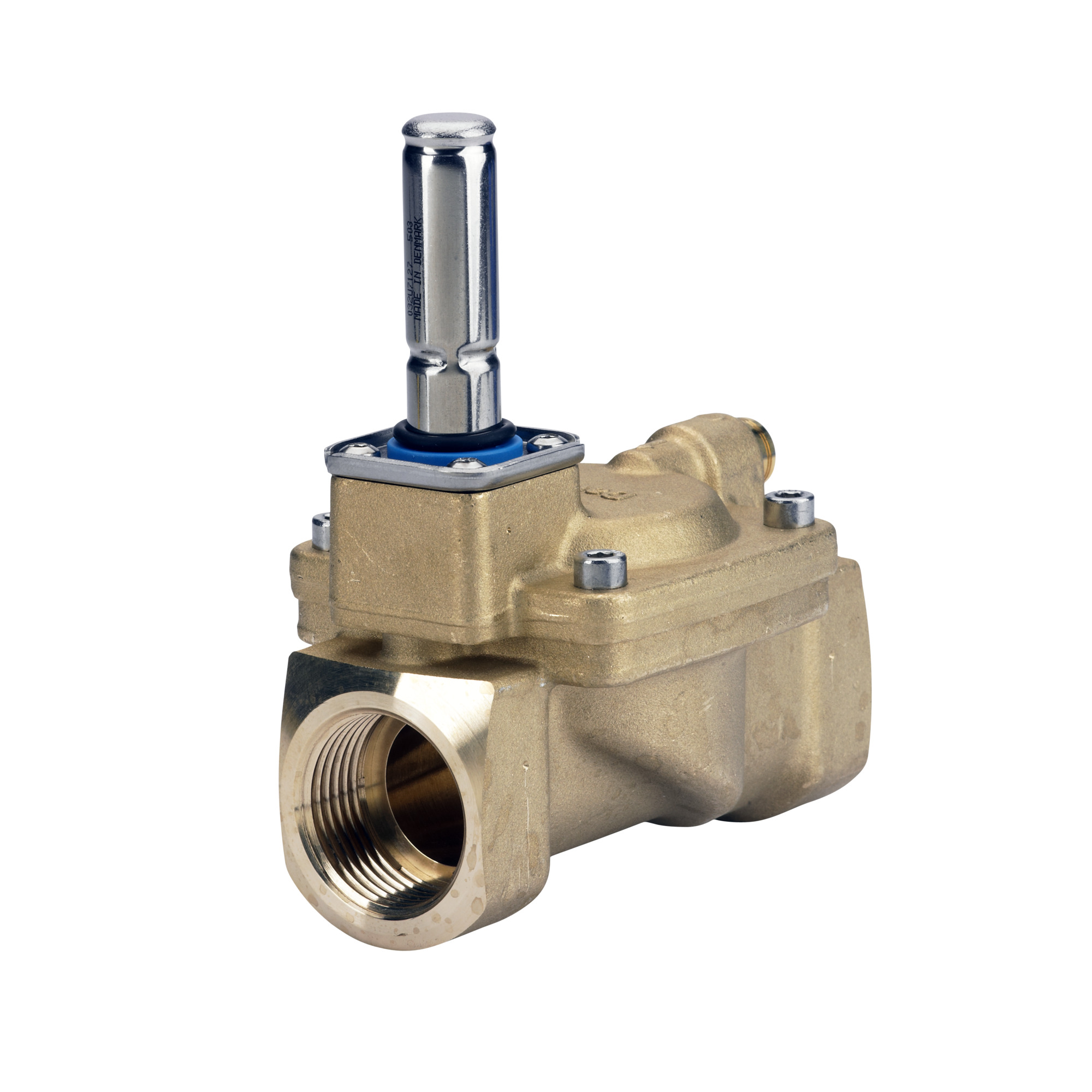

Danfoss Danfoss Solenoid valve, EV220S, Function: NC, G, 1/2, 4…

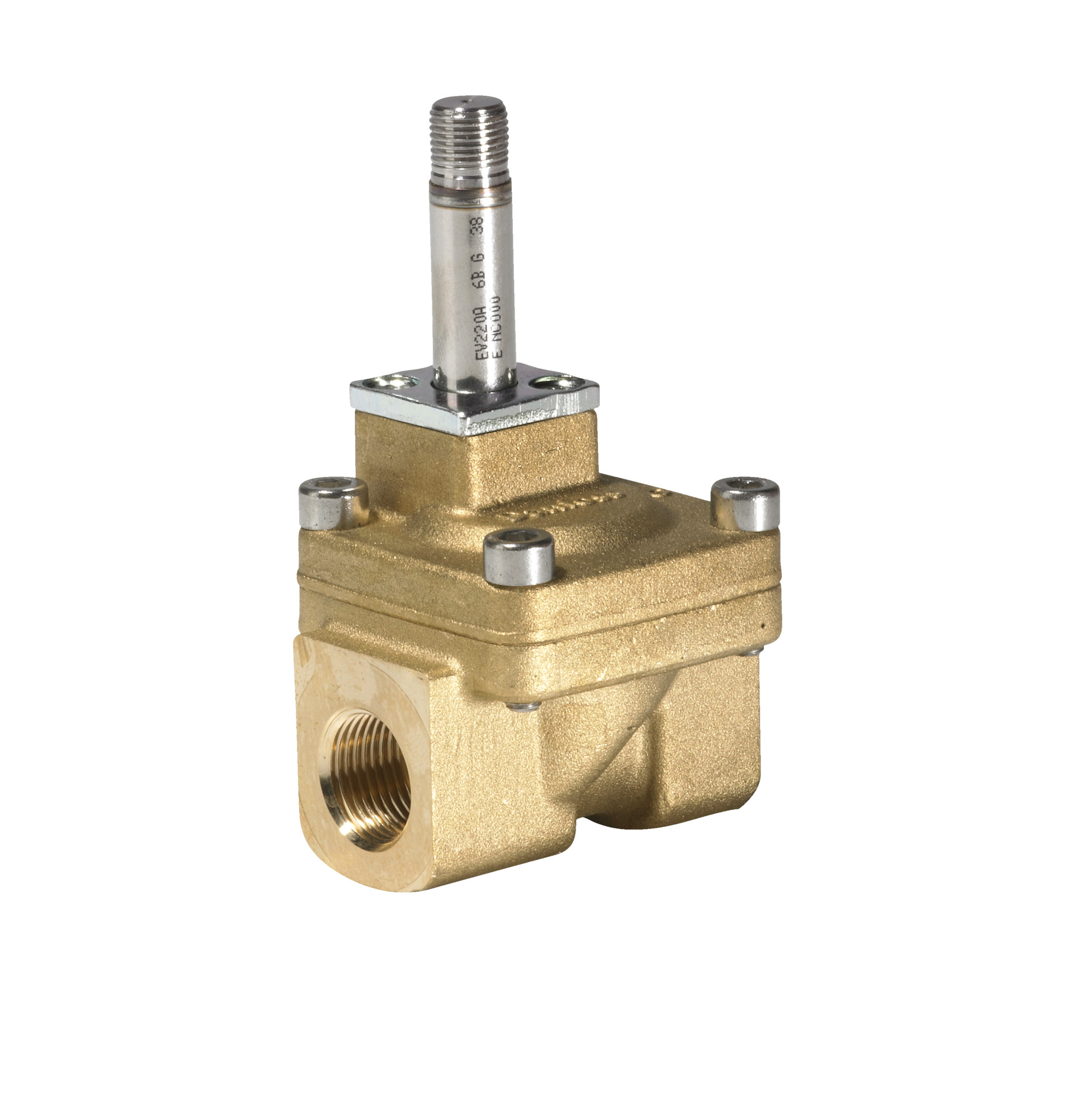

Danfoss Danfoss Solenoid valve, EV220A, Function: NC, NPT, 3/8, 1.6…
