Danfoss Solenoid valve, EV225B, Function: NC, G, 3/4, 5 m³/h, PTFE
Ships Same Day*
Worldwide Shipping
| Actuator | B |
|---|---|
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 40 °C |
| Ambient temperature max. [°F] | 104 °F |
| Application | Open |
| Approval | CEULUR |
| Body material | DZR brass |
| CE evaluated | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Coil option | Clip-on |
| Coil type | BQ |
| Connection Internal/External | Internal |
| Connection material | DZR brass |
| Connection size [in] | 3/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contains batteries | No |
| Cv value [gal/min] | 5.8 gal/min |
| Differential pressure [bar] [max] | 10 bar |
| Differential pressure [bar] [Min] | 0.3 bar |
| Differential pressure [psi] [Max] | 145 psi |
| Differential pressure [psi] [Min] | 4.35 psi |
| EAN | 5702428473194 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Spade DIN 43650-A |
| Enclosure rating IP | IP65 |
| Est. time to close, water [ms] | 20 ms |
| Est. time to open, water [ms] | 20 ms |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Fluid Group | 1 |
| Frequency [Hz] | 50/60 Hz |
| Function | NC |
| Gross weight | 1.503 Kilogram |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 5 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 15 bar |
| Max. test pressure [psig] | 217.5 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Media recommendations | Steam |
| Media tolerance comments | Slightly aggressive media |
| Medium temperature range [°C] [Max] | 185 °C |
| Medium temperature range [°C] [Min] | -10 °C |
| Medium temperature range [°F] [Max] | 365 °F |
| Medium temperature range [°F] [Min] | 14 °F |
| Net weight | 1.464 Kilogram |
| Number of ways | 2/2 |
| Operation | Servo-operated (diaphragm) |
| Orifice size [mm] | 20 mm |
| Orifice size fraction [in] | 3/4 in |
| Packing format | Multi pack |
| Power consumption [W] 50Hz | 10 W |
| Power consumption [W] 60Hz | 8 W |
| Product accessories | Solenoid coil accessoriesSolenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 37eed611-ac6e-4afb-8c8d-2fa1dd1fb454 |
| SCIP dossier product name | EV225B - solenoid valve |
| Seal Material | PTFE |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV225B 20BD G 34T NC000 BQ024A |
| Supply voltage [V] AC | 24 V |
| Supply voltage 50Hz Max [V] | 24 V |
| Supply voltage 60Hz Max [V] | 24 V |
| Type | EV225B |
| Type designation | EV225B 20 |
| UL evaluated | Yes |
| Volume | 1.227 Liter |
Frequently Asked Questions
How do I get pricing for 032U380616?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 032U380616?
032U380616 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 032U380616?
Key specifications include Actuator: B; Actuator size: 13.5 mm; Actuator size [in]: 0.53 in; Actuator system [mm]: 13.5 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 032U380616 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Danfoss Danfoss Solenoid valve, EV225B, Function: NC, G, 3/4, 5…
SKU: 032U3806
Same-day dispatch*

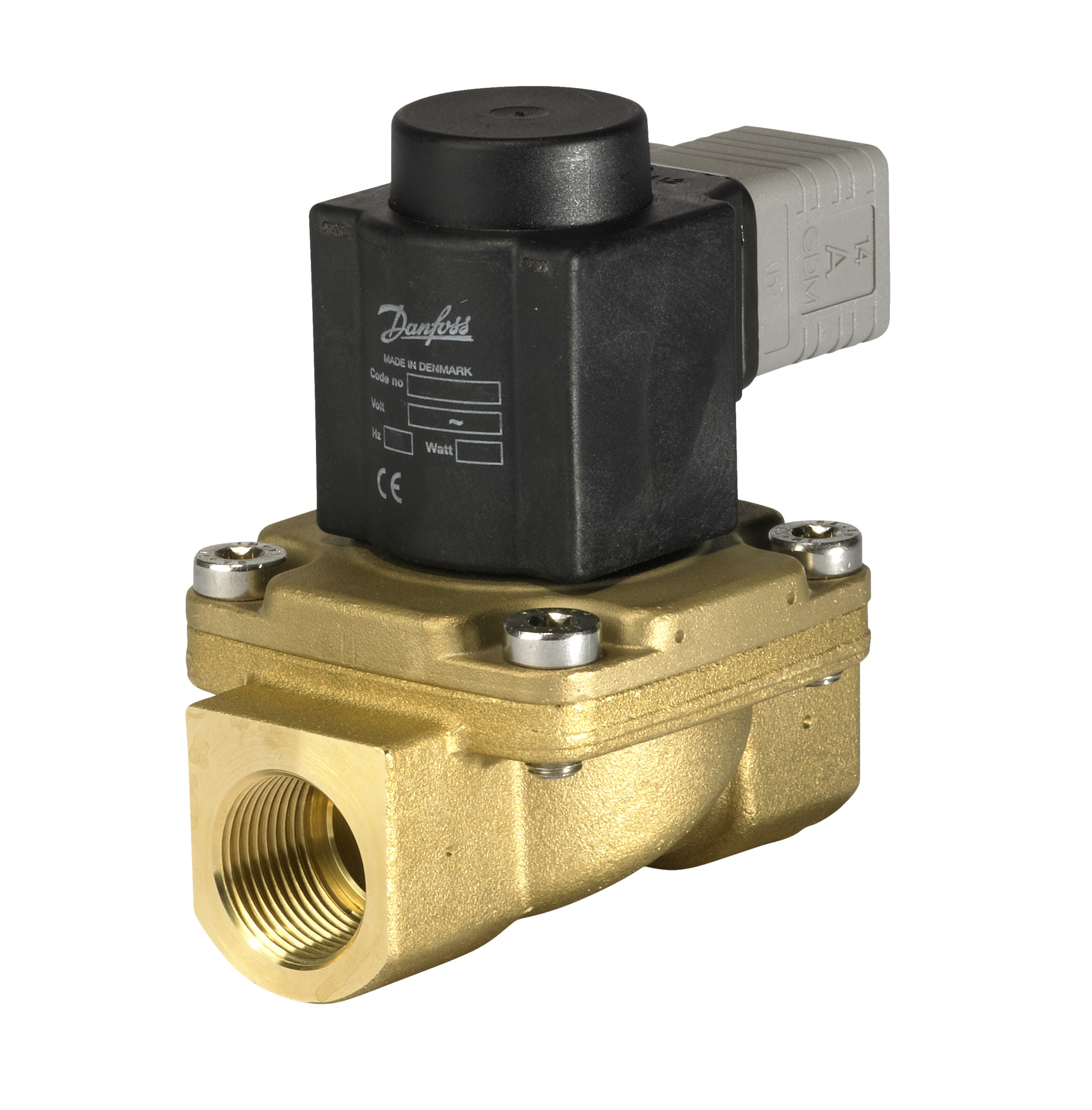

Danfoss Danfoss Solenoid valve, EV225B, Function: NC, G, 3/4, 5…
SKU: 032U380631
Same-day dispatch*

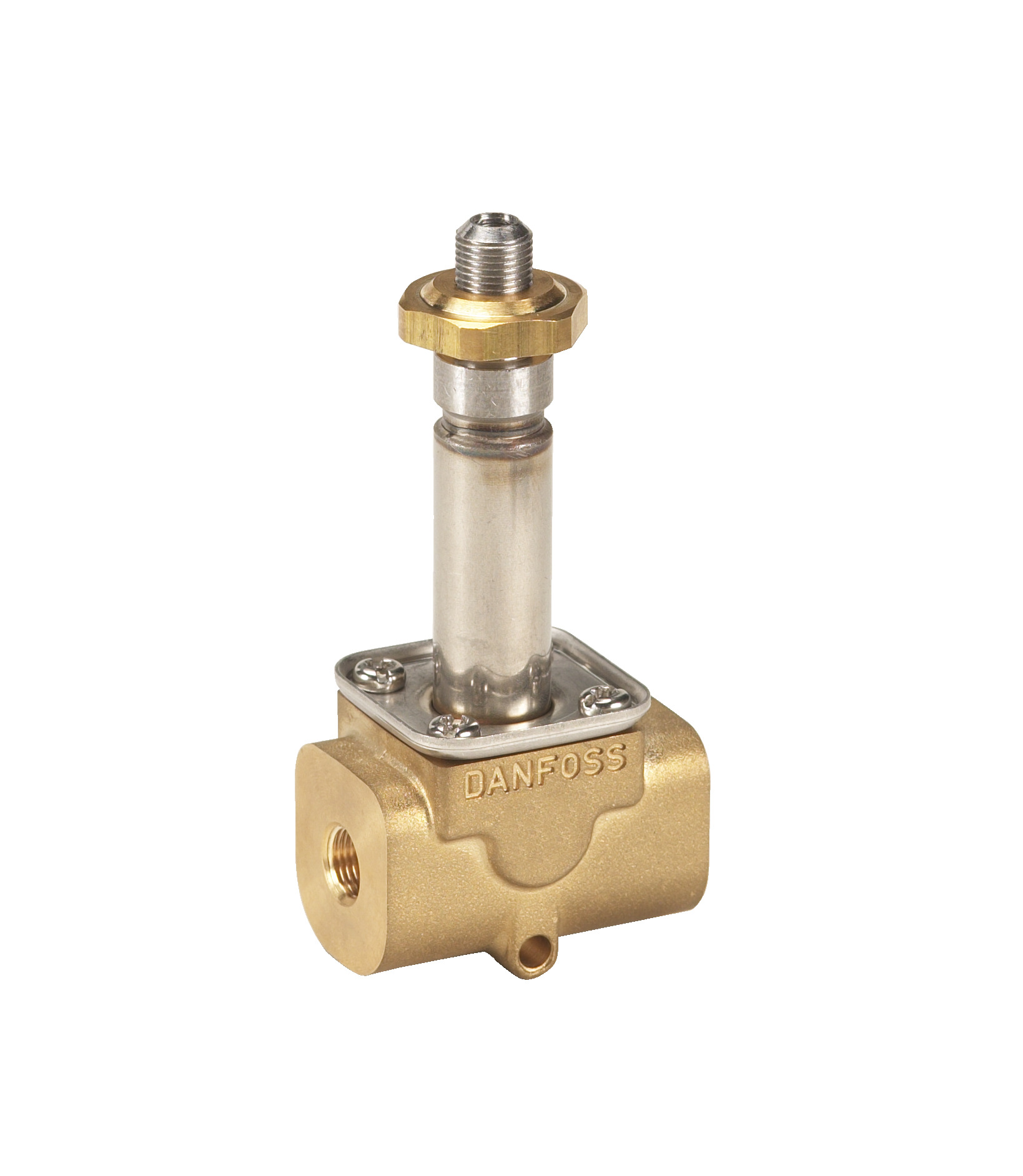

Danfoss Danfoss Solenoid valve, EV310B, Function: NC, G, 1/8, 0.15…
SKU: 032U4901
Same-day dispatch*
Danfoss Danfoss Solenoid valve, EV225B, Function: NC, G, 1/2, 3…
SKU: 032U380531
Same-day dispatch*

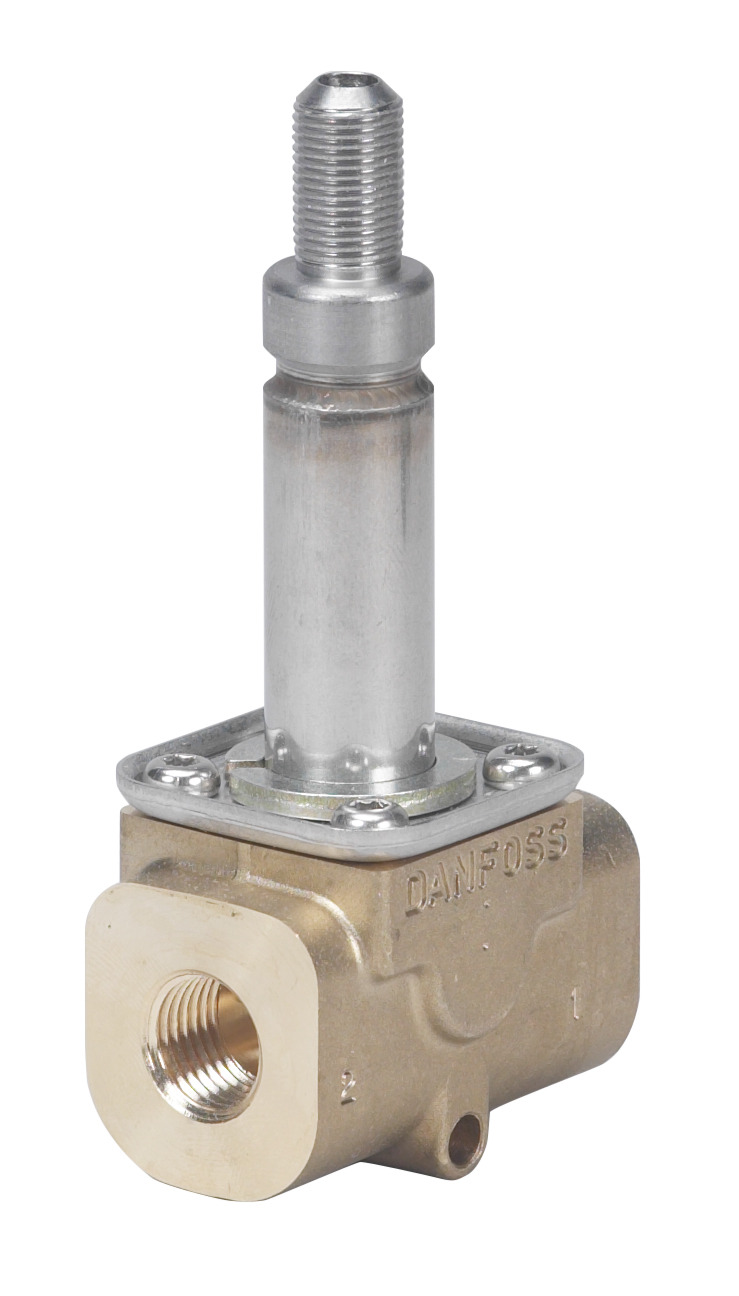

Danfoss Danfoss Solenoid valve, EV310B, Function: NC, G, 1/4, 0.15…
