Danfoss Solenoid coil, BI024D, Cable, null: 24, Multi pack
| Actuator size | 13.5 mm |
|---|---|
| Ambient temperature range [°C] [max] | 40 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 104 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ATEX - Cat. 2 - Zone 1 |
| Cable length [in] | 196 in |
| Cable length [m] | 5 m |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | Cable |
| Coil fastening | Finger screw |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Black |
| Conductor area [mm2] | 3 x 0.75 mm2 |
| Contains batteries | No |
| Duty Rating | Continuous |
| EAN | 5702424618568 |
| Earth connection | Ext. TerminalGreen/yellow wire |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Earth conn. wiring > 4 mm2 |
| Electrical connection | Cable |
| Electrical connector | 3 core cable |
| Enclosure rating IP | IP67 |
| Enclosure rating Nema (~) | 6 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| EX Sales text | -40C<ta<+40CDEMKO 01 ATEX127938XEx mb IIC T4 GbIECEx ULD 21.0024XUL 21 ATEX 2606XUL21UKEX2374X |
| Gross weight | 1.176 Kilogram |
| In scope of WEEE | Yes |
| Net weight | 1.095 Kilogram |
| Packing format | Multi pack |
| Parts included | IP67 seal kit |
| Parts Program name | AKV10P/PSAKV15AKV20AKVAEV210B 1,5 - 25EV210BW 1,5 - 25EV220B 6 - 100EV220BW 15 -50EV221BW 6 - 22EV222B 15 - 50EV250B 6 - 22EV250BW 6 - 22EV251B 10 - 22EVMEVM NO and NCEVR NC 2 - 40EVR NO 3 - 40EVRA(T) 3 - 40EVRBEVRFEVRPEVRS(T) 3 - 20ICF 15-65VDH 2 - 120VDHT xxVPH 15 |
| Power consumption [W] DC | 12 W |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [Max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Serviceable | No |
| Supply voltage [V] DC | 24 V |
| Type | BI024D |
| Type designation | BI024D |
| Volume | 2.004 Liter |
Frequently Asked Questions
How do I get pricing for 018Z8596?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 018Z8596?
018Z8596 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 018Z8596?
Key specifications include Actuator size: 13.5 mm; Ambient temperature range [°C] [max]: 40 °C; Ambient temperature range [°C] [min]: -40 °C; Ambient temperature range [°F] [Max]: 104 °F. The full specification table on this page lists every published attribute for this part.
How quickly can 018Z8596 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

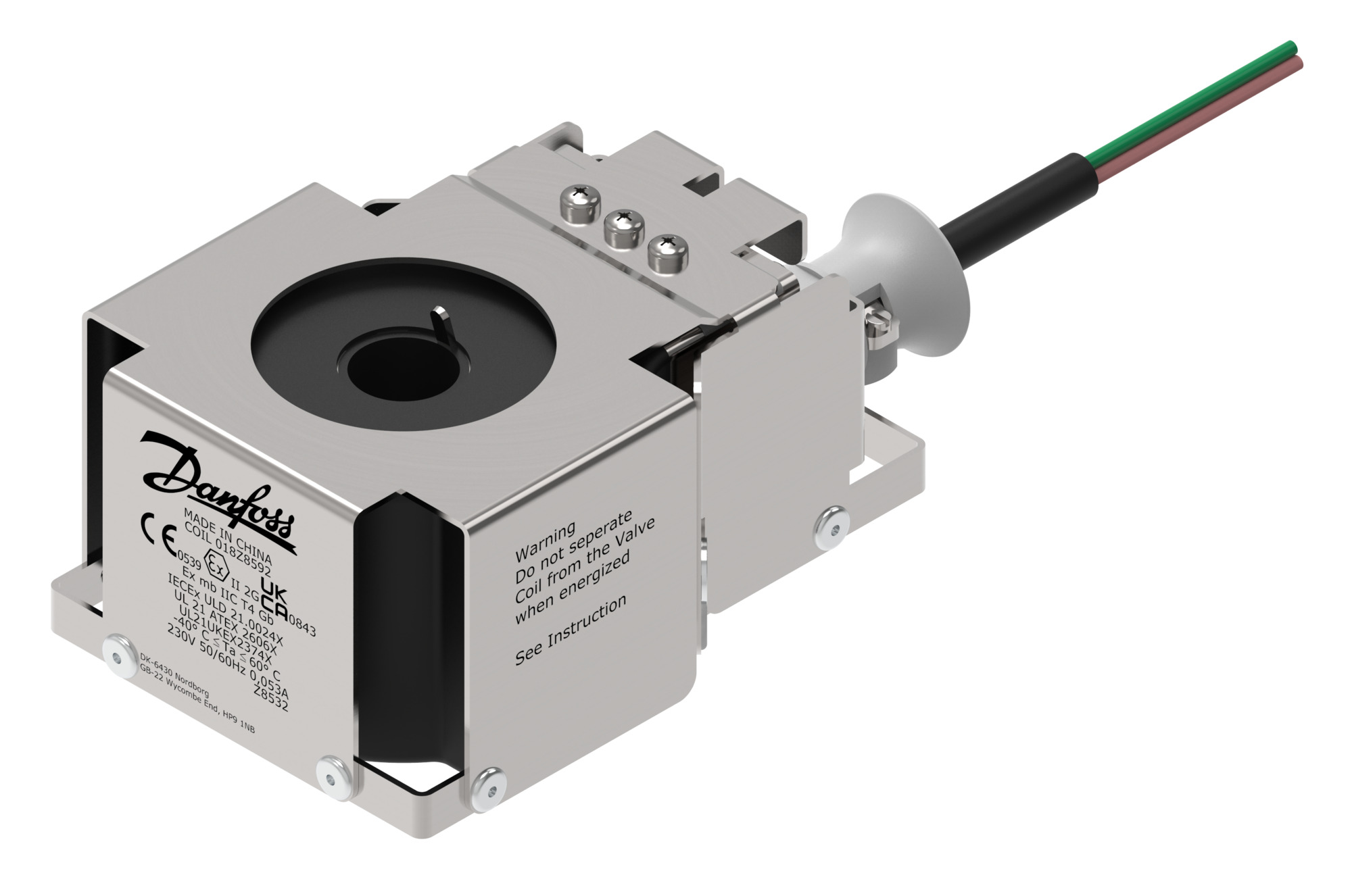

Danfoss Danfoss Solenoid coil, BI024C, Cable, 196 in, Supply voltage…

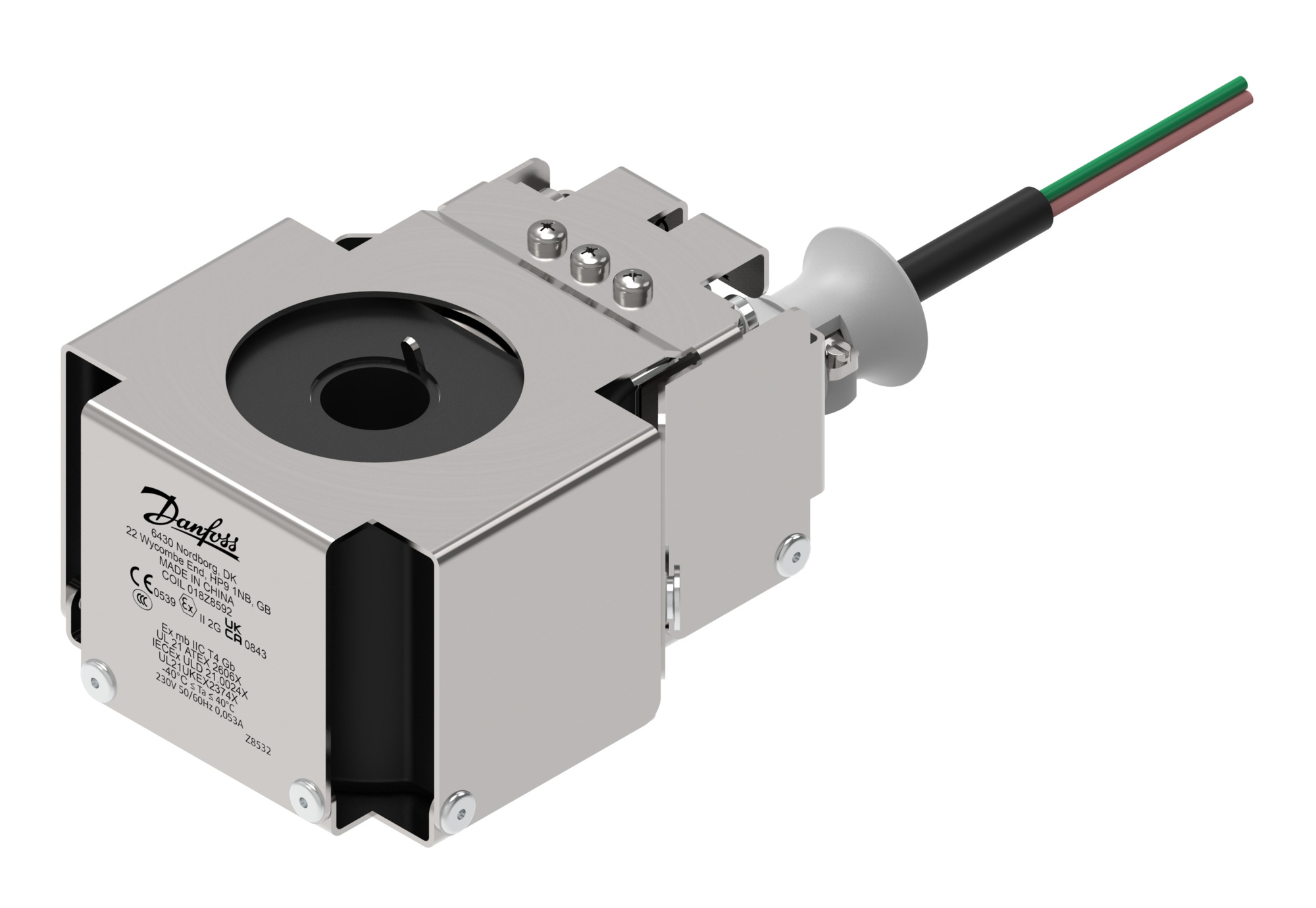

Danfoss Danfoss Solenoid coil, BI110C, Cable, Supply voltage [V] AC:…
