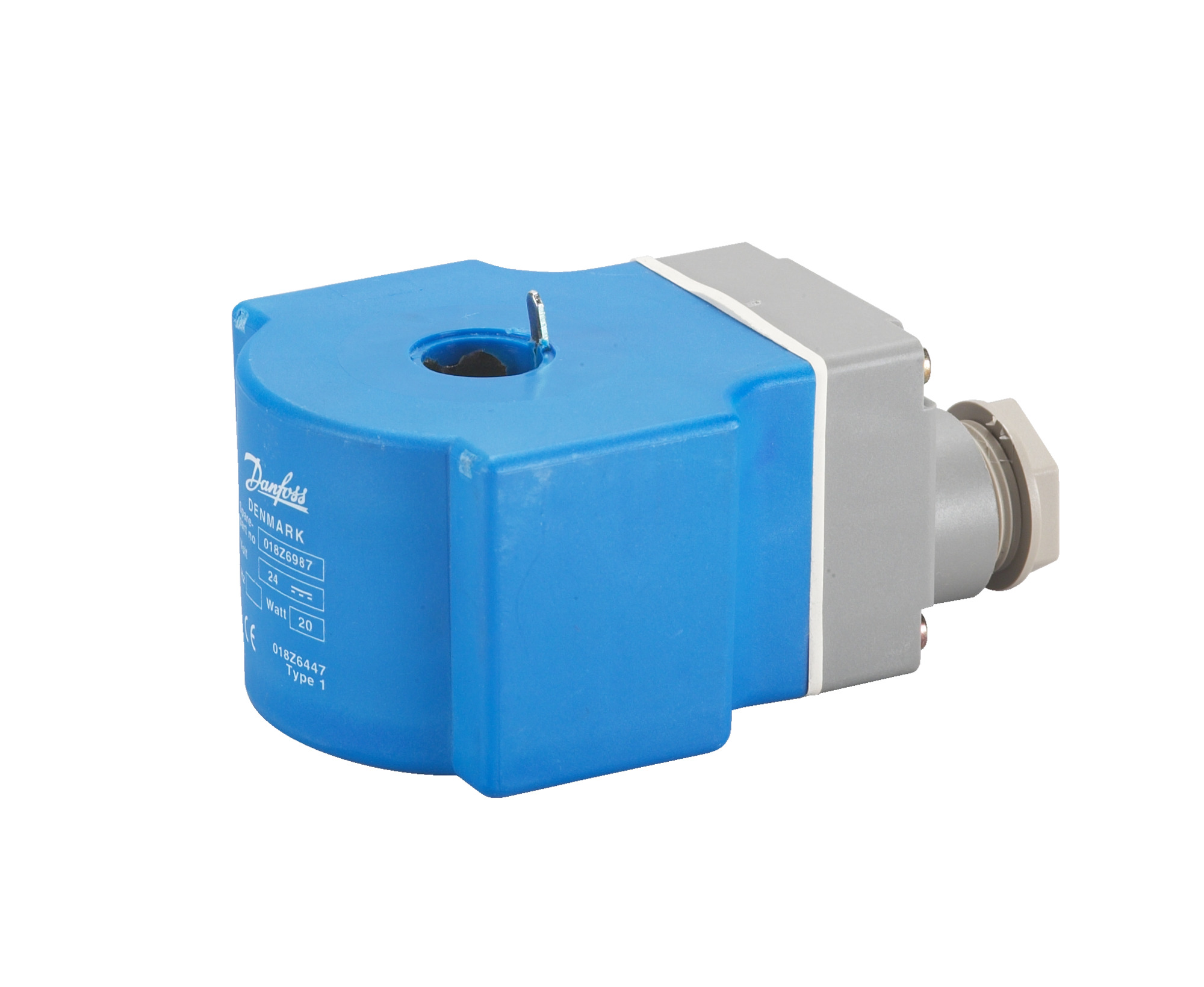

Danfoss Solenoid coil, BK024D, Terminal box, null: 24, Multi pack
| Actuator size | 13.5 mm |
|---|---|
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 122 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CEEACLLC CDC TYSK |
| Cable diameter [mm] [Max] | 11 mm |
| Cable diameter [mm] [Min] | 6 mm |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | Connection box |
| Coil fastening | Nut and snap |
| Coil type | I |
| Colour | Blue |
| Conductor area [mm2] | 0.75 - 1.5 mm2 |
| Contains batteries | No |
| EAN | 5702423056323 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Electrical connector | Screwed cable entry |
| Enclosure rating IP | IP00 |
| Enclosure rating Nema (~) | 0.000000 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gross weight | 0.656 Kilogram |
| In scope of WEEE | Yes |
| Net weight | 0.623 Kilogram |
| Packing format | Multi pack |
| Parts Program name | EV260B |
| Power consumption [W] DC | 23 W |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Quantity per packing format | 25 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [Max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Spare part number | 018Z6987 |
| Supply voltage [V] DC | 24 V |
| Type | BK024D |
| Type designation | BK024D |
| Volume | 0.52 Liter |
Frequently Asked Questions
How do I get pricing for 018Z6987?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 018Z6987?
018Z6987 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 018Z6987?
Key specifications include Actuator size: 13.5 mm; Ambient temperature range [°C] [max]: 50 °C; Ambient temperature range [°C] [min]: -40 °C; Ambient temperature range [°F] [Max]: 122 °F. The full specification table on this page lists every published attribute for this part.
How quickly can 018Z6987 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
