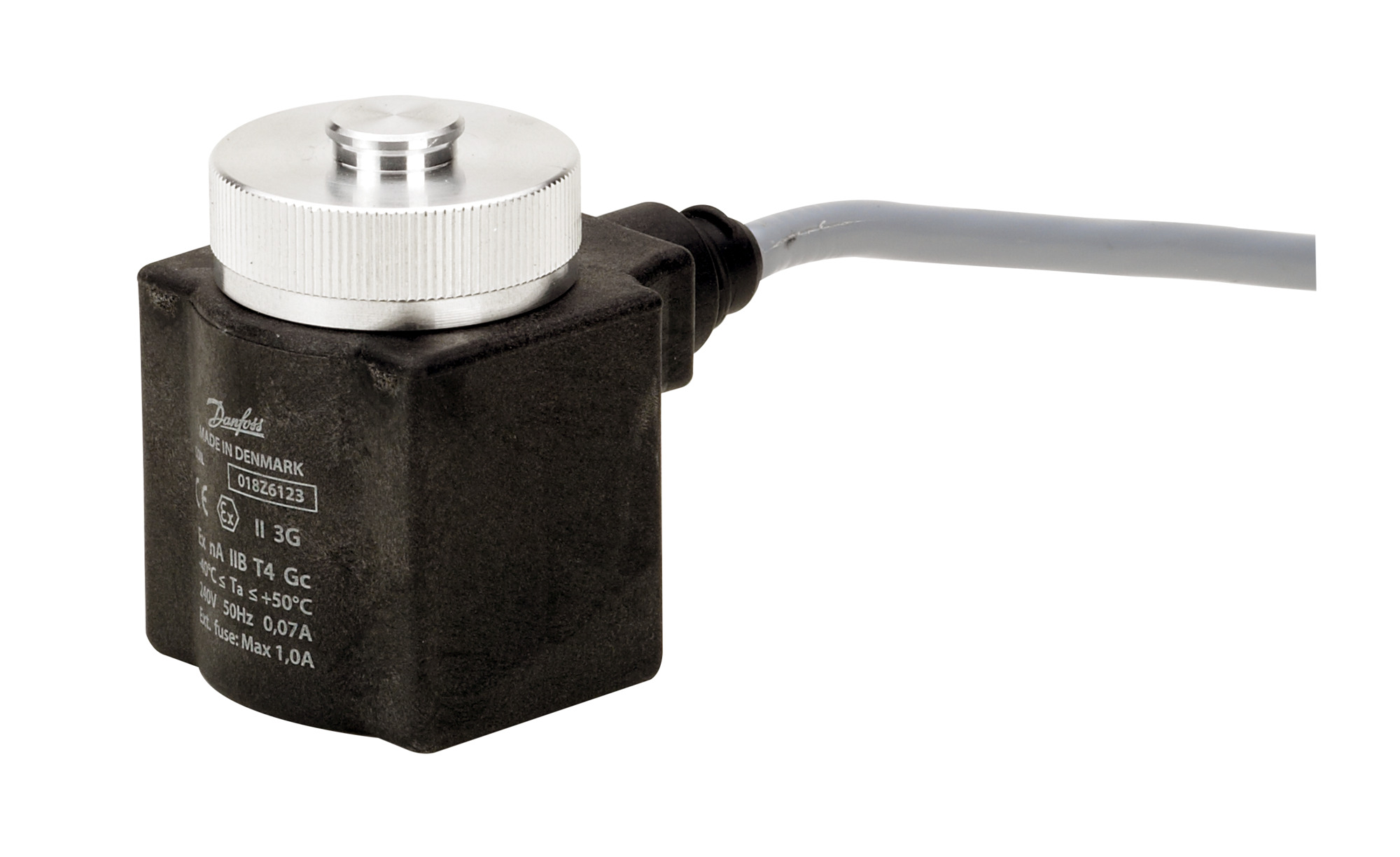

Danfoss Solenoid coil, BV024A, Cable, 40 in, Supply voltage [V] AC: 24
| Actuator size | 13.5 mm |
|---|---|
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 120 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ATEX - Cat. 3 - Zone 2LLC CDC TYSK |
| Cable length [in] | 40 in |
| Cable length [m] | 1 m |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | Cable |
| Coil fastening | Finger screw |
| Colour | Black |
| Compliance | EN 60079-0EN 60079-7 |
| Conductor area [mm2] | 3 x 0.75 mm2 |
| Contains batteries | No |
| EAN | 5702428843089 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connection standard | ATEX 94/9/EF ZONE 2 |
| Electrical connector | 3 core cable |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| EX Sales text | -40C<ta<+50CII 3G Ex ec IIB T4 Gc |
| Frequency [Hz] | 50 Hz |
| Gross weight | 0.386 Kilogram |
| In scope of WEEE | Yes |
| Net weight | 0.323 Kilogram |
| Packing format | Multi pack |
| Power consumption [W] | 11 W |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [Max] | 100 % |
| Rel. Humidity [% RH] [min] | 0 % |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Type | BV024A |
| Type designation | BV024A |
| Volume | 0.878 Liter |
