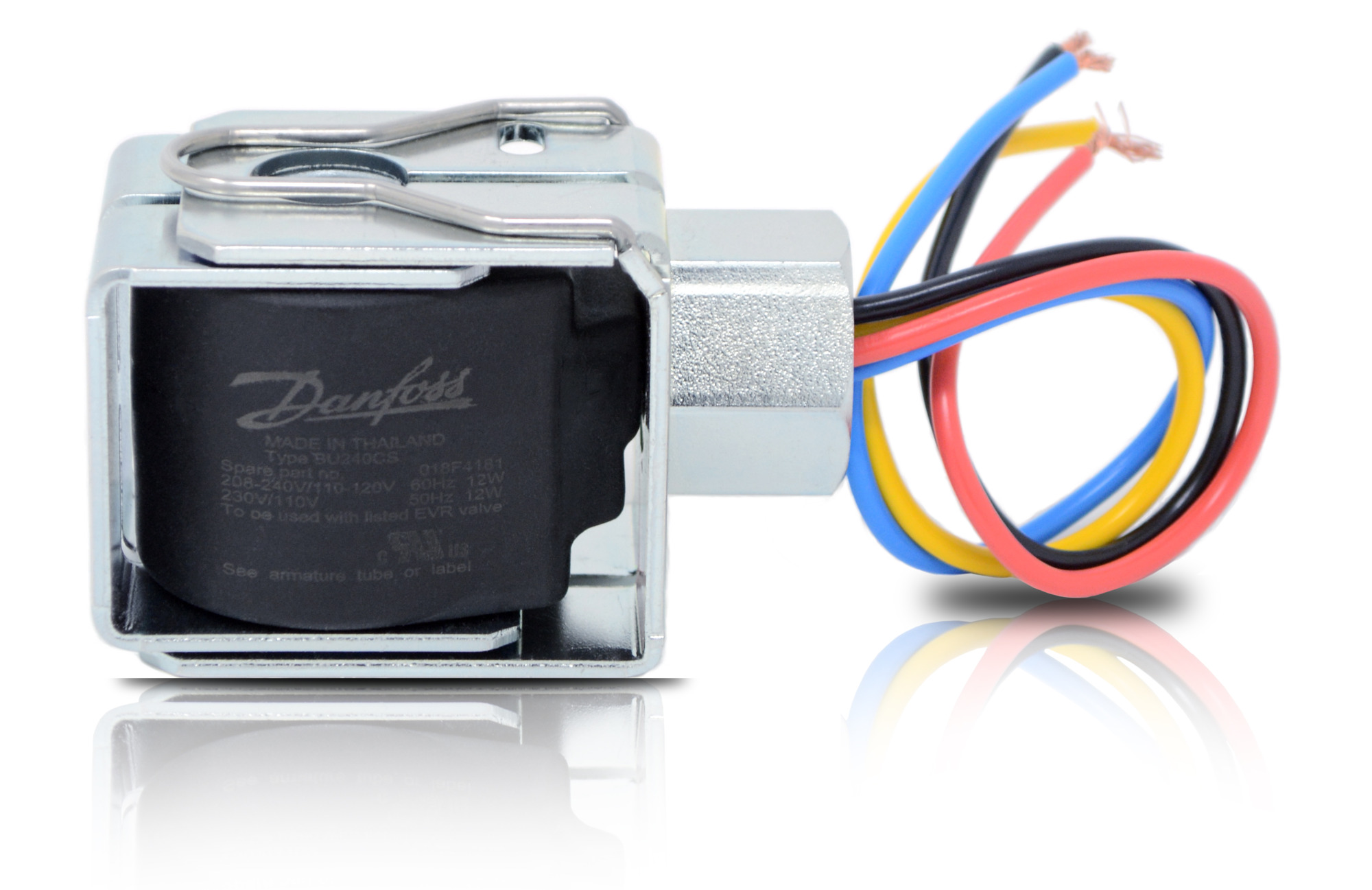

Danfoss Solenoid coil, BU240CS, Conduit Hub, 7 in
| Actuator size | 13.5 mm |
|---|---|
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 120 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | C UL US LISTEDLLC CDC TYSK |
| Cable length [in] | 7 in |
| Cable length [m] | 0.18 m |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil connection | 1/2 in Conduit Hub |
| Coil design standard | UL 429 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Black |
| Compliance | UL 429 |
| Contains batteries | No |
| EAN | 5702428547390 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Flying leads |
| Electrical connection | Conduit Hub |
| Electrical connection size | 1/2 in |
| Electrical connection standard | UL50E CLASS 4 |
| Enclosure rating IP | IP54 |
| Enclosure rating Nema (~) | 4 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frame design | Ext. metal frame |
| Frequency [Hz] | 50/60 Hz |
| Gross weight | 0.314 Kilogram |
| In scope of WEEE | Yes |
| Net weight | 0.301 Kilogram |
| Packing format | Multi pack |
| Parts Program name | EV210BEV215BEV220B 15 - 50EV220B 6 - 22EV225BEV245BEV250B |
| Pollution degree | 3 |
| Power cons Dual 50Hz [W] | 12 W |
| Power cons Dual 60Hz [W] | 12 W |
| Power consumption [W] 50Hz | 12 W |
| Power consumption [W] 60Hz | 12 W |
| Power consumption comments | Dual voltage coil |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Quantity per packing format | 35 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [Max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| Serviceable | No |
| Spare part number | 018F4181 |
| Supply Dual volt 50Hz Max [V] | 230 V |
| Supply Dual volt 60Hz Max [V] | 240 V |
| Supply Dual volt 60Hz Min [V] | 208 V |
| Supply voltage 50Hz Max [V] | 110 V |
| Supply voltage 60Hz Max [V] | 120 V |
| Supply voltage 60Hz Min [V] | 110 V |
| Type | BU240CS |
| Type designation | BU240CS |
| UL approval file name | MH29671 |
| UL evaluated | Yes |
| Volume | 0.318 Liter |
Frequently Asked Questions
How do I get pricing for 018F4181?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 018F4181?
018F4181 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 018F4181?
Key specifications include Actuator size: 13.5 mm; Ambient temperature range [°C] [max]: 50 °C; Ambient temperature range [°C] [min]: -40 °C; Ambient temperature range [°F] [Max]: 120 °F. The full specification table on this page lists every published attribute for this part.
How quickly can 018F4181 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
