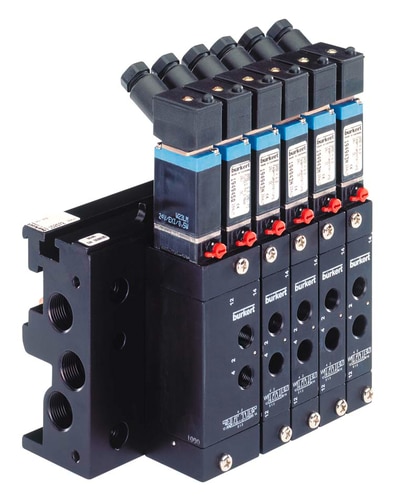

Buerkert Type 0450 Multi-way spool valve
| AC voltage | No |
|---|---|
| Add-on dimension 1 | 33 mm |
| Battery voltage | No |
| Cable plug in delivery | not included |
| Coil wiring LED | No |
| Coil wiring overvoltage protection | without |
| Coil wiring polarity protection | No |
| Coil wiring polarity recovery diode | No |
| Coil wiring polarity recovery diode redundant | No |
| Coil wiring rectifier | No |
| Commodity Code | 84812090 |
| DC voltage | No |
| Electrical connection position | Supply side |
| Flange | FM13 |
| Fluidic port connection number | 5 |
| Main valve material environment-contacting | Aluminium |
| Main valve operating principle | Slide valve |
| Main valve orifice 1 (P) (mm) | 9 mm |
| Main valve seal material | NBR (Nitrile rubber) |
| Main valve wetted material | Aluminium |
| Manual actuation | No |
| Nominal operation/Duty cycle | 100 % |
| Nominal pressure max | 10 bar |
| Nominal pressure min | 2 bar |
| Power reduction integrated | No |
| Product sub-group | Pneumatic valves |
| Protection type IP (max. with suitable connector) | IP65 |
| QNn value (gas) | 1.580 l/min |
| Supply connection type | Flange |
| Switch time close max. | 20 ms |
| Switch time open max. | 20 ms |
| Temperature environment max | 55 °C |
| Temperature environment min | -10 °C |
| Temperature medium max | 70 °C |
| Temperature medium min | -10 °C |
| Type | 0450 |
| Valve function | H/Z - normally open - inlet port 1 connected with outlet port 2, outletport 4 connected with exhaust port 5, exhaust port 3 closed |
| Valve function number of switching positions | 2 |
| Valve piloting type | Manual |
| Voltage max / rated voltage | 0 V |
| Voltage min / rated voltage | 0 V |
| Weight | 0.82 Lb |
| Working connection diameter (inch) | 1/4 inch |
| Working connection material | Aluminium |
| Working connection position | opposite of supply side |
| Working connection thread type | G |
