Buerkert Type 0330 3/2-way-solenoid valve; direct acting
Buerkert 57307 - Solenoid Valves - Weight: 1.01 Lb; Valve function: C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conectedwith exhaust port 3 (R/NO); Type: 0330.
Buerkert 57307 is a Solenoid Valves catalog item from Buerkert. The manufacturer's published data for this part number specifies Weight: 1.01 Lb and Valve function: C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conectedwith exhaust port 3 (R/NO).
Key manufacturer data on file for this item includes Type: 0330; Actuator type: Pivot; Operation: direct-acting; AC voltage: Yes; Mounting Type: Metric screws; Installation length: 46 mm; Fluidic port connection number: 3; Valve function number of switching positions: 2; Manual actuation: No; Port connection 1 type: Internal thread; Port connection 1 thread marking: 1/4; Port connection 1 thread type: G. The complete technical table is shown in the Specifications tab on this page.
| AC voltage | Yes |
|---|---|
| Actuator type | Pivot |
| Analysis version | No |
| Back-pressure-resistant version | No |
| Battery voltage | No |
| Cable plug art. no. - type | 00314802 - 2518 |
| Cable plug in delivery | enclosed |
| Coil insulation material (encasement) | Epoxy |
| Coil type | block bolted |
| Coil wiring overvoltage protection | without |
| Coil wiring polarity protection | No |
| Coil wiring polarity recovery diode | No |
| Coil wiring rectifier | No |
| Commodity Code | 84818079 |
| DC voltage | No |
| Electrical connection material | Brass |
| Electrical connection number of contacts | 2 + Grounding conductor |
| Electrical connection polarity | Irrelevant |
| Electrical connection position | top |
| Electrical connection sort | Plug pattern form A according to DIN EN 175301-803 |
| Flow | Below seat |
| Fluidic port connection number | 3 |
| inrush power consumption AC | 30 V·A |
| Installation length | 46 mm |
| Kv value (water) | 0,11 m3/h |
| Low-noise version | No |
| Main valve operating principle | Globe valve |
| Main valve orifice 1 (inch) | 5/64 inch |
| Main valve orifice 1 (P) (mm) | 2 mm |
| Main valve orifice 3 (R) (mm) | 2 mm |
| Main valve wetted material | Brass |
| Main valve with integrated screen | No |
| Manual actuation | No |
| Manual actuation material | No manual actuation available |
| Manual actuation position | No manual actuation available |
| Manual actuation screw slot | No manual actuation available |
| Manual actuation stop | No manual actuation available |
| Manual actuation type | Nonexistent |
| Media separation | Yes |
| Mounting Type | Metric screws |
| Nominal operation/Duty cycle | 100 % |
| Nominal pressure max (liquid) | 12 bar |
| Nominal pressure min | 0 bar |
| Oil burner valve | No |
| Operation | direct-acting |
| Oxygen version | No |
| Port connection 1 thread marking | 1/4 |
| Port connection 1 thread type | G |
| Port connection 1 type | Internal thread |
| Port connection 2 thread marking | 1/4 |
| Port connection 2 thread type | G |
| Port connection 2 type | Internal thread |
| Port connection 3 thread marking | 1/4 |
| Port connection 3 thread type | G |
| Port connection 3 type | Internal thread |
| Protection type IP (max. with suitable connector) | IP65 |
| QNn value (gas) | 120 l/min |
| Rated power AC | 15 V·A |
| Rated power consumption | 8 W |
| Sealing toward outside material | FKM (Fluor rubber) |
| Seat seal material | FKM (Fluor rubber) |
| Seat seal material category | Elastomers |
| Seat seal material Shore hardness | 70 |
| Steam version | No |
| Switch function | on/off |
| Switch time close max. | 15 ms |
| Switch time close min | 8 ms |
| Switch time open max. | 15 ms |
| Switch time open min | 8 ms |
| Temperature environment max | 55 °C |
| Temperature medium max | 90 °C |
| Temperature medium min | 0 °C |
| Temperature surface max | 150 °C |
| Thermal insulation class of the actuator | H |
| Type | 0330 |
| Vacuum version | No |
| Valve construction | centrical installation |
| Valve function | C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conectedwith exhaust port 3 (R/NO) |
| Valve function number of switching positions | 2 |
| Valve seat material | Brass |
| Valve setting closing time | No |
| Valve setting opening time | No |
| Voltage max / rated voltage | 230 V |
| Voltage min / rated voltage | 230 V |
| Voltage tolerance negative | 10 % |
| Voltage tolerance positive | 10 % |
| Weight | 1.01 Lb |
Frequently Asked Questions
How do I get pricing for 57307?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 57307?
57307 is a Buerkert part. KKM Solutions sources Buerkert components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 57307?
Key specifications include AC voltage: Yes; Actuator type: Pivot; Analysis version: No; Back-pressure-resistant version: No. The full specification table on this page lists every published attribute for this part.
How quickly can 57307 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Buerkert Buerkert Type 0121 3/2-way-solenoid valve f.aggress. medium
Buerkert Buerkert Type 0121 3/2-way-solenoid valve f.aggress. medium
Buerkert Buerkert Type 0121 2/2-way-solenoid valve f.aggress. medium

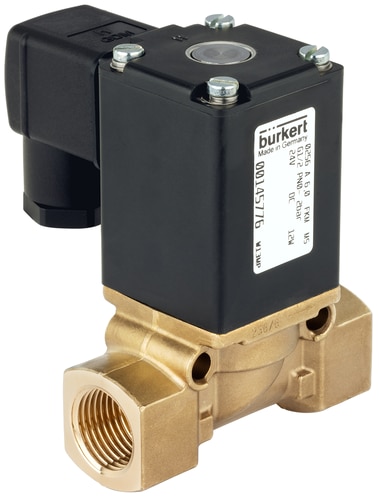

Buerkert Buerkert Type 0256 2/2-way-solenoid valve; direct acting
