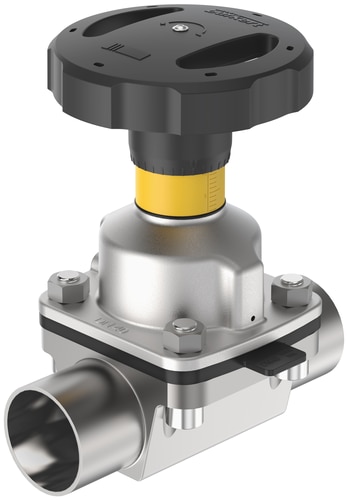

Buerkert Type 2933 2/2-way diaphragm valve man. op. Basic
| Analysis version | No |
|---|---|
| Approval type | Material-approval-foods seal materials, Material-approval-foods, Material-approval-pharma-USP Class VI |
| Bonnet material | Stainless steel |
| Certification type | Food - FDA-compliant, Food (EC) 1935/2004 compliant according Manufacturer Declaration, Pharma USP Class VI-compliant |
| CIP capable | Yes |
| Commodity Code | 84818087 |
| Cv value | 1,7 gal/min |
| Diaphragm coupling | Button |
| Diaphragm material | PTFE with EPDM backing membrane |
| Diaphragm size | 8 |
| End position feedback position | without |
| Factory certification 2.1 Membrane | No |
| Fluidic port connection number | 2 |
| Function | On/off valve |
| Handwheel diameter | 35 mm |
| Interface to actuator | interface LB/diaphragm/body DN 8 |
| Kv value (water) | 1,5 m3/h |
| Main valve operating principle | Diaphragm valve |
| Manual activation material | PPS (Polyphenylene sulphide) |
| Manual actuation stop | No |
| Manufacturer´s test certificate 3.1 included | No |
| Nominal pressure (DIN EN 1333) | PN 10 |
| Nominal Pressure (DIN EN 1759) | Class 150 |
| Nominal pressure max | 10 bar |
| Nominal pressure min | 0 bar |
| Parts free of oil and grease | No |
| Port connection 1 dimensions | 12,7x1,65 |
| Port connection 1 DN | DN 15 (NPS 1/2) - 12,7x1,65 |
| Port connection 1 standard | ASME BPE / DIN 11866 Series C |
| Port connection 1 type | Welded |
| Port connection 2 dimensions | 12,7x1,65 |
| Port connection 2 DN | 1/2" - 12,7x1,65 |
| Port connection 2 standard | ASME BPE / DIN 11866 Series C |
| Port connection 2 type | Welded |
| Position indicator | Optical |
| Product identification | Data matrix code |
| Product sub-group | On/off valves |
| SIP capable | Yes |
| Stroke limitation | single min-stroke limiter (closing limiter) |
| Temperature environment max | 130 °C |
| Temperature environment min | -10 °C |
| Temperature medium max | 130 °C |
| Temperature medium min | -10 °C |
| Type | 2933 |
| Type label customer data | None |
| Valve body exterior surface | Without processing |
| Valve body internal surface | Mechanically polished Ra <= 0.76 micrometer / Ra <= 30 microinch (ASME BPESF 3 / DIN H2) |
| Valve body material | Investment cast material 316L/1.4435 |
| Valve function number of switching positions | 2 |
| Weight | 0.61 Lb |
