Buerkert Type 2000 2/2-way angle seat valve, pneu. operated
Ships Same Day*
Worldwide Shipping
| Actuator increased chemical resistance | No |
|---|---|
| Actuator material | PA (Polyamide) |
| Actuator material category | Plastics |
| Actuator size | 50 mm |
| Actuator version | Classic |
| Additional manual actuation included | No |
| Approval type | Material-approval-foods |
| Body nominal size | 15 mm |
| Body nominal size (IN) | 1/2 inch |
| Certification type | Food (EC) 1935/2004 and FDA compliant according Manufacturer Declaration |
| CIP capable | Yes |
| Commodity Code | 84818073 |
| Control air connection 1 pre-mounted | Plug |
| Control air connection 2 pre-mounted | Plug |
| Control air connection diameter (inch) | 1/4 inch |
| Control air connection material | Stainless steel |
| Control air connection position | in line direction |
| Control air connection thread type | G |
| Control air connection type | Internal thread |
| Control air hole diameter | 1,2 mm |
| Control cone | No |
| Control function | B - normally open (NO) |
| Control pressure max | 10 bar |
| Control pressure min | 2,4 bar |
| Control pressure vacuum | No |
| Flow | Below seat |
| Fluidic port connection number | 2 |
| Interface to actuator | metric |
| Kv value (water) | 5 m3/h |
| Main valve operating principle | Angle seat valve |
| Manual actuation | No |
| Manufacturer´s test certificate 3.1 included | No |
| Nominal pressure (DIN EN 1333) | PN 25 |
| Nominal Pressure (DIN EN 1759) | Class 150 |
| Nominal pressure max | 16 bar |
| Nominal pressure min | 0 bar |
| Nominal seat diameter | 15 mm |
| O-ring between cover and bush | No |
| Oxygen version | No |
| Packed seal enclosed | Yes |
| Pipe material | Stainless steel |
| Port connection 1 inner diameter (mm) | 16 mm |
| Port connection 1 outer diameter (mm) | 19 mm |
| Port connection 1 pipe standard 2 | DIN 11866 Series A |
| Port connection 1 pipe standards 1 | DIN 11850 R2 |
| Port connection 1 size DN | DN 15 |
| Port connection 1 type | Weld end |
| Port connection 1 wall thickness (mm) | 1,5 mm |
| Position monitoring via magnetic piston | No |
| Product sub-group | On/off valves |
| Seal nipple body material | Graphite |
| Seat seal material | PTFE (Polytetrafluorethylene) |
| Seat seal material category | Plastics |
| SIP capable | Yes |
| Swivel plate material | CF3M / 1.4404 / 1.4401 |
| Temperature environment max | 40 °C |
| Temperature environment min | -10 °C |
| Temperature medium max | 185 °C |
| Temperature medium min | -10 °C |
| Type | 2000 |
| Vacuum version | No |
| Valve body material | Stainless steel |
| Valve body material category | Metals |
| Valve body surface treatment external | unmachined |
| Valve body surface treatment internal | unmachined |
| Valve construction | Valve complete |
| Valve function number of switching positions | 2 |
| Valve piloting type | Pneumatic |
| Valve raw body manufacture | cast |
| Weight | 1.59 Lb |
Frequently Asked Questions
How do I get pricing for 20091713?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 20091713?
20091713 is a Buerkert part. KKM Solutions sources Buerkert components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 20091713?
Key specifications include Actuator increased chemical resistance: No; Actuator material: PA (Polyamide); Actuator material category: Plastics; Actuator size: 50 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 20091713 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

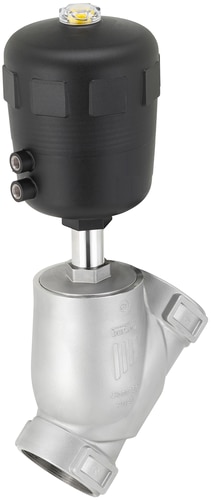

Buerkert Buerkert Type 2000 2/2-way angle seat valve, pneu. operated
SKU: 20091705
Same-day dispatch*
Buerkert Buerkert Type 2960 2-way angle seat contr. valve manual…
SKU: 20091727
Same-day dispatch*
Buerkert Buerkert Type 2100 Actuator for 2/2-way angle seat valve
SKU: 20091739
Same-day dispatch*

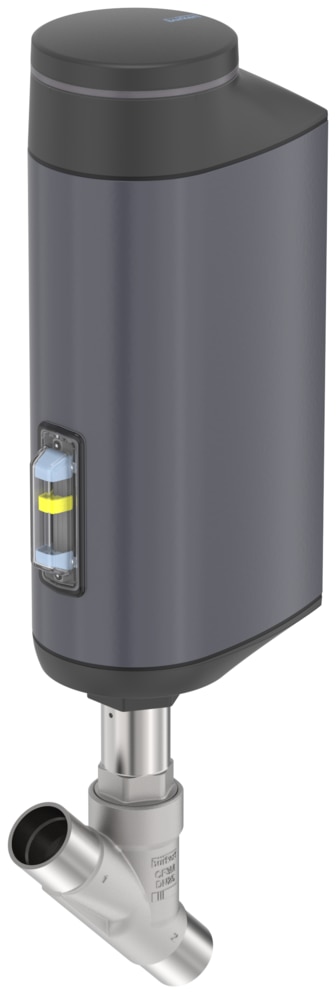

Buerkert Buerkert Type 3320 2/2-way angle seat valve el.mot.
SKU: 20091686
Same-day dispatch*
Buerkert Buerkert Type 2100 2/2-way angle seat valve, pneu. operated
SKU: 20091585
Same-day dispatch*

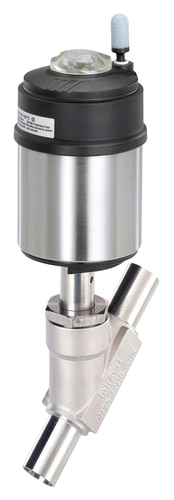

Buerkert Buerkert Type 2100 2/2-way angle seat valve, pneu. operated
