Buerkert Type 8691 Control head top 70 mm for actuator 20XX
| AC voltage | No |
|---|---|
| Approval type | Ex national, IECEx, ATEX |
| Certification type | China (CCC), Ex ec IIC T4 Gc, II 3 G Ex ec IIC T4 Gc, II 3 D Ex tc IIIC T135°C Dc, Ex tc IIIC T135°C Dc |
| Commodity Code | 90268020 |
| Communication interface protocol | ASi + Service-büS |
| DC voltage | Yes |
| Displacement transducer type | Internal rotative |
| Electrical connection material | Stainless steel |
| Electrical connection sort | Plug - M12 |
| Electrical connection type | male |
| End position feedback bottom | green |
| End position feedback external | 0 PCE |
| End position feedback internal | 2 PCE |
| End position feedback top | yellow |
| For Actuator size 100mm | Yes |
| For Actuator size 125mm | Yes |
| For Actuator size 130mm | No |
| For Actuator size 175mm | Yes |
| For Actuator size 225mm | Yes |
| For Actuator size 40 mm | No |
| For Actuator size 50mm | Yes |
| For Actuator size 63mm | Yes |
| For Actuator size 70mm | No |
| For Actuator size 80mm | Yes |
| For Actuator size 90mm | No |
| Function | Control head |
| Galvanically separated actuator supply | No |
| Generation | revision 3 |
| Manual actuation | Yes |
| Mounting Type | CLASSIC drive |
| Pneumatic function 1 double acting | No |
| Pneumatic function 1 single acting | Yes |
| Port connection 1 thread marking | 1/8 |
| Port connection 1 thread type | G |
| Port connection 1 type | Internal thread |
| Product sub-group | Control head / Position indicator |
| Protection type IP (max. with suitable connector) | IP65/67 |
| QNn value (gas) | 250 l/min |
| Supply system-internal | No |
| Supply via BUS | Yes |
| Supply via separating barrier | No |
| Temperature environment max | 55 °C |
| Temperature environment min | -10 °C |
| Type | 8691 |
| Valve diameter | 3 mm |
| Voltage max / rated voltage | 31,6 V |
| Voltage min / rated voltage | 29,5 V |
| Weight | 1.17 Lb |
Frequently Asked Questions
How do I get pricing for 20091612?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 20091612?
20091612 is a Buerkert part. KKM Solutions sources Buerkert components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 20091612?
Key specifications include AC voltage: No; Approval type: Ex national, IECEx, ATEX; Certification type: China (CCC), Ex ec IIC T4 Gc, II 3 G Ex ec IIC T4 Gc, II 3 D Ex tc IIIC T135°C Dc, Ex tc IIIC T135°C Dc; Commodity Code: 90268020. The full specification table on this page lists every published attribute for this part.
How quickly can 20091612 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

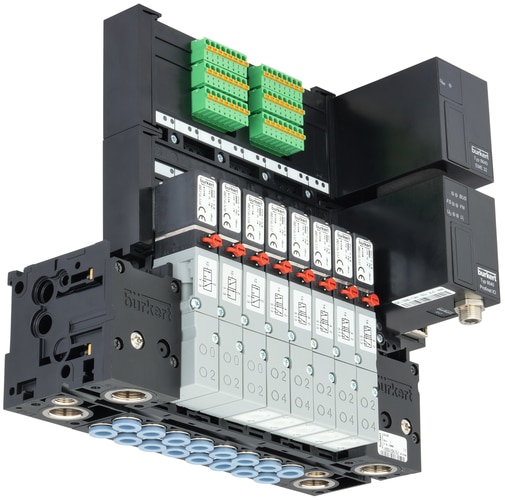

Buerkert Buerkert Type 8640 Valve block type 8640
