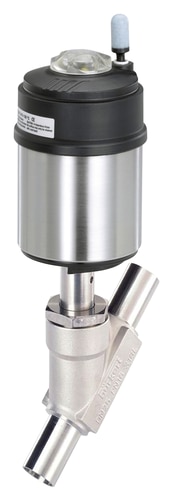

Buerkert Type 2100 2/2-way angle seat valve, pneu. operated
Ships Same Day*
Worldwide Shipping
| Actuator increased chemical resistance | No |
|---|---|
| Actuator material | PPS (Polyphenylene sulphide) |
| Actuator material category | Plastics |
| Actuator size | 70 mm |
| Actuator version | ELEMENT |
| Additional manual actuation included | No |
| Body nominal size | 40 mm |
| Body nominal size (IN) | 1 1/2 inch |
| CIP capable | Yes |
| Commodity Code | 84818073 |
| Control air connection 1 pre-mounted | not equipped |
| Control air connection 2 pre-mounted | Silencer 780779 |
| Control air connection diameter (inch) | 1/8 inch |
| Control air connection material | Stainless steel |
| Control air connection position | in line direction |
| Control air connection thread type | G |
| Control air connection type | Internal thread |
| Control cone | No |
| Control function | A - normally closed (NC) |
| Control pressure max | 10 bar |
| Control pressure min | 4,8 bar |
| Control pressure vacuum | No |
| Flow | Below seat |
| Fluidic port connection number | 2 |
| Installation length | 182 mm |
| Kv value (water) | 35 m3/h |
| Main valve operating principle | Angle seat valve |
| Manual actuation | No |
| Manufacturer´s test certificate 3.1 included | No |
| Nominal pressure (DIN EN 1333) | PN 25 |
| Nominal Pressure (DIN EN 1759) | Class 150 |
| Nominal pressure max | 6 bar |
| Nominal pressure min | 0 bar |
| Nominal seat diameter | 40 mm |
| O-ring between cover and bush | No |
| Oxygen version | No |
| Packed seal enclosed | Yes |
| Parts free of oil and grease | Yes (according to DIS 1000020797) |
| Parts free of silicone | Yes (according to DIS 1000020797) |
| Port connection 1 DN inch | 1,5 Inch2 |
| Port connection 1 inner diameter (mm) | 34,8 mm |
| Port connection 1 outer diameter (inch) | 1 1/2 inch |
| Port connection 1 outer diameter (mm) | 38,1 mm |
| Port connection 1 pipe standard 2 | DIN 11866 Series C |
| Port connection 1 pipe standards 1 | ASME BPE |
| Port connection 1 size DN | DN 40 |
| Port connection 1 type | Weld end |
| Port connection 1 wall thickness (mm) | 1,65 mm |
| Port connection 1 wall thickness inch | 0,065 Inch2 |
| Position monitoring via magnetic piston | No |
| Product sub-group | On/off valves |
| Seal nipple body material | Graphite |
| Seat seal material | PTFE (Polytetrafluorethylene) |
| Seat seal material category | Plastics |
| SIP capable | Yes |
| Surface finish internal | RA 0,6 µm |
| Swivel plate | with |
| Swivel plate material | Stainless steel |
| Temperature environment max | 100 °C |
| Temperature environment min | -10 °C |
| Temperature medium max | 140 °C |
| Temperature medium min | -10 °C |
| Type | 2100 |
| Vacuum version | No |
| Valve body material | Stainless steel |
| Valve body material category | Metals |
| Valve body surface treatment external | unmachined |
| Valve body surface treatment internal | electropolished |
| Valve construction | Valve complete |
| Valve function number of switching positions | 2 |
| Valve piloting type | Pneumatic |
| Valve raw body manufacture | cast |
| Weight | 6.8 Lb |
Frequently Asked Questions
How do I get pricing for 20091574?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 20091574?
20091574 is a Buerkert part. KKM Solutions sources Buerkert components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 20091574?
Key specifications include Actuator increased chemical resistance: No; Actuator material: PPS (Polyphenylene sulphide); Actuator material category: Plastics; Actuator size: 70 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 20091574 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
