Buerkert Type 6013 2/2-way-solenoid valve, direct acting
Ships Same Day*
Worldwide Shipping
| AC voltage | Yes |
|---|---|
| Actuator type | Plunger valve |
| Analysis version | No |
| Approval type | Ex national, IECEx, ATEX |
| Back-pressure-resistant version | No |
| Battery voltage | Yes |
| Certification type | Korea (Kosha), mb IIC T4 Gb; mb IIIC T130 °C Db; single mounting, II 2 G mb IIC T4 Gb; II 2 D mb IIIC T130 °C Db; single mounting |
| Coil insulation material (encasement) | Epoxy |
| Coil Size | 40 mm |
| Coil special feature | for high temperatures |
| Coil type | placed on top |
| Coil wiring overvoltage protection | Varistor |
| Coil wiring polarity recovery diode | No |
| Coil wiring rectifier | Yes |
| Commodity Code | 84818079 |
| DC voltage | Yes |
| Electrical connection number of contacts | 2 + Grounding conductor |
| Electrical connection position | in direction of flow left |
| Electrical connection sort | Terminal box with PCB terminals |
| Flow | Above seat |
| Fluidic port connection number | 2 |
| Kv value (water) | 0,08 m3/h |
| Low-noise version | No |
| Main valve operating principle | Globe valve |
| Main valve orifice 1 (inch) | 1/16 inch |
| Main valve orifice 1 (P) (mm) | 1,5 mm |
| Main valve wetted material | Brass |
| Main valve with integrated screen | No |
| Manual actuation | No |
| Media separation | No |
| Nominal operation/Duty cycle | 100 % |
| Nominal pressure max (gas) | 16 bar |
| Nominal pressure max (liquid) | 16 bar |
| Nominal pressure min | 0 bar |
| Oil burner valve | No |
| Operation | direct-acting |
| Port connection 1 flange | Bürkert flange 32 x 32 version A1 |
| Port connection 1 type | Flange |
| Port connection 2 flange | Bürkert flange 32 x 32 version A1 |
| Port connection 2 type | Flange |
| Protection type IP (max. with suitable connector) | IP65 |
| Rated power consumption | 9 W |
| Rated power DC | 11 W |
| Reduced power DC | 9 W |
| Sealing toward outside material | NBR (Nitrile rubber) |
| Seat seal material | NBR (Nitrile rubber) |
| Seat seal material category | Elastomers |
| Steam version | No |
| Switch function | on/off |
| Switch time close max. | 30 ms |
| Switch time open max. | 20 ms |
| Temperature environment max | 55 °C |
| Temperature environment min | -10 °C |
| Temperature medium max | 90 °C |
| Temperature medium min | -10 °C |
| Thermal insulation class of the actuator | H |
| Type | 6013 |
| Vacuum version | No |
| Valve construction | Valve complete |
| Valve function | A - normally closed - inlet port 1 (P/NC) |
| Valve function number of switching positions | 2 |
| Valve setting closing time | No |
| Valve setting opening time | No |
| Voltage frequency 1 | 50/60 Hz |
| Voltage max / rated voltage | 24 V |
| Voltage min / rated voltage | 24 V |
| Voltage tolerance negative | 10 % |
| Voltage tolerance positive | 10 % |
| Weight | 0.82 Lb |
Frequently Asked Questions
How do I get pricing for 20090839?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 20090839?
20090839 is a Buerkert part. KKM Solutions sources Buerkert components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 20090839?
Key specifications include AC voltage: Yes; Actuator type: Plunger valve; Analysis version: No; Approval type: Ex national, IECEx, ATEX. The full specification table on this page lists every published attribute for this part.
How quickly can 20090839 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Buerkert Buerkert Type 6027 2/2-way-solenoid valve
SKU: 20090838
Same-day dispatch*
Buerkert Buerkert Type 6027 2/2-way-solenoid valve
SKU: 20090840
Same-day dispatch*
Buerkert Buerkert Type 0330 2/2-way-solenoid valve; direct acting
SKU: 20090790
Same-day dispatch*
Buerkert Buerkert Type 6027 2/2-way-solenoid valve
SKU: 20090733
Same-day dispatch*
Buerkert Buerkert Type 6281 2/2-way-solenoid valve; servo assisted
SKU: 20090707
Same-day dispatch*

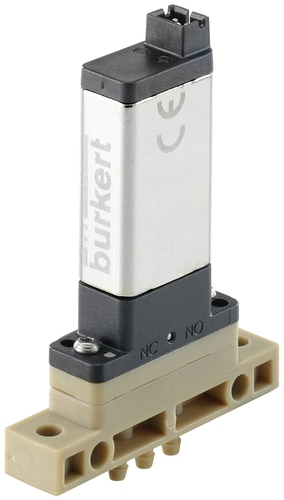

Buerkert Buerkert Type 6724 Solenoid valve
