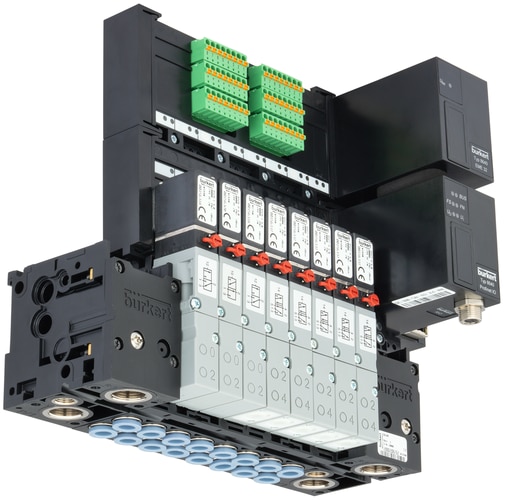

Buerkert Type 8640 Valve block type 8640
| Add-on dimension 1 | 11 mm |
|---|---|
| Approval type | UL |
| Certification type | Pneumatic valves UL Recognized cURus |
| Commodity Code | 84812090 |
| Communication interface hardware 1 | Sub D 25-pin |
| Communication interface protocol 1 | Multi-pole |
| Ext. load cut-off assembly | No |
| Ext. load cut-off valves | No |
| Generation | revision 3 |
| Input type digital quantity | 0 PCE |
| Integrated check valves in 3 (R) | Yes |
| Integrated check valves in 5 (S) | Yes |
| Intermediate feed quantity | 0 PCE |
| Internal bus communication | Bürkert |
| Manual/Automatic switching | Yes |
| Modular version | Multi-pole |
| Mounting Type | DIN-rail installation |
| Nominal pressure max | 10 bar |
| Nominal pressure min | 2,5 bar |
| Pneumatic HotSwap in 1 (P) | Yes |
| Pressure gauge | No |
| Pressure gauge quantity | 0 PCE |
| Pressure port | G 1/4 |
| Pressure sensor | No |
| Pressure sensor number | 0.000000 |
| Product sub-group | Valve islands & automation systems |
| Protection type IP (max. with suitable connector) | IP20 |
| Temperature environment max | 55 °C |
| Temperature environment min | 0 °C |
| Temperature medium max | 50 °C |
| Temperature medium min | 0 °C |
| Type | 8640 |
| Valve function | 12x 3/2 valve function C |
| Weight | 2.36 Lb |
| Working connection position | Bottom (pneumatic module) |
| Working port | D6 |
Frequently Asked Questions
How do I get pricing for 20090442?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 20090442?
20090442 is a Buerkert part. KKM Solutions sources Buerkert components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 20090442?
Key specifications include Add-on dimension 1: 11 mm; Approval type: UL; Certification type: Pneumatic valves UL Recognized cURus; Commodity Code: 84812090. The full specification table on this page lists every published attribute for this part.
How quickly can 20090442 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
