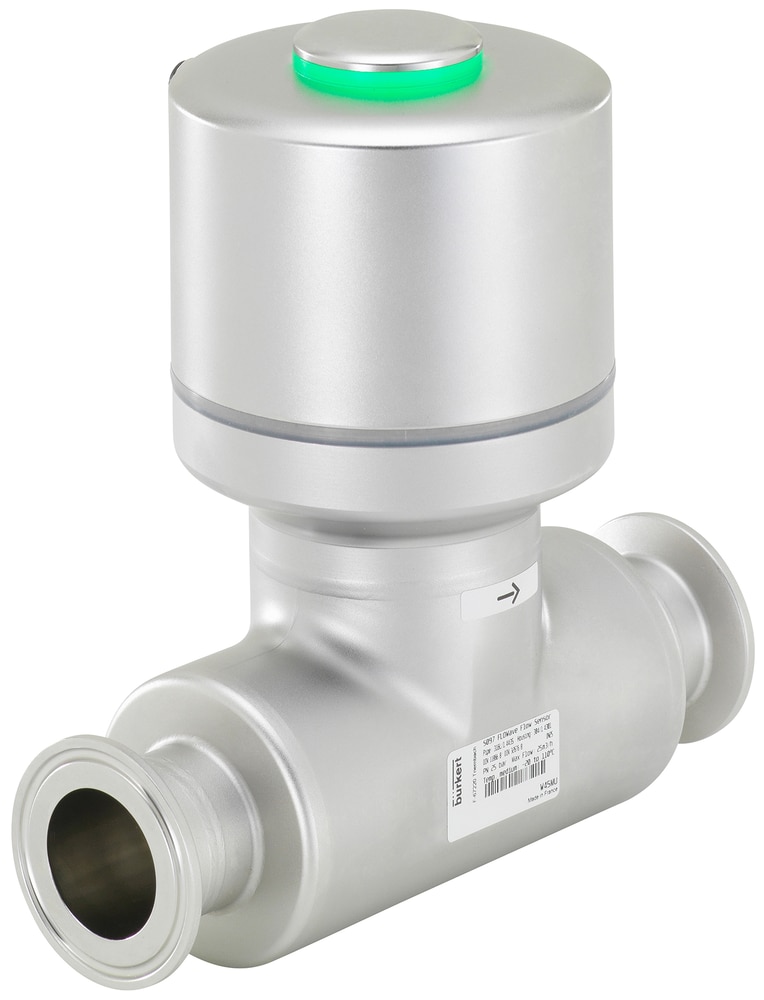

Buerkert Type 8098 FLOWave flowmeter
| AC voltage | No |
|---|---|
| Acoustic transmission factor | Yes |
| Approval type | ATEX, EHEDG, Material-approval-foods seal materials, IECEx, 3-A Sanitary |
| Batch dosing | No |
| Certification type | II 3 G Ex ec IIC T4 Gc, Hygiene certification Europe, Food - FDA-compliant, Ex tc IIIC T130°C Dc, Hygiene certification USA, Ex ec IIC T4 Gc, II 3 D Ex tc IIIC T130°C Dc |
| Commodity Code | 90261021 |
| Communications protocol to hardware 1 büS | Yes |
| Concentration 1 | No |
| Concentration 2 | No |
| Concentration formula | without |
| Conductivity min | 0 µS/cm |
| DC voltage | Yes |
| Density | Yes |
| Detection of flow direction | Yes |
| Diameter measuring tube (DN) | 40 mm |
| differentiation factor | Yes |
| Display | No |
| Electrical connection 1 type | circular plug M12 8 pins |
| Electrical connection material | Stainless steel |
| Flow rate (mass) | Yes |
| Flow rate (volume) | Yes |
| Installation length | 273 mm |
| Manufacturer´s test certificate 3.1 included | Yes |
| Max measured value of volume flow rate | 34 |
| Measured value unit | m3/h |
| Measuring pipe material | Stainless steel |
| Min measured value of volume flow rate | 0.000000 |
| Nominal pressure max | 25 bar |
| Output type analog quantity | 1 |
| Output type digital quantity | 1 |
| Port connection 1 dimensions | 38,1x1,65 Cl: 50,5 |
| Port connection 1 DN | 1 1/2" |
| Port connection 1 standard | ASME BPE / BS4825-3 (pipe BS4825-1) |
| Port connection 1 type | Clamp |
| Port connection material | Stainless steel |
| Port connection material category | Metals |
| Product sub-group | Flow rate |
| Protection class measurement device (IP) | IP65/67 |
| Protection rate measurement device NEMA | NEMA 4X |
| Protocol | Service-büS |
| Roughness of pipe inside | 0,4 µm |
| Seal housing/cover material | Silicone |
| Sensor body material | Stainless steel |
| Sensor type | SAW |
| Temperature | Yes |
| Temperature environment max | 60 °C |
| Temperature environment min | -10 °C |
| Temperature medium max | 130 °C |
| Temperature medium min | -20 °C |
| Transmitter type | Transmitter S |
| Type | 8098 |
| Voltage max / rated voltage | 35 V |
| Voltage min / rated voltage | 12 V |
| Volumeter | Yes |
| Weight | 6.61 Lb |
| Wifi | No |
Frequently Asked Questions
How do I get pricing for 20089240?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 20089240?
20089240 is a Buerkert part. KKM Solutions sources Buerkert components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 20089240?
Key specifications include AC voltage: No; Acoustic transmission factor: Yes; Approval type: ATEX, EHEDG, Material-approval-foods seal materials, IECEx, 3-A Sanitary; Batch dosing: No. The full specification table on this page lists every published attribute for this part.
How quickly can 20089240 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
