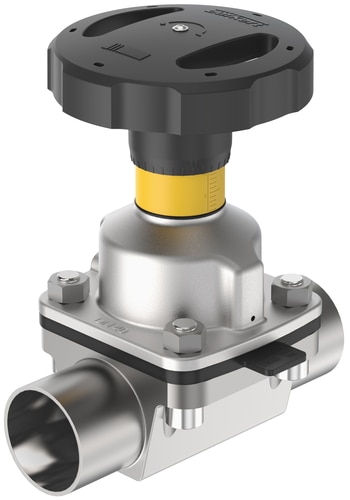

Buerkert Type 2933 2/2-way diaphragm valve man. op. Basic
| Analysis version | No |
|---|---|
| Approval type | Material-approval-foods, Material-approval-pharma-USP Class VI, Material-approval-foods seal materials |
| Bonnet material | PPS (Polyphenylene sulphide) |
| Certification type | Food (EC) 1935/2004 compliant according Manufacturer Declaration, Pharma USP Class VI-compliant, Food - FDA-compliant |
| CIP capable | No |
| Commodity Code | 84818087 |
| Cv value | 6,5 gal/min |
| Diaphragm coupling | Bayonet |
| Diaphragm material | EPDM high-temperature |
| Diaphragm size | 15 |
| End position feedback position | without |
| Factory certification 2.1 Membrane | No |
| Fluidic port connection number | 2 |
| Function | On/off valve |
| Handwheel diameter | 45 mm |
| Interface to actuator | interface LB/diaphragm/body DN 15 |
| Kv value (water) | 8,1 m3/h |
| Main valve operating principle | Diaphragm valve |
| Manual activation material | PPS (Polyphenylene sulphide) |
| Manual actuation stop | No |
| Manufacturer´s test certificate 3.1 included | No |
| Nominal pressure (DIN EN 1333) | PN 10 |
| Nominal Pressure (DIN EN 1759) | Class 150 |
| Nominal pressure max | 10 bar |
| Nominal pressure min | 0 bar |
| Parts free of oil and grease | No |
| Port connection 1 dimensions | d20 |
| Port connection 1 DN | DN 15 - d20 |
| Port connection 1 standard | Not relevant |
| Port connection 1 type | Gluing sleeve |
| Port connection 2 dimensions | d20 |
| Port connection 2 DN | DN 15 - d20 |
| Port connection 2 standard | Not relevant |
| Port connection 2 type | Gluing sleeve |
| Position indicator | optical with scale |
| Product identification | Data matrix code |
| Product sub-group | On/off valves |
| SIP capable | No |
| Stroke limitation | single min-stroke limiter (closing limiter) |
| Temperature environment max | 60 °C |
| Temperature environment min | -10 °C |
| Temperature medium max | 60 °C |
| Temperature medium min | 10 °C |
| Type | 2933 |
| Type label customer data | None |
| Valve body exterior surface | Without processing |
| Valve body internal surface | Without processing |
| Valve body material | PVC (Polyvinyl chloride) |
| Valve function number of switching positions | 2 |
| Weight | 0.84 Lb |
Frequently Asked Questions
How do I get pricing for 20087978?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 20087978?
20087978 is a Buerkert part. KKM Solutions sources Buerkert components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 20087978?
Key specifications include Analysis version: No; Approval type: Material-approval-foods, Material-approval-pharma-USP Class VI, Material-approval-foods seal materials; Bonnet material: PPS (Polyphenylene sulphide); Certification type: Food (EC) 1935/2004 compliant according Manufacturer Declaration, Pharma USP Class VI-compliant, Food - FDA-compliant. The full specification table on this page lists every published attribute for this part.
How quickly can 20087978 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Buerkert Buerkert Type 2933 2/2-way diaphragm valve man. op. Basic
Buerkert Buerkert Type 2933 2/2-way diaphragm valve man. op. Basic
Buerkert Buerkert Type 2933 2/2-way diaphragm valve man. op. Basic

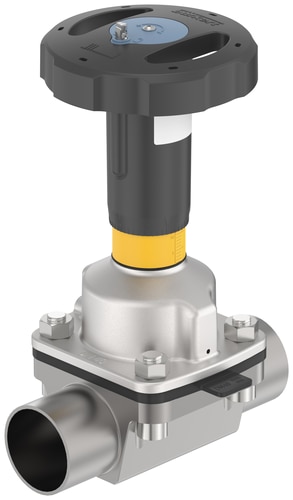

Buerkert Buerkert Type 2973 2/2-way diaphragm valve man. op. FullFct
