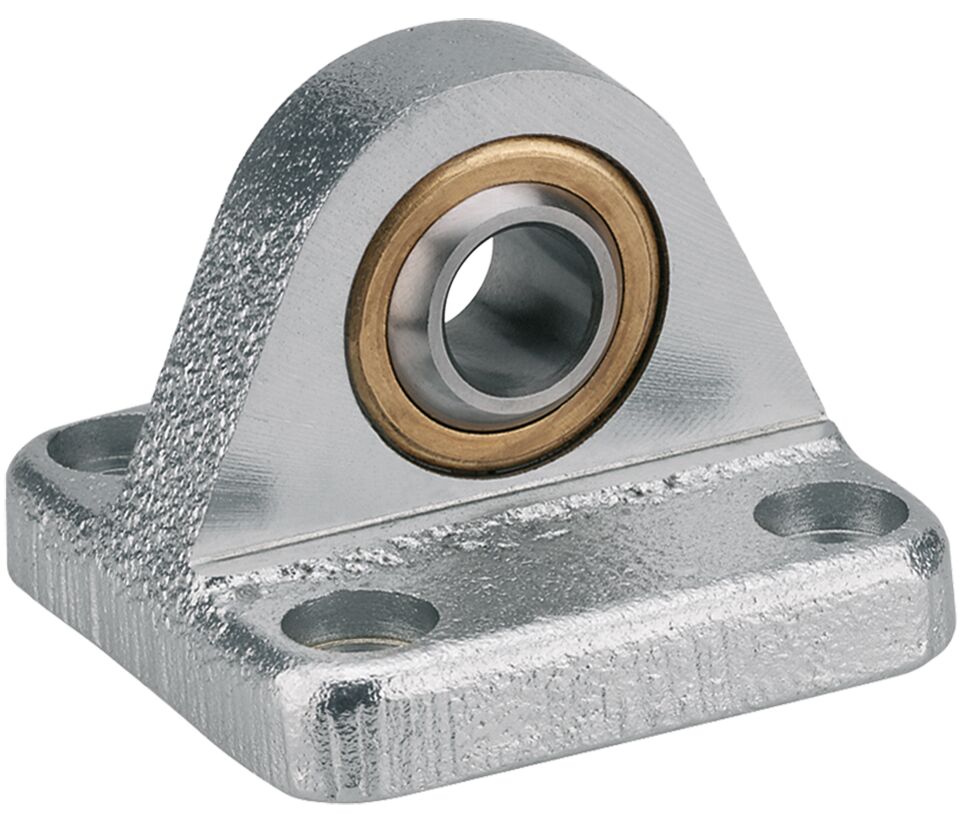

Bosch Rexroth SPHERICAL PLAIN BEARING B EMC100 &
Bosch Rexroth R349947400 - Linear Motion & Guides - Weight (Kg): 0.8; Dimension h [mm]: 15.0; Nominal size [mm]: 100.
Bosch Rexroth R349947400 is a Linear Motion & Guides catalog item from Bosch Rexroth. The manufacturer's published data for this part number specifies Weight (Kg): 0.8 and Dimension h [mm]: 15.0.
The specification set recorded for this part number covers Nominal size [mm]: 100; Dimension E [mm]: 115; Fastening elements for electromechanical cylinders: Swivel bearing; Material of electromechanical cylinders: Aluminum; Dimension CN H7 [mm]: 20; Dimension D1 H13 [mm]: 11; Dimension ER [mm]: 30; Dimension EU [mm]: 18; Dimension FL [mm]: 41; Dimension FL tolerance [mm]: -0.2; Dimension I2 [mm]: 10; Dimension Tg [mm]: 89. See the Specifications tab on this page for the full technical table.
| Dimension CN H7 [mm] | 20 |
|---|---|
| Dimension D1 H13 [mm] | 11 |
| Dimension D2 H13 [mm] | 18 |
| Dimension E [mm] | 115 |
| Dimension EN [mm] | 25 |
| Dimension EN tolerance [mm] | -0.1 |
| Dimension ER [mm] | 30 |
| Dimension EU [mm] | 18 |
| Dimension FL [mm] | 41 |
| Dimension FL tolerance [mm] | -0.2 |
| Dimension h [mm] | 15.0 |
| Dimension hex socket head cap screw DIN 912 thread diameter | M10 |
| Dimension hex socket head cap screws DIN 912 | M10x20 mm |
| Dimension I2 [mm] | 10 |
| Dimension l3 min. [mm] | 80 |
| Dimension R [mm] | 25 |
| Dimension Tg [mm] | 89 |
| Dimension TG tolerance [mm] | ±0.2 |
| Fastening elements for electromechanical cylinders | Swivel bearing |
| Hex socket head cap screw DIN 912 screw Dimension, length [mm] | 20 |
| Material of electromechanical cylinders | Aluminum |
| Max. dynamic load [bar] | 22900 |
| Nominal size [mm] | 100 |
| Weight (Kg) | 0.8 |
Frequently Asked Questions
How do I get pricing for R349947400?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R349947400?
R349947400 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R349947400?
Key specifications include Dimension CN H7 [mm]: 20; Dimension D1 H13 [mm]: 11; Dimension D2 H13 [mm]: 18; Dimension E [mm]: 115. The full specification table on this page lists every published attribute for this part.
How quickly can R349947400 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

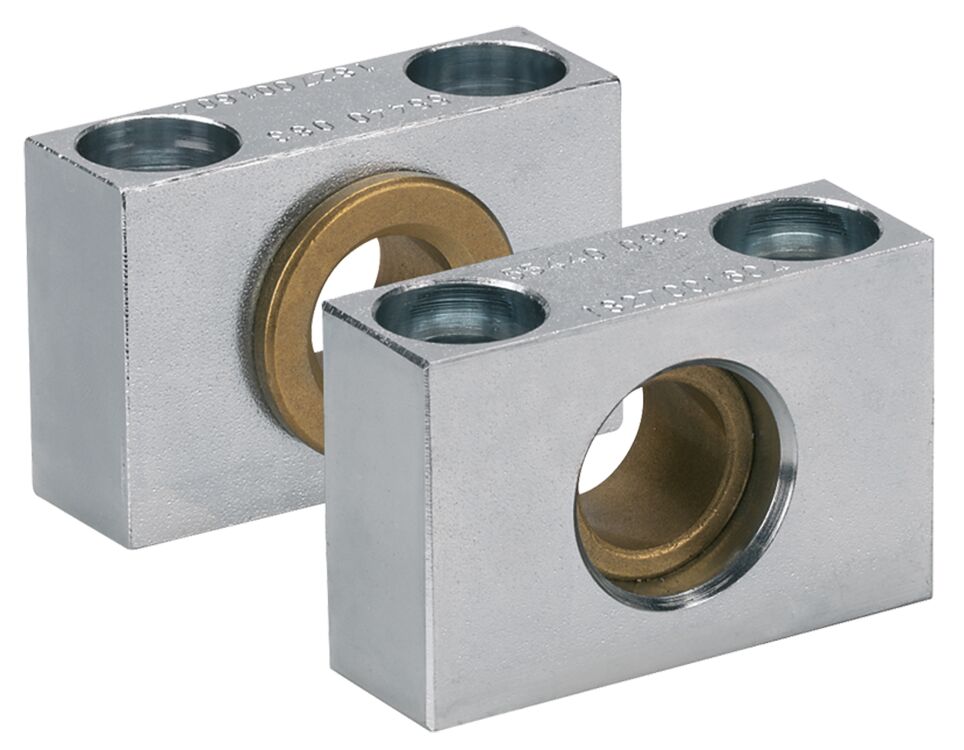

Bosch Rexroth Bosch Rexroth BEARING EMC100 &
Bosch Rexroth Bosch Rexroth DEEP-GROOVE BALL BEARING DIN625-6207-2RS
Bosch Rexroth Bosch Rexroth DEEP-GROOVE BALL BEARING DIN625-6205-2RS

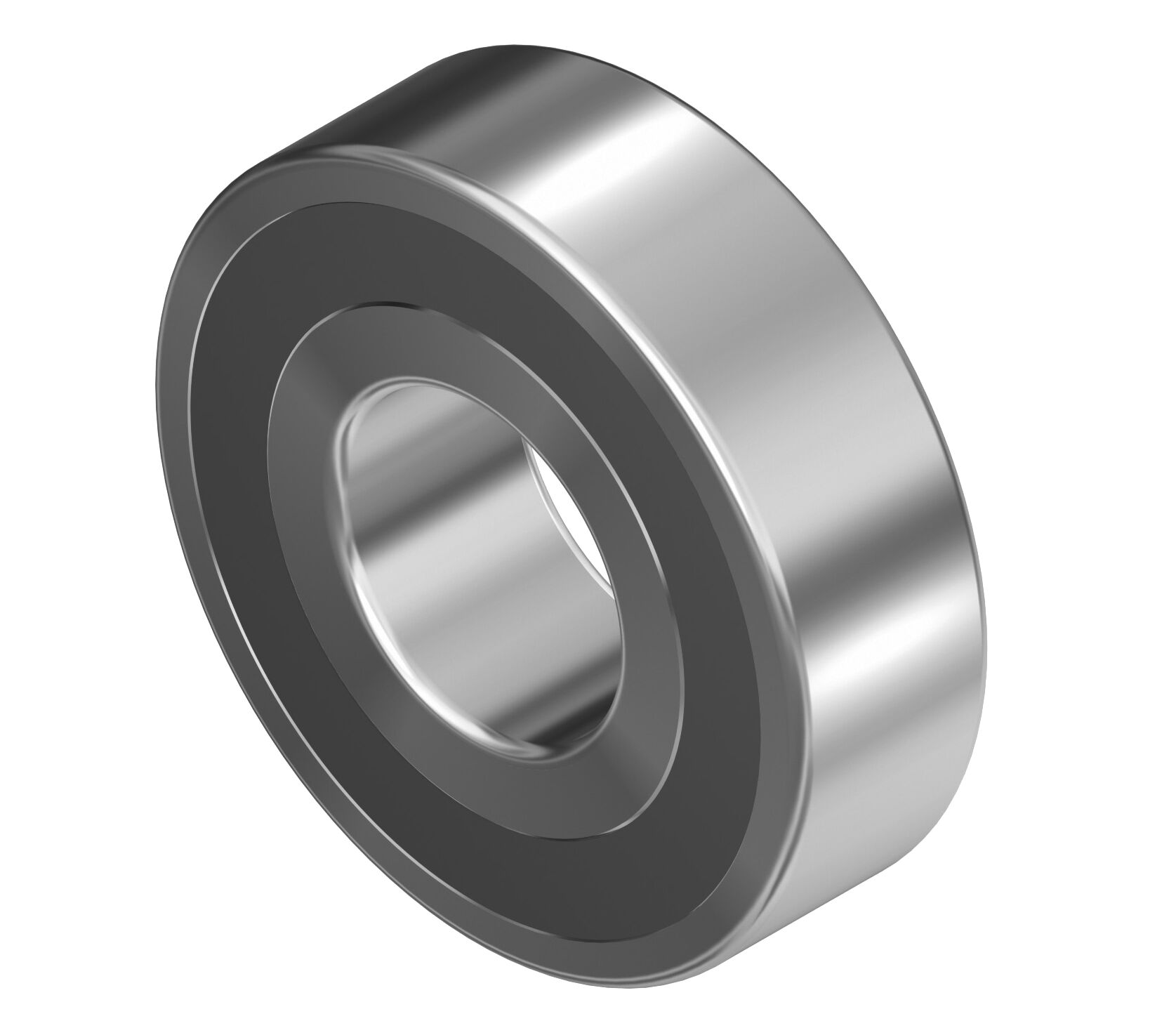

Bosch Rexroth Bosch Rexroth DEEP-GROOVE BALL BEARING DIN625-6203-2RS

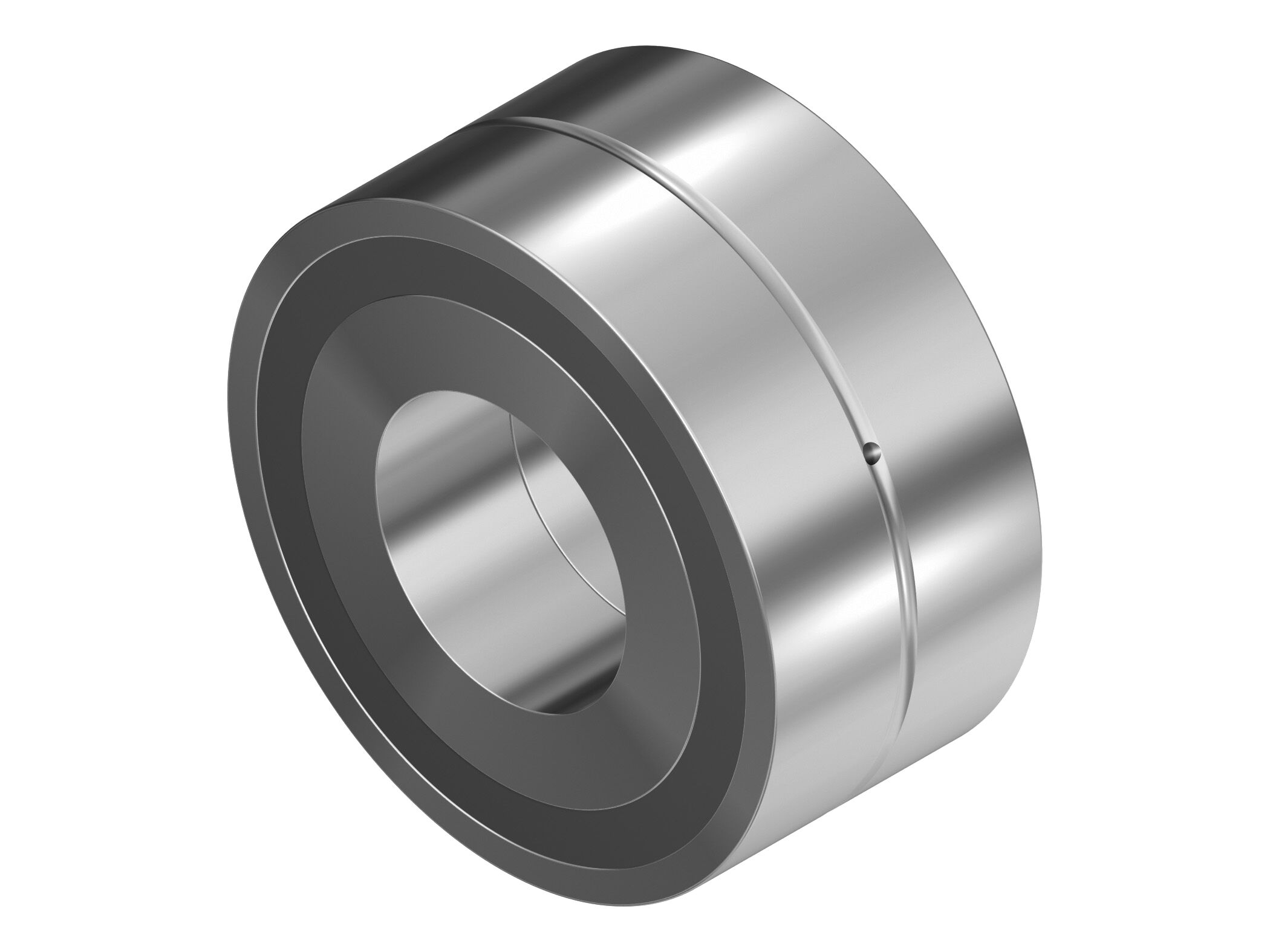

Bosch Rexroth Bosch Rexroth ANGULAR CONTACT THRUST BALL BEARING LGN-B-1747
