Bosch Rexroth SPHERICAL PLAIN BEARING C EMC50 &
Bosch Rexroth R349946500 - Linear Motion & Guides - Weight (Kg): 0.48; Nominal size [mm]: 50; Dimension H1 (profiled rail systems) [mm]: 23.
The Bosch Rexroth R349946500 is part of the Linear Motion & Guides range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 0.48 and Nominal size [mm]: 50.
Published specifications for this part include Dimension H1 (profiled rail systems) [mm]: 23; Dimension H2 tolerance [mm]: ±1; Fastening elements for electromechanical cylinders: Swivel bearing; Material of electromechanical cylinders: Cast iron with spheroidal graphite; Dimension CN H7 [mm]: 16; Dimension EU [mm]: 15; Dimension H2 (profiled rail systems) [mm]: 11; Surface finishing: galvanized; Dimension CH JS15 [mm]: 45; Dimension EN [mm]: 21; Dimension EN tolerance [mm]: -1; Dimension ER max. [mm]: 21. The complete technical table is shown in the Specifications tab on this page.
| Dimension CH JS15 [mm] | 45 |
|---|---|
| Dimension CN H7 [mm] | 16 |
| Dimension EN [mm] | 21 |
| Dimension EN tolerance [mm] | -1 |
| Dimension ER max. [mm] | 21 |
| Dimension EU [mm] | 15 |
| Dimension G1 JS14 [mm] | 33 |
| Dimension G2 JS14 [mm] | 30 |
| Dimension G3 max. [mm] | 45 |
| Dimension H1 (profiled rail systems) [mm] | 23 |
| Dimension H2 (profiled rail systems) [mm] | 11 |
| Dimension H2 tolerance [mm] | ±1 |
| Dimension K1 JS14 [mm] | 50 |
| Dimension K2 max. [mm] | 65 |
| Dimension S H13 [mm] | 9 |
| Fastening elements for electromechanical cylinders | Swivel bearing |
| Material of electromechanical cylinders | Cast iron with spheroidal graphite |
| Nominal size [mm] | 50 |
| Surface finishing | galvanized |
| Weight (Kg) | 0.48 |
Frequently Asked Questions
How do I get pricing for R349946500?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R349946500?
R349946500 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R349946500?
Key specifications include Dimension CH JS15 [mm]: 45; Dimension CN H7 [mm]: 16; Dimension EN [mm]: 21; Dimension EN tolerance [mm]: -1. The full specification table on this page lists every published attribute for this part.
How quickly can R349946500 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

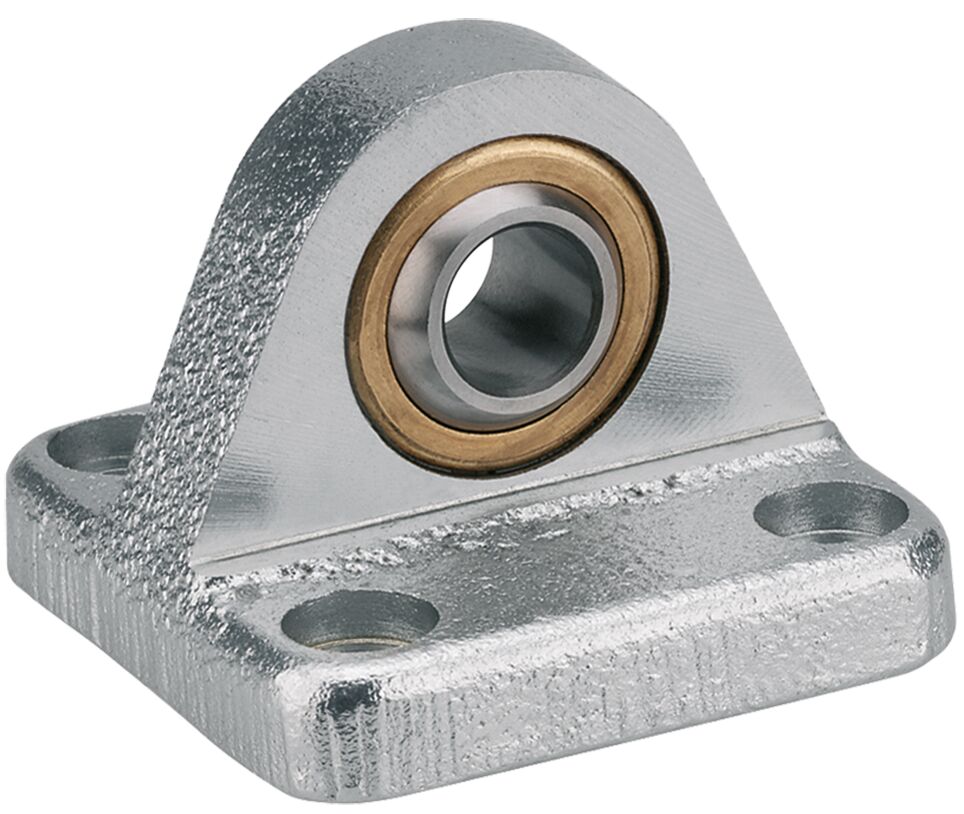

Bosch Rexroth Bosch Rexroth SPHERICAL PLAIN BEARING B EMC32 &

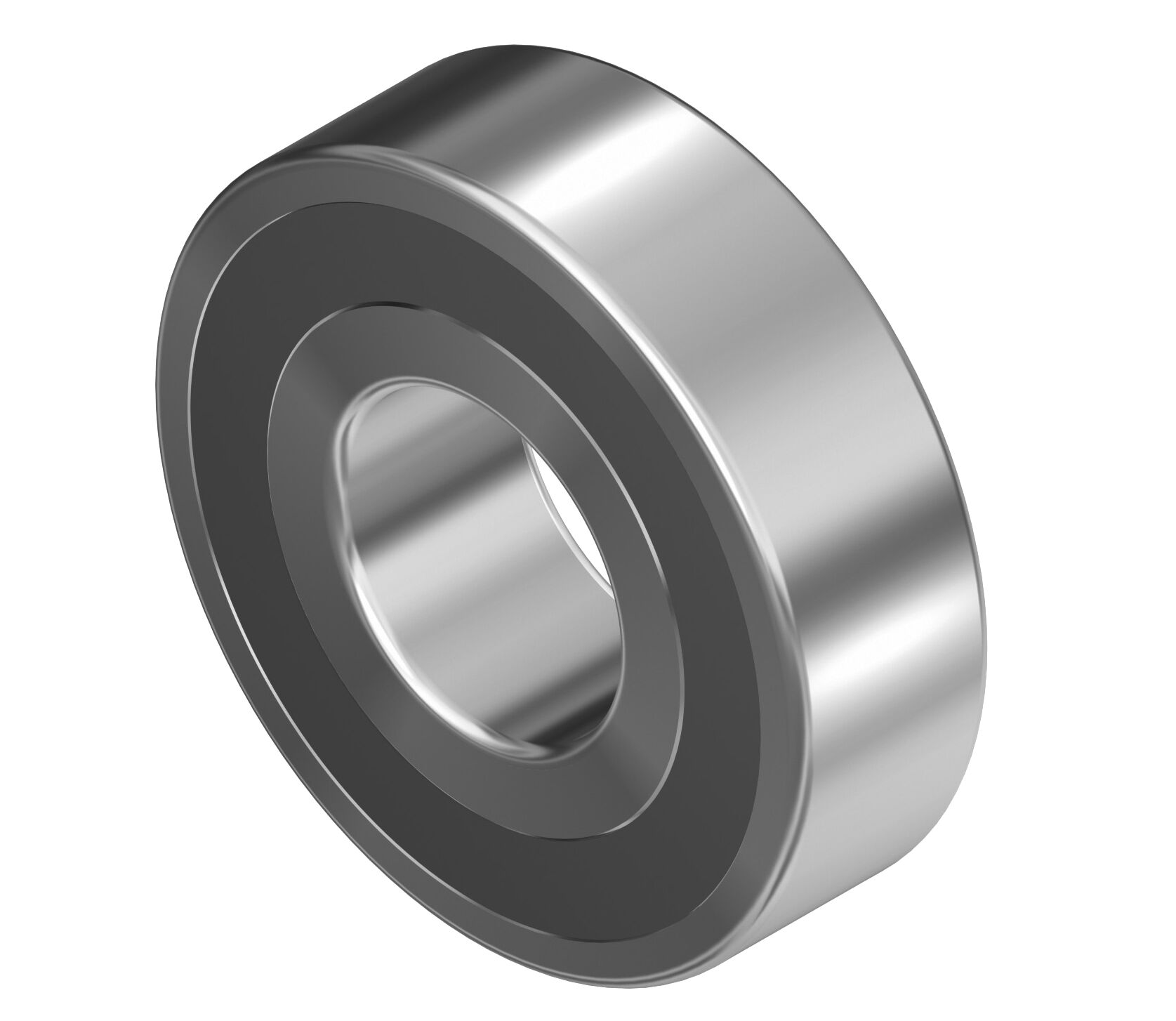

Bosch Rexroth Bosch Rexroth DEEP-GROOVE BALL BEARING DIN625-6210-2RS

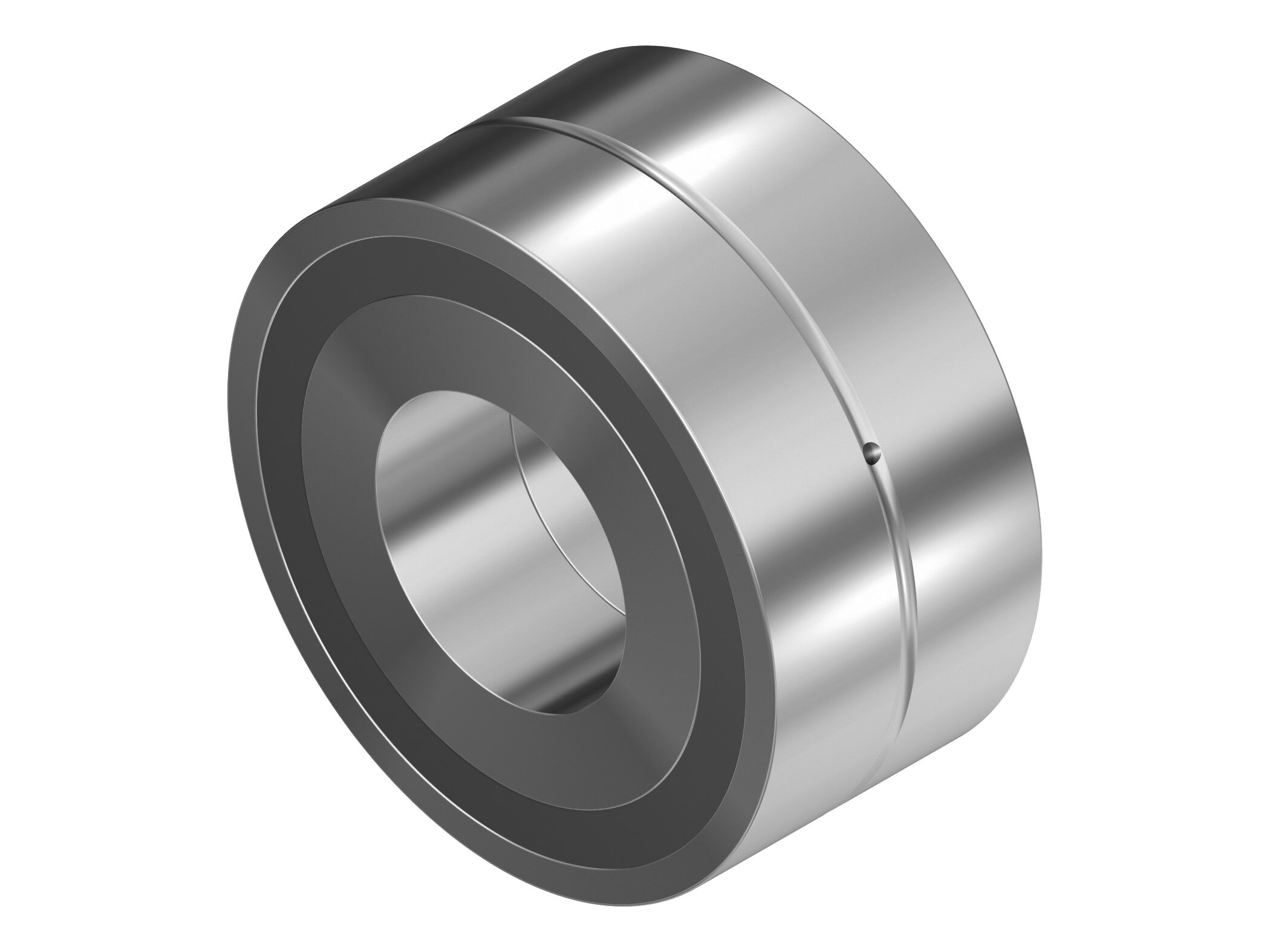

Bosch Rexroth Bosch Rexroth ANGULAR CONTACT THRUST BALL BEARING LGN-B-1034
Bosch Rexroth Bosch Rexroth BALL RUNNER BLOCK CARBON STEEL KWE-030-SLH-C2-H-1

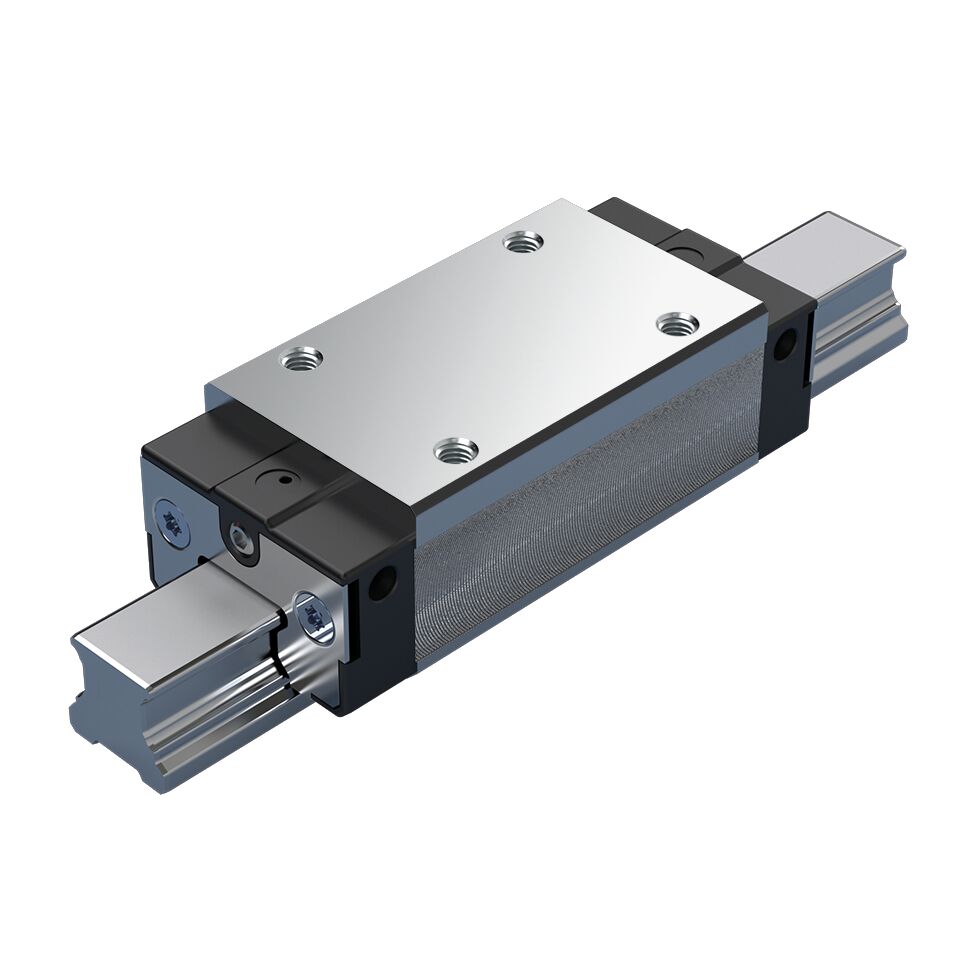

Bosch Rexroth Bosch Rexroth BALL RUNNER BLOCK CARBON STEEL KWE-045-SLH-C1-P-1
