Bosch Rexroth BALL NUT ZEV-E-S 32X5RX3,5-5
Screw-in nut ZEV-E-S with standard seal and standard axial clearance. Nominal diameter d0 = 32. Lead P = 5 (right). Ball diameter Dw = 3.5. Number of ball track turns i = 5
| Bearing temperature max [°C] | +80 |
|---|---|
| Bearing temperature min [°C] | -15 |
| Category | B |
| Dimension D1 [mm] | 31 |
| Dimension D1 h10 [mm] | 54 |
| Dimension D2 [mm] | 28.4 |
| Dimension D4 [mm] | 2.7 |
| Dimension D8 [mm] | 8 |
| Dimension G1 [mm] | M48x1,5 |
| Dimension L [mm] | 69 |
| Dimension L tolerance [mm] | ±0.3 |
| Dimension L15 [mm] | 19 |
| Dimension L7 [mm] | 17.5 |
| Direction of lead | Right |
| Dynamic load capacity C [N] | 31700.0 |
| Maximum operating temperature [°C] | +80 |
| Maximum permissible linear speed vmax (m/min) [m/min] | 18.8 |
| Minimum operating temperature [°C] | -10 |
| Nominal size [mm] | 32 x 5R x 3,5 - 5 |
| Note: dynamic load capacity C | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes). |
| Note: maximum permissible speed vmax | See "Characteristic speed d<sub>0 </sub>• n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed n<sub>cr</sub>" (see General Technical Notes and Information, "Project planning notes") |
| Note: permissible operating temperature (min. ... max.) | Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case. |
| Note: static load capacity C0 | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes). |
| Nut type | ZEV-E-S screw-in nuts |
| Operating temperature (min. … max.) | -10 °C ... +80 °C |
| Screw drive seal | With low-friction seal |
| Series | Standard series |
| Static load capacity C0 [N] | 50600.0 |
| Storage temperature (min. … max.) | -15 °C ... +80 °C |
| Weight (Kg) | 0.58 |
Frequently Asked Questions
How do I get pricing for R254230005?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R254230005?
R254230005 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R254230005?
Key specifications include Bearing temperature max [°C]: +80; Bearing temperature min [°C]: -15; Category: B; Dimension D1 [mm]: 31. The full specification table on this page lists every published attribute for this part.
How quickly can R254230005 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth RETAINING RING DIN472-32X1,2

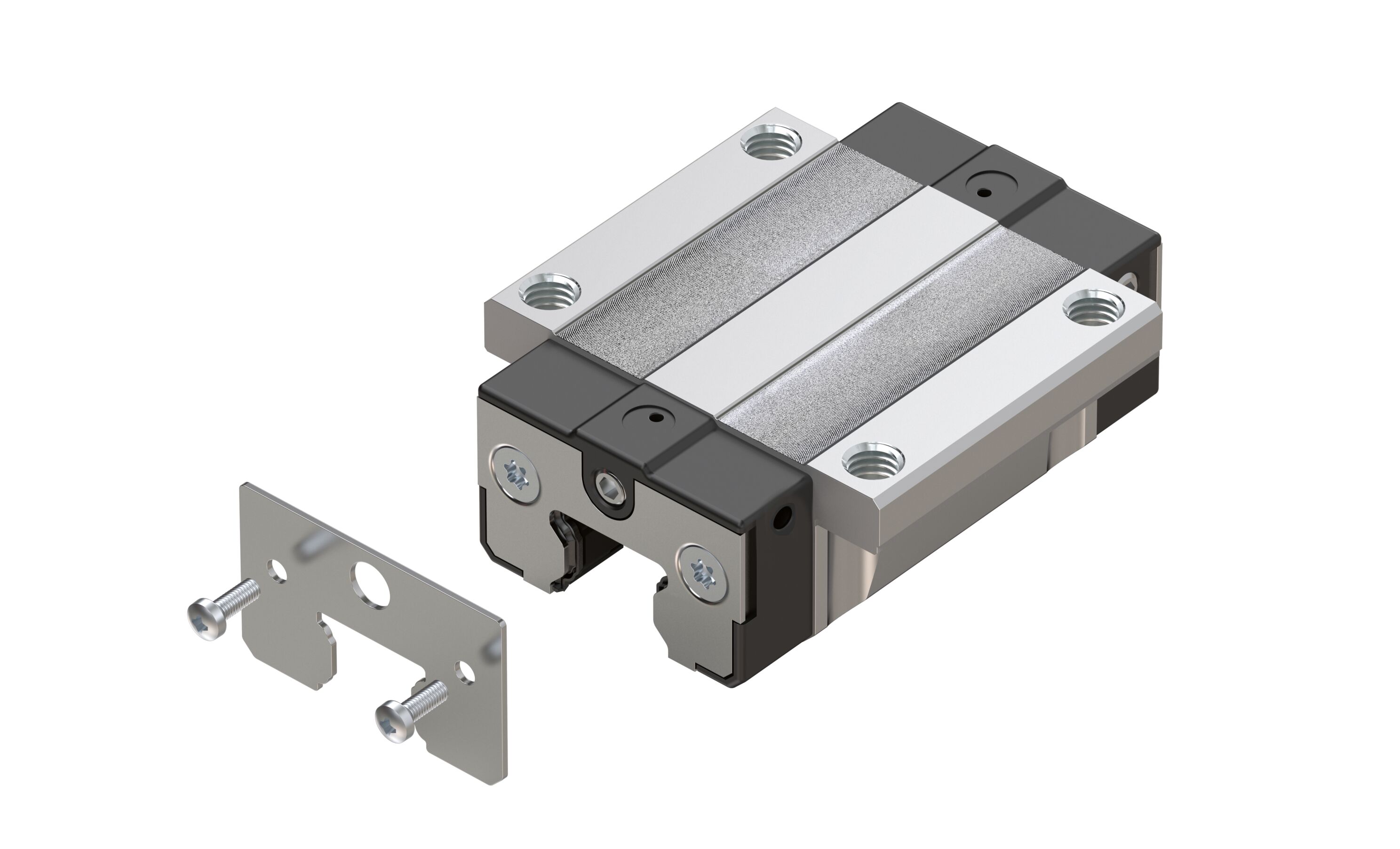

Bosch Rexroth Bosch Rexroth SCRAPER PLATE 35 BSCL
