Bosch Rexroth BALL GUIDE RAIL CARBON STEEL KSE-020-SNS-P
The Compact Line ball guide rail is precise and characterized by the following product features:. Size 20. Format SNS: Width = slimline, length = normal, height = standard. Guide rail made of carbon steel CS. Fastener MA: Bolting from above. Cover AK: Plastic caps. Accuracy class precise. Rail in factory length
| Accuracy class | P - Precise |
|---|---|
| Dimension [d] [mm] | 9.4 |
| Dimension A2 (profiled rail systems) [mm] | 20 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 17 |
| Dimension N6 (profiled rail systems) [mm] | 10 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S5 (profiled rail system) [mm] | 6 |
| Dimension t [mm] | 60 |
| Dimension T1 max (profiled rail systems) [mm] | 50 |
| Dimension T1 min [mm] | 10 |
| Dimension T1 s (profiled rail systems) [mm] | 28 |
| Format | SNS - Standard guide rail |
| Guide rail mounting | For bolting from above |
| Mass m (kg/m) [kg/m] | 1.8 |
| Material (profiled rail systems) | Carbon steel |
| Max. length Lmax [mm] | 4150.0 |
| Nominal size [mm] | 20 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Number of sections | Factory length |
| Pitch T guide rail [mm] | 60 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Version | Ball rail system |
| Weight (Kg) | 1.8 |
Frequently Asked Questions
How do I get pricing for R205580251?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R205580251?
R205580251 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R205580251?
Key specifications include Accuracy class: P - Precise; Dimension [d] [mm]: 9.4; Dimension A2 (profiled rail systems) [mm]: 20; Dimension H2 without cover strip (profiled rail systems) [mm]: 17. The full specification table on this page lists every published attribute for this part.
How quickly can R205580251 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth BALL GUIDE RAIL CARBON STEEL KSE-030-SNS-N
Bosch Rexroth Bosch Rexroth BALL GUIDE RAIL CARBON STEEL KSE-020-SNS-H-MA-AK
Bosch Rexroth Bosch Rexroth BALL GUIDE RAIL CARBON STEEL KSE-035-SNS-H-MA-AK

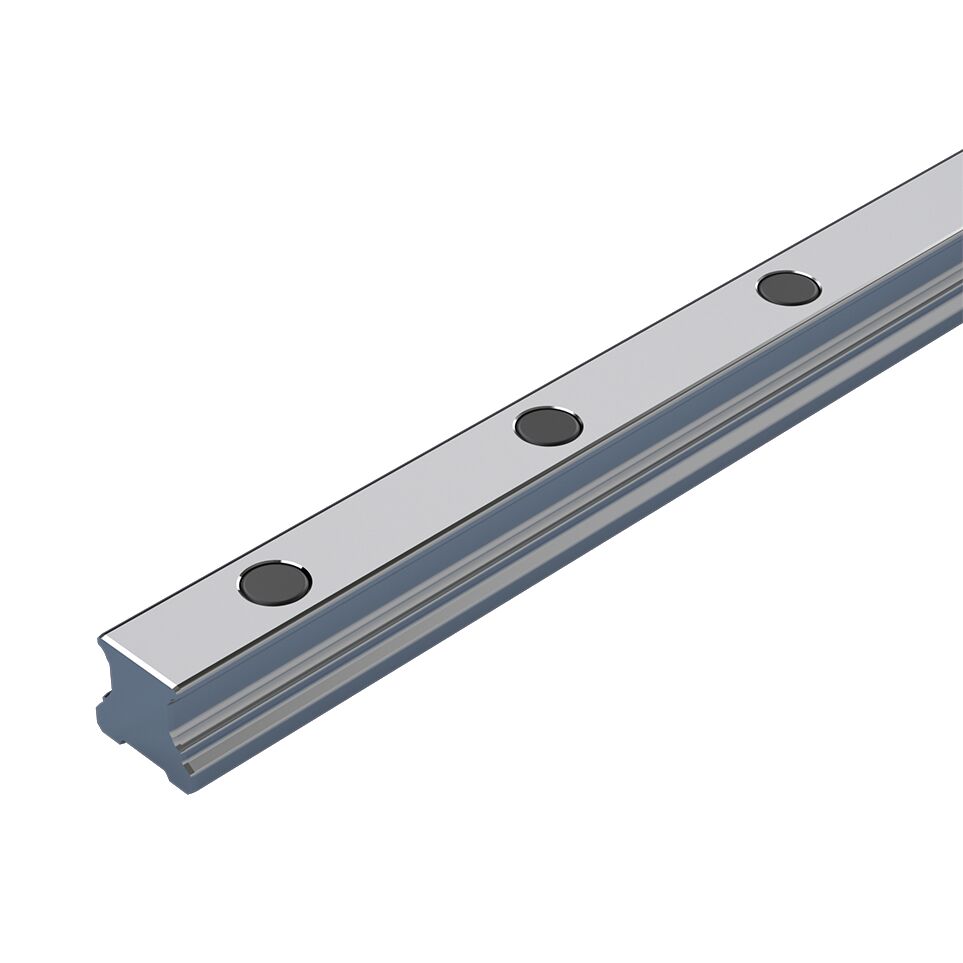

Bosch Rexroth Bosch Rexroth BALL GUIDE RAIL CARBON STEEL KSE-020-SNS-N-MA-AK
