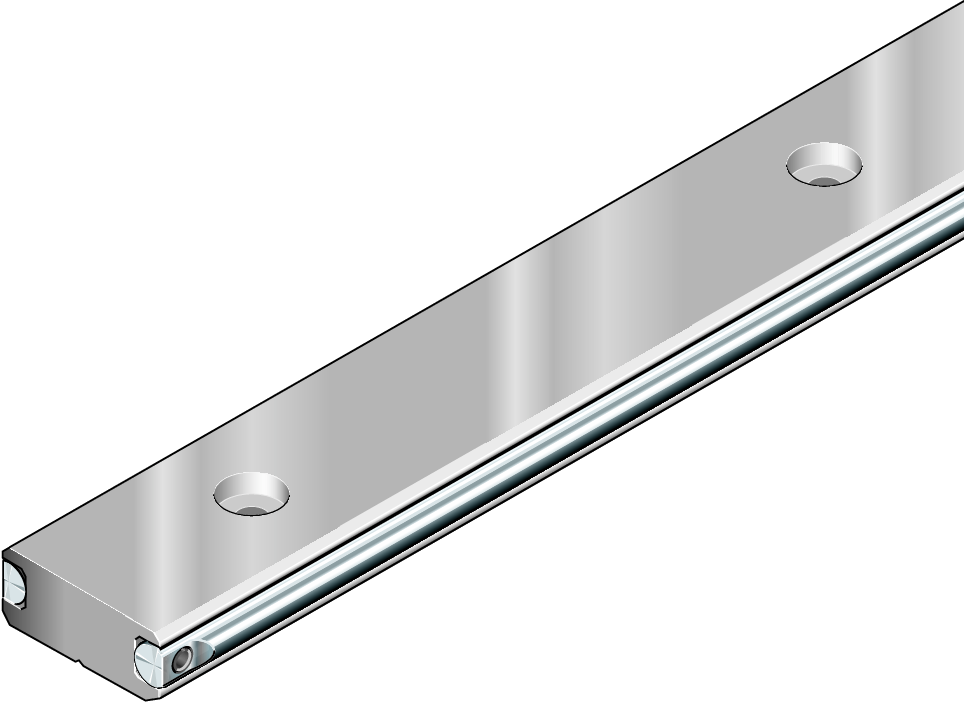

Bosch Rexroth CAM ROLLER RAIL 32-2 F &
The cam roller guide rail is characterized by the following product features:. Size 32. Format SNN: Width = slimline, length = normal, height = low. Guide rails made of aluminum with secured shafts made of corrosion-resistant steel. Fastener MA: Bolting from above. Cover 00: Without cover. Double the number of holes. Number of partial sections: one-piece. Rail in standard version
| Dimension [d] [mm] | 11 |
|---|---|
| Dimension 2nd grade area moment, y-axis ly [mm⁴] | 2163 |
| Dimension 2nd grade area moment, z-axis lz [mm⁴] | 11412 |
| Dimension A (profiled rail systems) [mm] | 32 |
| Dimension A1 max (profiled rail system) [mm] | 19 |
| Dimension h [mm] | 10.0 |
| Dimension H1 (profiled rail systems) [mm] | 3.5 |
| Dimension H2 (profiled rail systems) [mm] | 5 |
| Dimension L [mm] | 3500 |
| Dimension S1 (profiled rail systems) [mm] | 6.5 |
| Dimension S2 [mm] | 6 |
| Dimension section modulus, y-axis Wy [mm³] | 433 |
| Dimension section modulus, z-axis Wz [mm³] | 804 |
| Dimension t [mm] | 62.5 |
| Dimension T1 min [mm] | 13 |
| Dimension T1 s (profiled rail systems) [mm] | 29.25 |
| Footnote Dimension L | Up to 3500 mm, the guideways are made from one-piece precision steel shafts |
| Guide rail mounting | For bolting from above |
| Mass m (kg/m) [kg/m] | 1.1 |
| Maximum operating temperature [°C] | +80 |
| Minimum operating temperature [°C] | -20 |
| Nominal size [mm] | 32-2 |
| Note: maximum length Lmax | Guide tracks up to 3500 mm are made of one-piece precision steel shafts. |
| Operating temperature (min. … max.) | -20 °C ... +80 °C |
| Pitch T guide rail [mm] | 62.5 |
| Recommended rail length (formula) | L = n• T‒ 4 mm |
| Version | Cam roller guide |
| Weight (Kg) | 0.000000 |
