Bosch Rexroth CAM ROLLER RAIL 32-2 &
The cam roller guide rail is characterized by the following product features:. Size 32. Format SNS: Width = slimline, length = normal, height = standard. Guide rails made of aluminum with secured shafts made of corrosion-resistant steel. Fastener MA: Bolting from above. Cover 00: Without cover. Double the number of holes. Number of partial sections: one-piece. Rail in standard version
| Dimension [d] [mm] | 11 |
|---|---|
| Dimension 2nd grade area moment, y-axis ly [mm⁴] | 14551 |
| Dimension 2nd grade area moment, z-axis lz [mm⁴] | 19272 |
| Dimension A (profiled rail systems) [mm] | 32 |
| Dimension A1 (profiled rail systems) [mm] | 24 |
| Dimension h [mm] | 20.0 |
| Dimension H1 (profiled rail systems) [mm] | 9.5 |
| Dimension H2 (profiled rail systems) [mm] | 15 |
| Dimension L [mm] | 3500 |
| Dimension S1 (profiled rail systems) [mm] | 6.5 |
| Dimension S2 [mm] | 6 |
| Dimension section modulus, y-axis Wy [mm³] | 1399 |
| Dimension section modulus, z-axis Wz [mm³] | 1357 |
| Dimension t [mm] | 62.5 |
| Dimension T1 min [mm] | 13 |
| Dimension T1 s (profiled rail systems) [mm] | 29.25 |
| Footnote Dimension L | Up to 3500 mm, the guideways are made from one-piece precision steel shafts |
| Guide rail mounting | For bolting from above |
| Mass m (kg/m) [kg/m] | 1.6 |
| Material (profiled rail systems) | Aluminum profile and corrosion-resistant steel shafts |
| Maximum operating temperature [°C] | +80 |
| Minimum operating temperature [°C] | -20 |
| Nominal size [mm] | 32-2 |
| Note: maximum length Lmax | Guide tracks up to 3500 mm are made of one-piece precision steel shafts. |
| Operating temperature (min. … max.) | -20 °C ... +80 °C |
| Pitch T guide rail [mm] | 62.5 |
| Recommended rail length (formula) | L = n• T‒ 4 mm |
| Version | Cam roller guide |
| Weight (Kg) | 0.000000 |
Frequently Asked Questions
How do I get pricing for R192123231?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R192123231?
R192123231 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R192123231?
Key specifications include Dimension [d] [mm]: 11; Dimension 2nd grade area moment, y-axis ly [mm⁴]: 14551; Dimension 2nd grade area moment, z-axis lz [mm⁴]: 19272; Dimension A (profiled rail systems) [mm]: 32. The full specification table on this page lists every published attribute for this part.
How quickly can R192123231 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

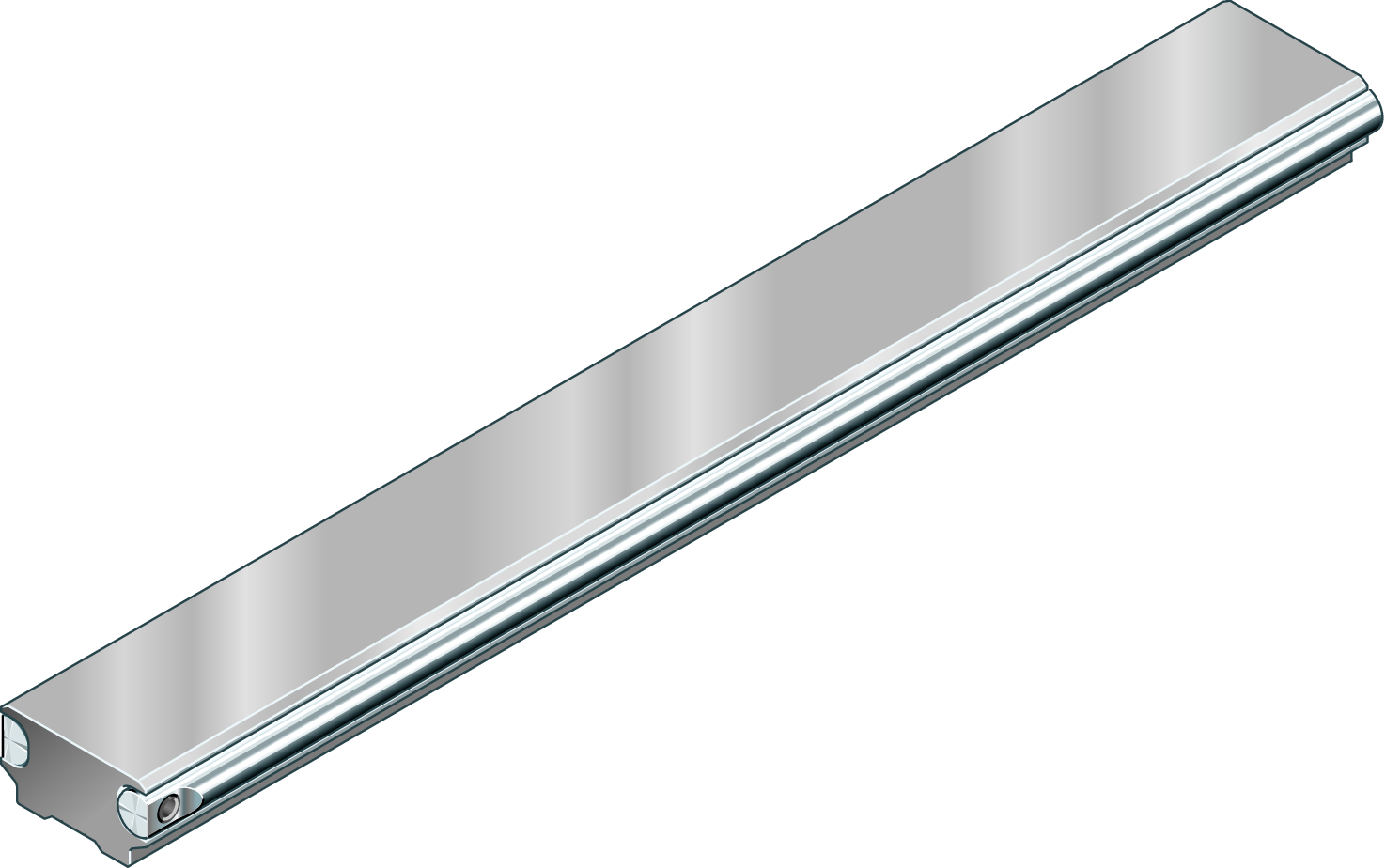

Bosch Rexroth Bosch Rexroth CAM ROLLER RAIL 42-0

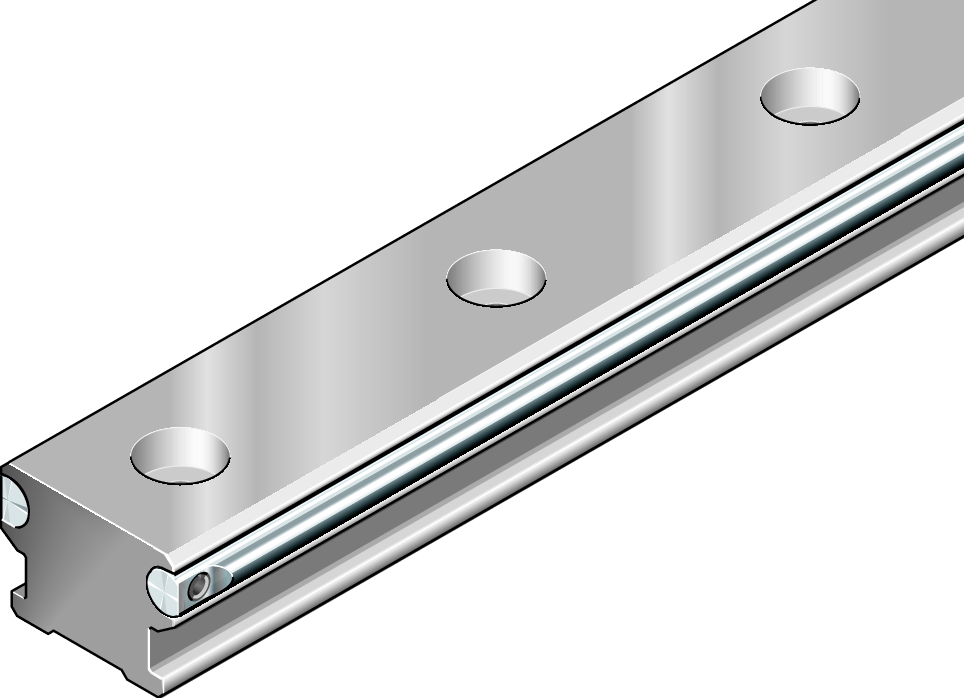

Bosch Rexroth Bosch Rexroth CAM ROLLER RAIL 52-4 &

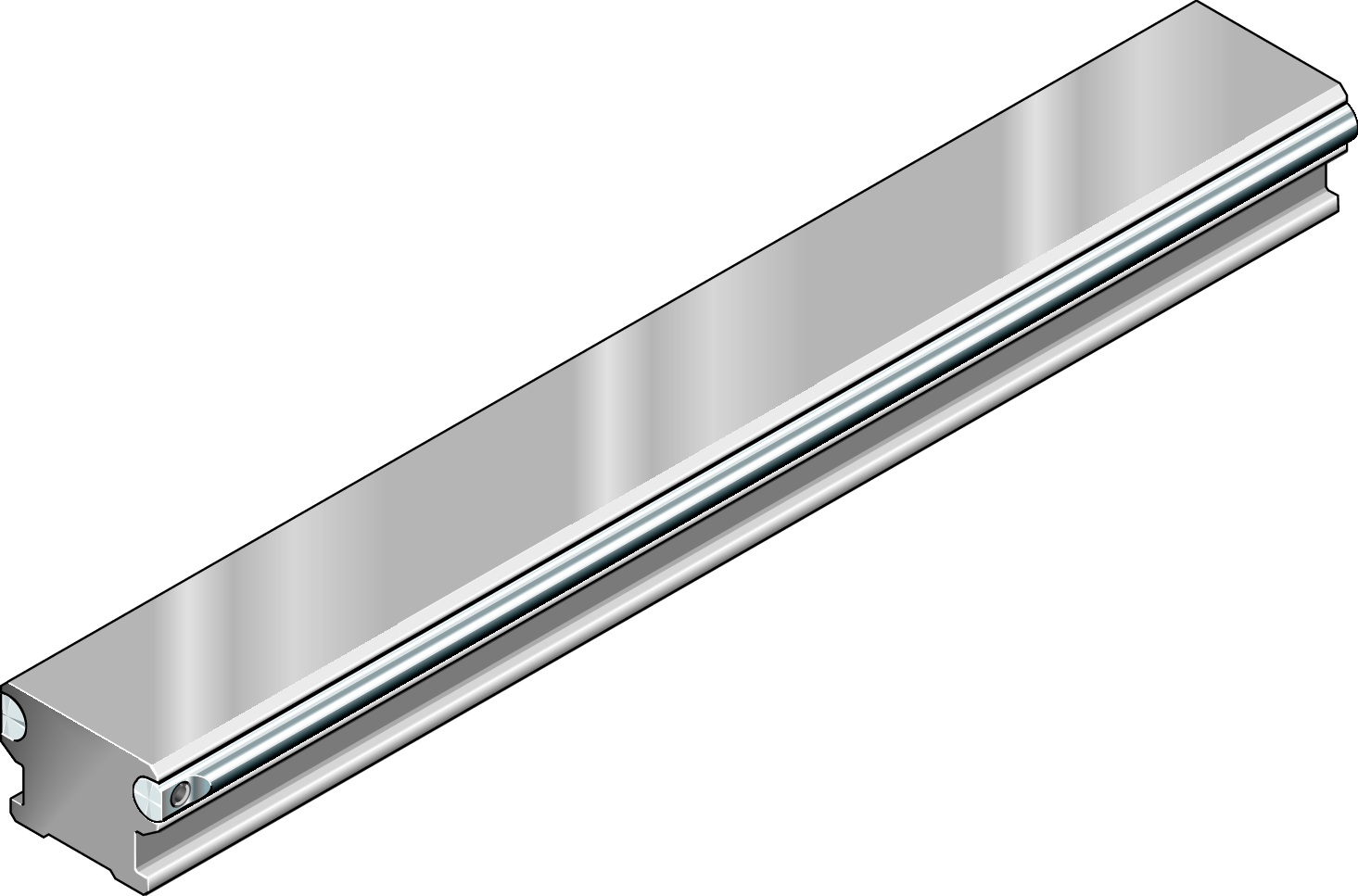

Bosch Rexroth Bosch Rexroth CAM ROLLER RAIL 25-0 &

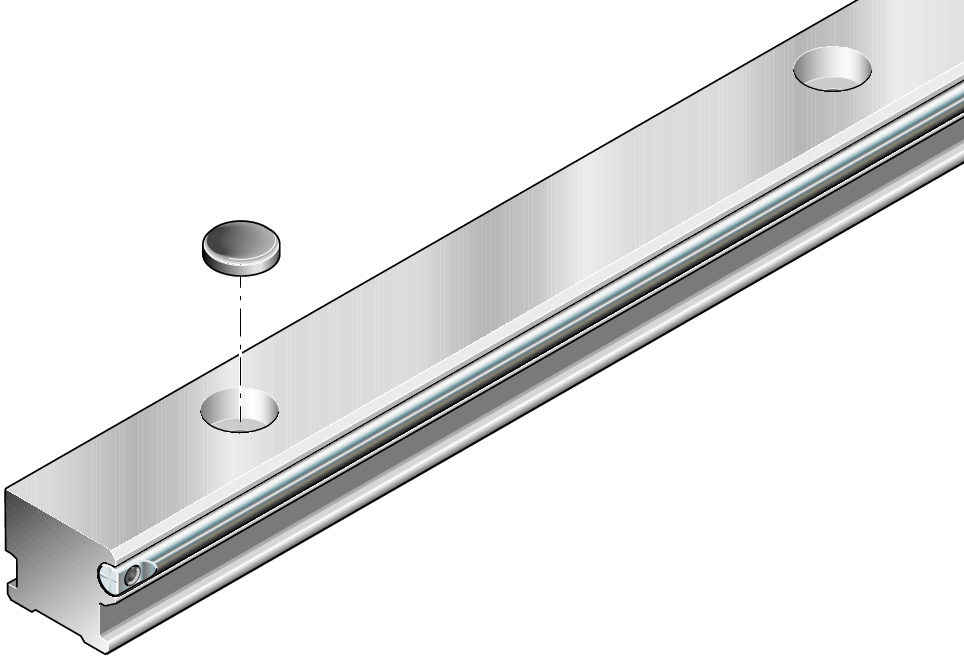

Bosch Rexroth Bosch Rexroth CAM ROLLER RAIL 52-2 H &

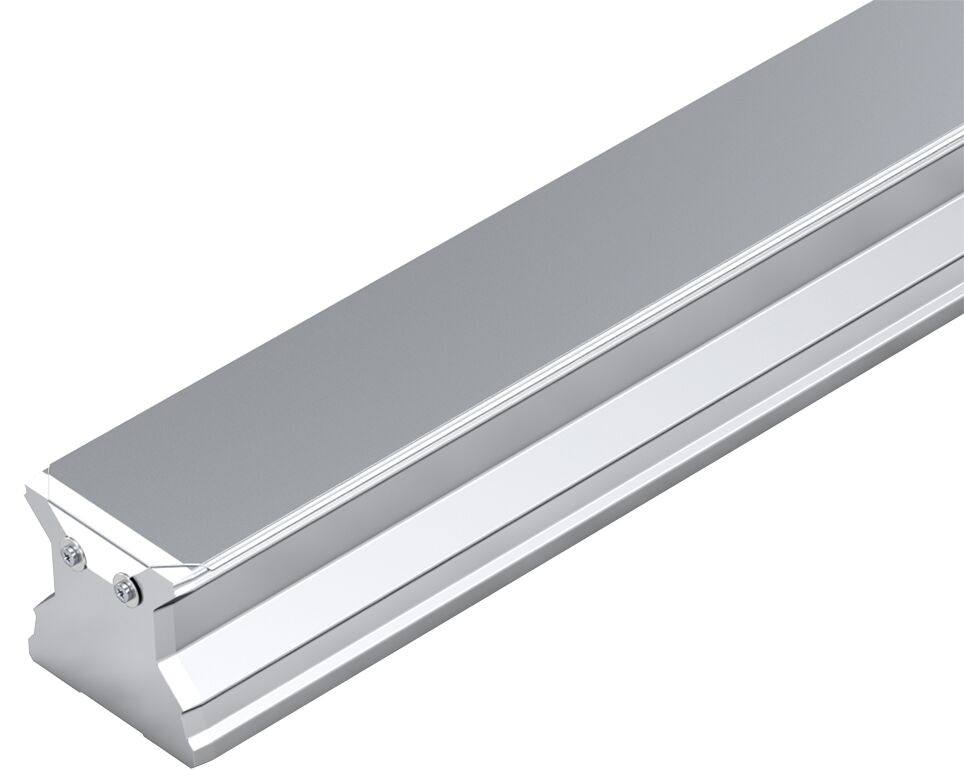

Bosch Rexroth Bosch Rexroth ROLLER GUIDE RAIL RESIST CR RSA-125-SNS-H-MA-SC
