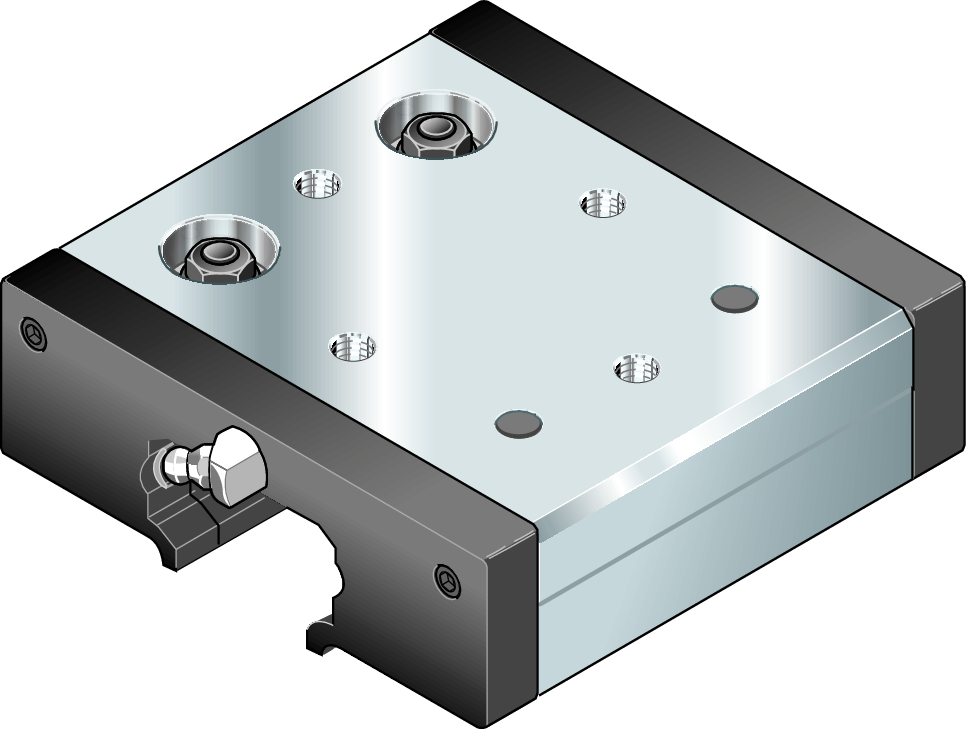

Bosch Rexroth CAM ROLLER RUNNER BLOCK ALUMINUM LWA-052-SNS-FH-E-0
The cam roller runner block is characterized by the following product features:. Size 52. Format SNS: Width = slimline, length = normal, height = standard. Runner block body made of aluminum. High load carrying capacity. Accuracy class E: Economic. Without preservation. Without initial lubrication. Attachment element, left (front reference edge): front lube unit with low-friction seal. Attachment element, right (front reference edge): Front lube unit with low-friction seal. Lube nipple included. Standard version. Overall length of the runner block = 202. Interchangeable element
| Dimension A (profiled rail systems) [mm] | 145 |
|---|---|
| Dimension B (profiled rail systems) [mm] | 186 |
| Dimension B1 [mm] | 154 |
| Dimension B2 (profiled rail systems) [mm] | 16 |
| Dimension E1 [mm] | 105 |
| Dimension E2 (profiled rail systems) [mm] | 110 |
| Dimension E3 (profiled rail systems) [mm] | 90 |
| Dimension E4 [mm] | 105 |
| Dimension h [mm] | 60.4 |
| Dimension H1 (profiled rail systems) [mm] | 24 |
| Dimension H2 (profiled rail systems) [mm] | 35.3 |
| Dimension H3 [mm] | 51 |
| Dimension SW1 [mm] | 16 |
| Dimension SW2 [mm] | 4 |
| Dimension SW3 [mm] | 6 |
| Height of runner block [mm] | 24.0 |
| Height runner block with guide rail [mm] | 60.4 |
| Length of runner block [mm] | 186.0 |
| Lubrication | Without lubrication (dry) |
| Maximum acceleration rate amax [m/s²] | 50.0 |
| Maximum dynamic load in y-direction Fy max [N] | 4500 |
| Maximum dynamic load in z-direction Fz max [N] | 2400 |
| Maximum operating temperature [°C] | +80 |
| Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm] | 50 |
| Maximum permissible dynamic torsional moment about the y-axis My max [Nm] | 126 |
| Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm] | 236 |
| Maximum permissible linear speed vmax [m/s] | 10.0 |
| Maximum static load due to a resulting force in the y-direction F0y max [N] | 4500 |
| Minimum operating temperature [°C] | -20 |
| Nominal size [mm] | 52 |
| Note: Maximum dynamic load in y-direction Fy max | Observe the permissible lateral force of the guide rail (see instruction for mounting). |
| Note: maximum permissible speed vmax | For average load. |
| Note: maximum static load due to a resulting force in y-direction F0y max | Observe the permissible lateral force of the guide rail (see notes for mounting). |
| Operating temperature (min. … max.) | -20 °C ... +80 °C |
| Preload class | C0 - Without preload (clearance) |
| Version | Cam roller guide |
| Weight (Kg) | 2.84 |
| Width of runner block [mm] | 145.0 |
Frequently Asked Questions
How do I get pricing for R190225200?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R190225200?
R190225200 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R190225200?
Key specifications include Dimension A (profiled rail systems) [mm]: 145; Dimension B (profiled rail systems) [mm]: 186; Dimension B1 [mm]: 154; Dimension B2 (profiled rail systems) [mm]: 16. The full specification table on this page lists every published attribute for this part.
How quickly can R190225200 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth CAM ROLLER RAIL 42 &
Bosch Rexroth Bosch Rexroth ROLLER 52-H &
Bosch Rexroth Bosch Rexroth CAM ROLLER RAIL 25-0 N &

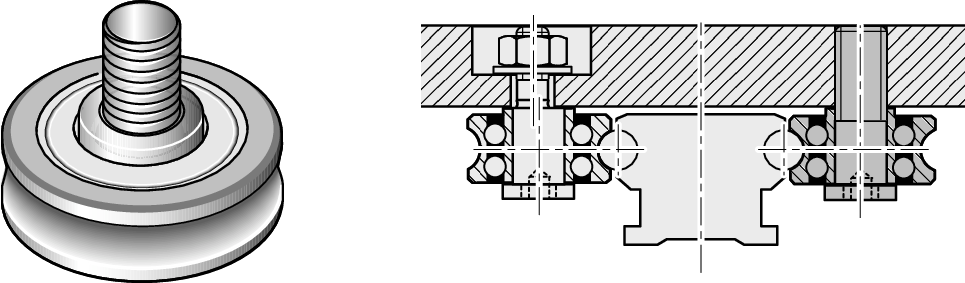

Bosch Rexroth Bosch Rexroth ROLLER 32 &
