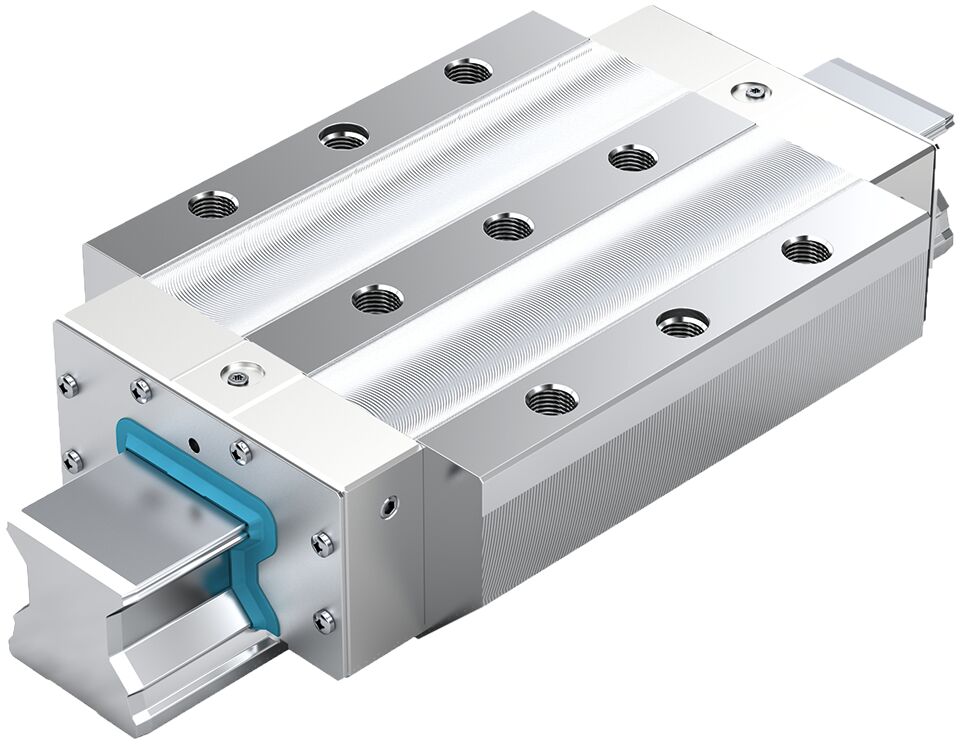

Bosch Rexroth ROLLER RUNNER BLOCK CARBON STEEL RWA-100-FLS-C2-H-2
The roller runner block is highly precise and characterized by the following product features:. Size 100. Format FLS: Width = flange, length = long, height = standard. Runner block body made of unalloyed steel CS. Preload class C2: Medium preload. Accuracy class H: High. Without roller chain. Preserved. Without initial lubrication. Without attachment element, left (front reference edge). Without attachment element, right (front reference edge). Straight lube connection loosely attached. Runner block body in standard version. Overall length of the runner block = 386.5 mm. Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy
| Accuracy class | H - Highly accurate |
|---|---|
| Dimension A (profiled rail systems) [mm] | 250 |
| Dimension A1 (profiled rail systems) [mm] | 125 |
| Dimension A2 (profiled rail systems) [mm] | 100 |
| Dimension A3 (profiled rail systems) [mm] | 75 |
| Dimension B (profiled rail systems) [mm] | 380.5 |
| Dimension B1 [mm] | 288 |
| Dimension B2 (profiled rail systems) [mm] | 385.5 |
| Dimension B3 [mm] | 393.5 |
| Dimension diameter S5 (profiled rail systems) | 26 |
| Dimension E1 [mm] | 200 |
| Dimension E2 (profiled rail systems) [mm] | 230 |
| Dimension E8 (profiled rail systems) [mm] | 64 |
| Dimension E9 (profiled rail systems) [mm] | 9 |
| Dimension h [mm] | 120.0 |
| Dimension H1 (profiled rail systems) [mm] | 105 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 87.3 |
| Dimension K1 (profiled rail systems) [mm] | 46 |
| Dimension K2 (profiled rail systems) [mm] | 51.9 |
| Dimension N1 (profiled rail systems) [mm] | 30 |
| Dimension N2 (profiled rail systems) [mm] | 22 |
| Dimension N5 (profiled rail systems) [mm] | 17.5 |
| Dimension N6 (profiled rail systems) [mm] | 55 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S1 thread diameter (profiled rail systems) [mm] | 17.5 |
| Dimension S2 (profiled rail systems) | M20 |
| Dimension T1 min [mm] | 35 |
| Dimension V1 [mm] | 20 |
| Dynamic load capacity C100 [N] | 632000.0 |
| Dynamic load capacity C50 [N] | 777000.0 |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 27200.0 |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 33500.0 |
| Dynamic torsional moment load capacity Mt100 [Nm] | 35300.0 |
| Dynamic torsional moment load capacity Mt50 [Nm] | 43400.0 |
| Footnote friction force FR | Guideline value for frictional drags of the complete, sealed and lubricated roller runner blocks. The friction is approx. 50% higher immediately after lubrication. |
| Format | FLS - flange, long, standard height |
| Friction coefficient μ | 0.0004 ... 0.001 |
| Height of runner block [mm] | 105.0 |
| Height runner block with guide rail [mm] | 120.0 |
| Length of runner block [mm] | 380.5 |
| Lubrication | Preserved |
| Material (profiled rail systems) | Carbon steel |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 2.0 |
| Model | Heavy-duty roller runner block |
| Nominal size [mm] | 100 |
| Note of Dimension T | Dimension T = Rail separation of the roller guide rail |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Note: friction coefficient μ | Without friction of seal |
| Note: Max. acceleration amax | Requirement: There must be preload, even during operation under load. |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. For operation at lower minus temperatures, please consult us. |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Pitch T guide rail [mm] | 105 |
| Preload class | C2 - Medium preload |
| Seal | SS - Standard seal |
| Static load capacity C0 [N] | 1218000.0 |
| Static longitudinal moment load capacity ML0 [Nm] | 52400 |
| Static torsional moment load capacity Mt0 [Nm] | 71200 |
| Version | Roller rail systems |
| Weight (Kg) | 42 |
| Width of runner block [mm] | 250.0 |
