Bosch Rexroth ROLLER GUIDE RAIL CARBON STEEL RSA-055-SNS-S-MB-00
The roller guide rail is highly precise and characterized by the following product features:. Size 55. Format SNS: Width = slimline, length = normal, height = standard. Guide rail made of carbon steel CS. Fastener MB: Bolting from below. Cover 00: Without cover. Accuracy class super precision. Number of partial sections: one-piece. Rail in standard version
| Accuracy class | SP - Super precise |
|---|---|
| Dimension A2 (profiled rail systems) [mm] | 53 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 47.55 |
| Dimension N7 (profiled rail systems) [mm] | 22 |
| Dimension S7 thread diameter | M14 |
| Dimension t [mm] | 60 |
| Dimension T1 max (profiled rail systems) [mm] | 42 |
| Dimension T1 min [mm] | 18 |
| Dimension T1 s (profiled rail systems) [mm] | 28 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T<sub>1S</sub> with tolerances ± 0.75 |
| Format | SNS - Standard guide rail |
| Guide rail cover | Without cover strip |
| Guide rail mounting | For bolting from below |
| Mass m (kg/m) [kg/m] | 13.1 |
| Material (profiled rail systems) | Carbon steel |
| Max. length Lmax [mm] | 3956.0 |
| Minimum length Lmin [mm] | 156.0 |
| Nominal size [mm] | 55 |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for short time. For operation at lower minus temperatures, please consult us. |
| Number of holes nB (profiled rail systems) | 66 |
| Number of sections | 1-piece |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Pitch T guide rail [mm] | 60 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Version | Roller rail systems |
| Weight (Kg) | 0.000000 |
Frequently Asked Questions
How do I get pricing for R180750131?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R180750131?
R180750131 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R180750131?
Key specifications include Accuracy class: SP - Super precise; Dimension A2 (profiled rail systems) [mm]: 53; Dimension H2 without cover strip (profiled rail systems) [mm]: 47.55; Dimension N7 (profiled rail systems) [mm]: 22. The full specification table on this page lists every published attribute for this part.
How quickly can R180750131 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNS-H-MB-00
Bosch Rexroth Bosch Rexroth ROLLER GUIDE RAIL CARBON STEEL RSA-055-SNS-U-MB-00
Bosch Rexroth Bosch Rexroth ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNS-P-MA-SK
Bosch Rexroth Bosch Rexroth ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNS-P-MB-00

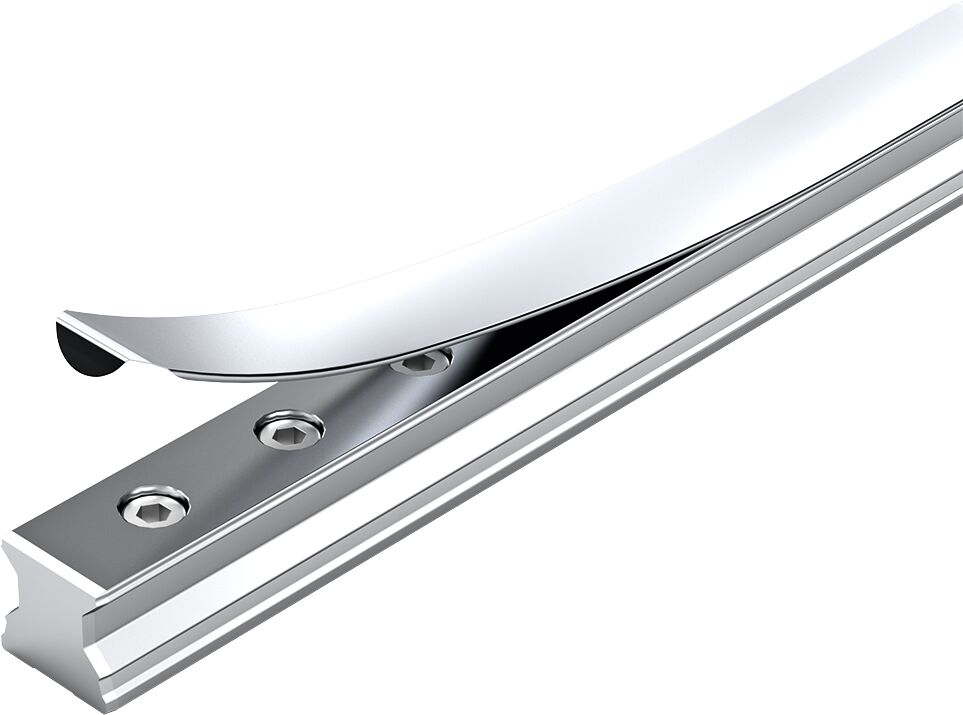

Bosch Rexroth Bosch Rexroth ROLLER GUIDE RAIL CARBON STEEL RSA-055-SNS-H-MA-SK
