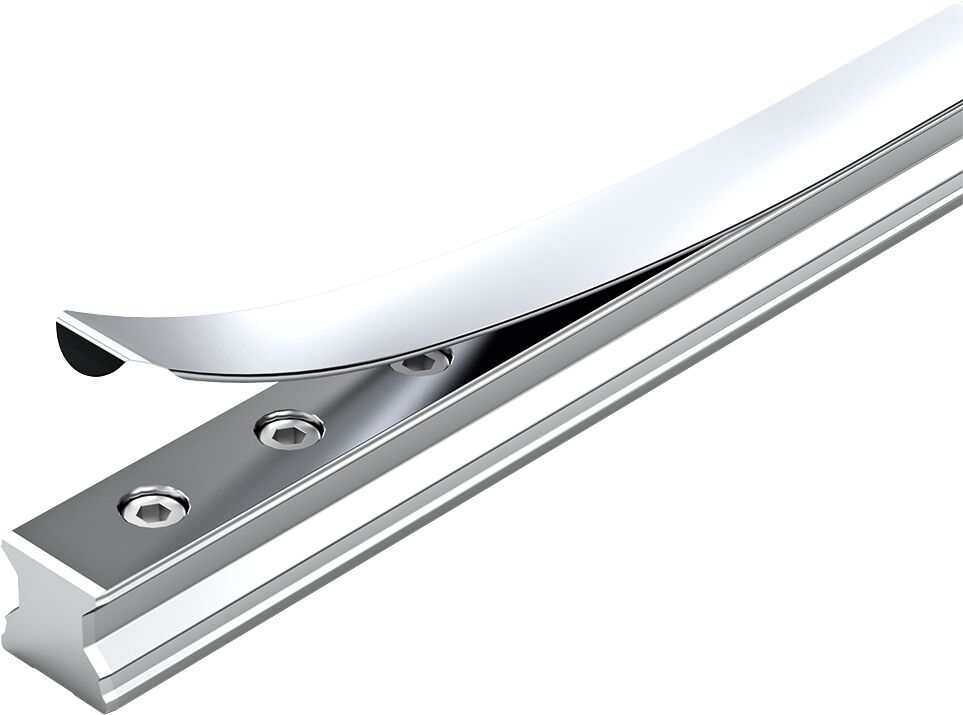

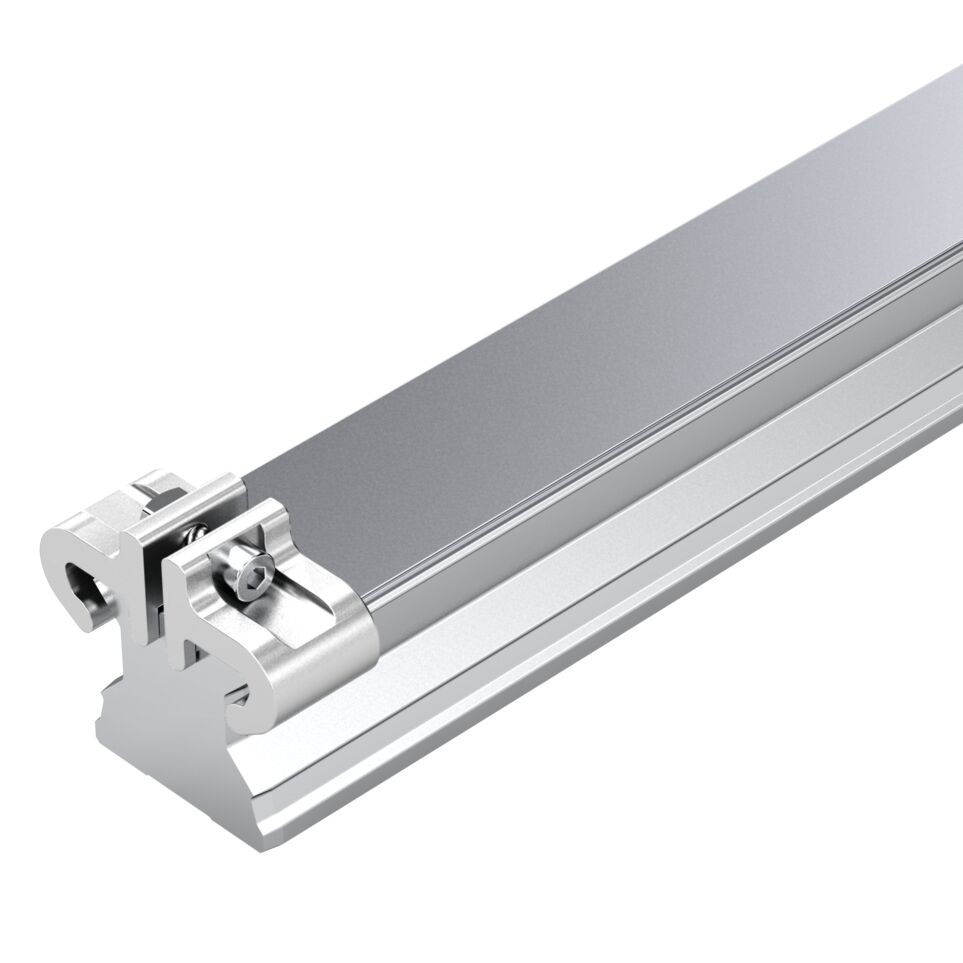

Bosch Rexroth ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNS-S-MA-BS
The roller guide rail is highly precise and characterized by the following product features:. Size 65. Format SNS: Width = slimline, length = normal, height = standard. Guide rail made of carbon steel CS. Fastener MA: Bolting from above. Cover BS: Cover strip and strip clamp. Accuracy class super precision. Number of partial sections: 3. Rail in standard version
| Accuracy class | SP - Super precise |
|---|---|
| Dimension [d] [mm] | 26 |
| Dimension A2 (profiled rail systems) [mm] | 63 |
| Dimension diameter S5 (profiled rail systems) | 18 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 58.15 |
| Dimension N6 (profiled rail systems) [mm] | 36.5 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension N8 (profiled rail systems) [mm] | 17 |
| Dimension N9 (profiled rail systems) [mm] | 3.2 |
| Dimension t [mm] | 75 |
| Dimension T1 max (profiled rail systems) [mm] | 55 |
| Dimension T1 min [mm] | 21 |
| Dimension T1 s (profiled rail systems) [mm] | 35.5 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T<sub>1S</sub> with tolerances ±0.75 |
| Footnote of H2 with cover strip (profiled rail systems) | With cover strip 0.3 mm |
| Format | SNS - Standard guide rail |
| Guide rail cover | With cover strip and strip clamps |
| Guide rail mounting | For bolting from above |
| Height of guide rail H2 with cover strip [mm] | 58.15 |
| Mass m (kg/m) [kg/m] | 17.4 |
| Material (profiled rail systems) | Carbon steel |
| Max. length Lmax [mm] | 3971.0 |
| Minimum length Lmin [mm] | 192.0 |
| Nominal size [mm] | 65 |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. For operation at lower minus temperatures, please consult us. |
| Number of holes nB (profiled rail systems) | 53 |
| Number of sections | 3-piece |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Pitch T guide rail [mm] | 75 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Version | Roller rail systems |
| Weight (Kg) | 0.000000 |
