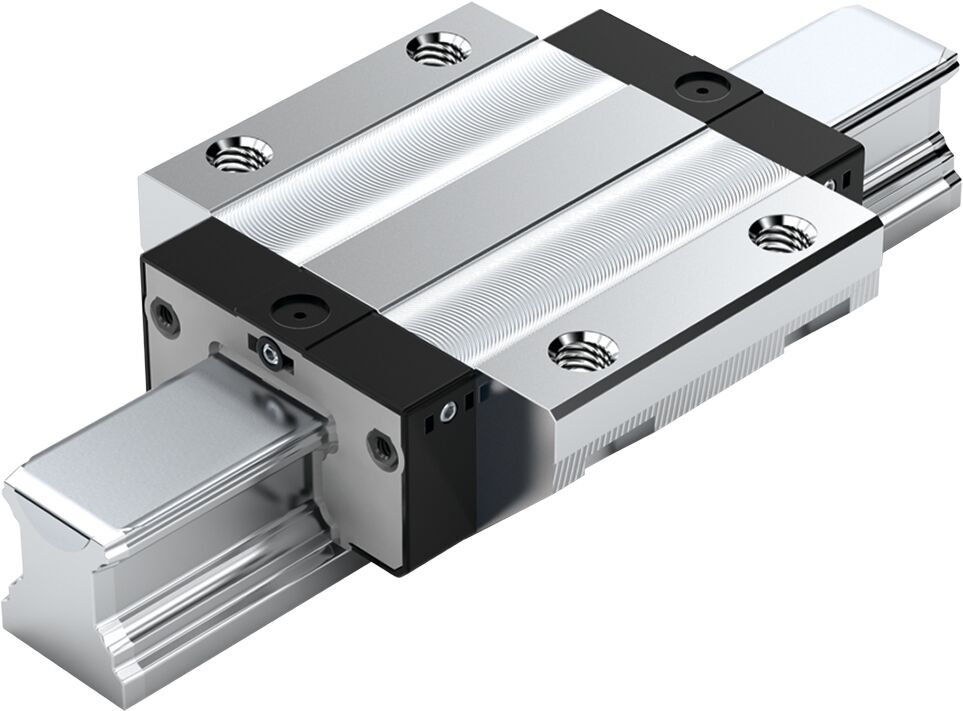

Bosch Rexroth BALL RUNNER BLOCK CARBON STEEL KWC-020-SNN-C1-H-2
The ball runner block is highly precise and characterized by the following product features:. Size 20. Format SNN: Width = slimline, length = normal, height = low. Runner block body made of unalloyed steel CS. Preload class C1: Low preload. Accuracy class H: High. Without ball chain. Preserved. Without initial lubrication. Without attachment element, left (front reference edge). Without attachment element, right (front reference edge). 45° angular lube nipples loosely attached. Runner block body in standard version. Overall length of the runner block = 72.5 mm. Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy
| Accuracy class | H - Highly accurate |
|---|---|
| Ball chain | Without ball chain (standard) |
| Dimension A (profiled rail systems) [mm] | 42 |
| Dimension A1 (profiled rail systems) [mm] | 21 |
| Dimension A2 (profiled rail systems) [mm] | 20 |
| Dimension A3 (profiled rail systems) [mm] | 11 |
| Dimension B (profiled rail systems) [mm] | 72.5 |
| Dimension B tolerance (profiled rail systems) [mm] | +0.5 |
| Dimension B1 [mm] | 49.6 |
| Dimension E1 [mm] | 32 |
| Dimension E2 (profiled rail systems) [mm] | 32 |
| Dimension E8 (profiled rail systems) [mm] | 30.5 |
| Dimension E9 (profiled rail systems) [mm] | 5.6 |
| Dimension h [mm] | 28.0 |
| Dimension H1 (profiled rail systems) [mm] | 23 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 20.75 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 20.55 |
| Dimension K1 (profiled rail systems) [mm] | 13 |
| Dimension K3 (profiled rail systems) [mm] | 3.6 |
| Dimension N3 (profiled rail systems) [mm] | 6.3 |
| Dimension N6 (profiled rail systems) [mm] | 13.2 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S2 (profiled rail systems) | M5 |
| Dimension S5 (profiled rail system) [mm] | 6 |
| Dimension S9 | M3x5 mm |
| Dimension S9 lead [mm] | 5 |
| Dimension S9 thread diameter (profiled rail systems) | M3 |
| Dimension T1 min [mm] | 13 |
| Dimension V1 [mm] | 6 |
| Dynamic load capacity C100 [N] | 14500.0 |
| Dynamic load capacity C50 [N] | 18300.0 |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 100.0 |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 130.0 |
| Dynamic torsional moment load capacity Mt100 [Nm] | 190.0 |
| Dynamic torsional moment load capacity Mt50 [Nm] | 240.0 |
| Format | SNN - slimline, standard, low |
| Friction coefficient μ | 0.002 ... 0.003 |
| Height of runner block [mm] | 23.0 |
| Height runner block with guide rail [mm] | 28.0 |
| Length of runner block [mm] | 72.5 |
| Lubrication | Preserved |
| Material (profiled rail systems) | Carbon steel |
| Maximum acceleration rate amax [m/s²] | 250.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Model | High-precision ball runner block |
| Nominal size [mm] | 20 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Note: friction coefficient μ | Without friction of seal |
| Note: Max. acceleration amax | If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup> |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. For operation at negative temperatures, please consult us. |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Pitch T guide rail [mm] | 60 |
| Preload class | C1 - Low preload |
| Seal | SS - Standard seal |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Static load capacity C0 [N] | 24400.0 |
| Static longitudinal moment load capacity ML0 [Nm] | 165 |
| Static torsional moment load capacity Mt0 [Nm] | 310 |
| Version | Ball rail system |
| Weight (Kg) | 0.3 |
| Width of runner block [mm] | 42.0 |
