Bosch Rexroth BALL GUIDE RAIL RESIST CR KSA-030-SNS-H-MA-AK
The ball guide rail is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:. Size 30. Format SNS: Width = slimline, length = normal, height = standard. Guide rail made of carbon steel CS, matte-silver, hard chrome plated. Fastener MA: Bolting from above. Cover AK: Plastic caps. Accuracy class high. Number of partial sections: 5. Rail in standard version
| Accuracy class | H - Highly accurate |
|---|---|
| Dimension [d] [mm] | 15 |
| Dimension A2 (profiled rail systems) [mm] | 28 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 28.35 |
| Dimension N6 (profiled rail systems) [mm] | 17 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S5 (profiled rail system) [mm] | 9 |
| Dimension t [mm] | 80 |
| Dimension T1 max (profiled rail systems) [mm] | 68 |
| Dimension T1 min [mm] | 12 |
| Dimension T1 s (profiled rail systems) [mm] | 38 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended. |
| Format | SNS - Standard guide rail |
| Guide rail cover | Plastic caps |
| Guide rail mounting | For bolting from above |
| Mass m (kg/m) [kg/m] | 5 |
| Material (profiled rail systems) | Hard chrome plated |
| Max. length Lmax [mm] | 3836.0 |
| Minimum length Lmin [mm] | 104.0 |
| Nominal size [mm] | 30 |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. For operation at negative temperatures, please consult us. |
| Number of holes nB (profiled rail systems) | 48 |
| Number of sections | 5-piece |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Pitch T guide rail [mm] | 80 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Version | Ball rail system |
| Weight (Kg) | 0.000000 |
Frequently Asked Questions
How do I get pricing for R164570345?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R164570345?
R164570345 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R164570345?
Key specifications include Accuracy class: H - Highly accurate; Dimension [d] [mm]: 15; Dimension A2 (profiled rail systems) [mm]: 28; Dimension H2 without cover strip (profiled rail systems) [mm]: 28.35. The full specification table on this page lists every published attribute for this part.
How quickly can R164570345 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth BALL GUIDE RAIL RESIST CR KSA-045-SNS-H-MA-BS
Bosch Rexroth Bosch Rexroth BALL GUIDE RAIL RESIST CR KSA-020-SNS-H-MA-AK

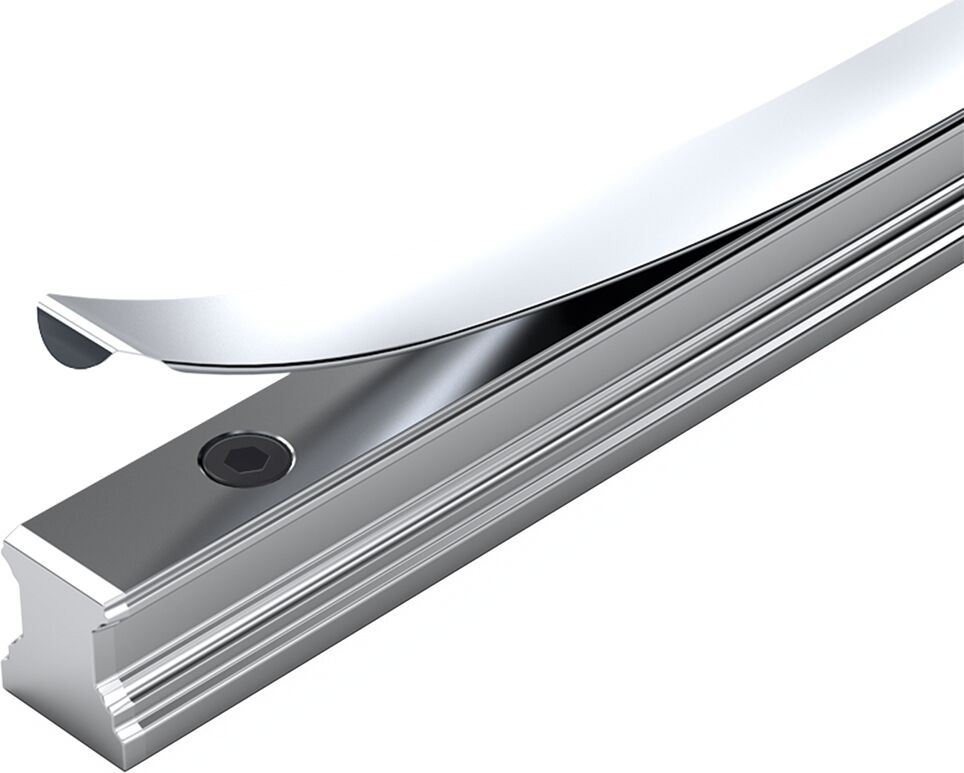

Bosch Rexroth Bosch Rexroth BALL GUIDE RAIL RESIST CR KSA-035-SNS-H-MB-00
Bosch Rexroth Bosch Rexroth BALL GUIDE RAIL RESIST CR KSA-025-SNS-H-MA-AK

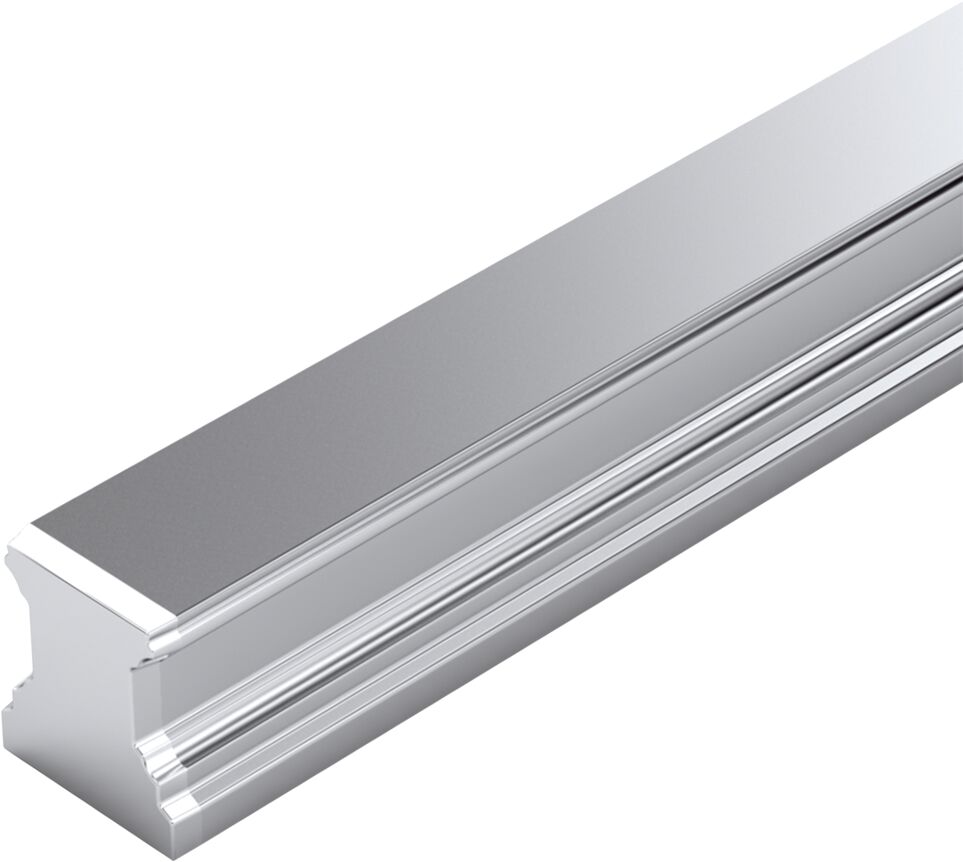

Bosch Rexroth Bosch Rexroth BALL GUIDE RAIL RESIST CR KSA-065-SNS-H-MB-00
