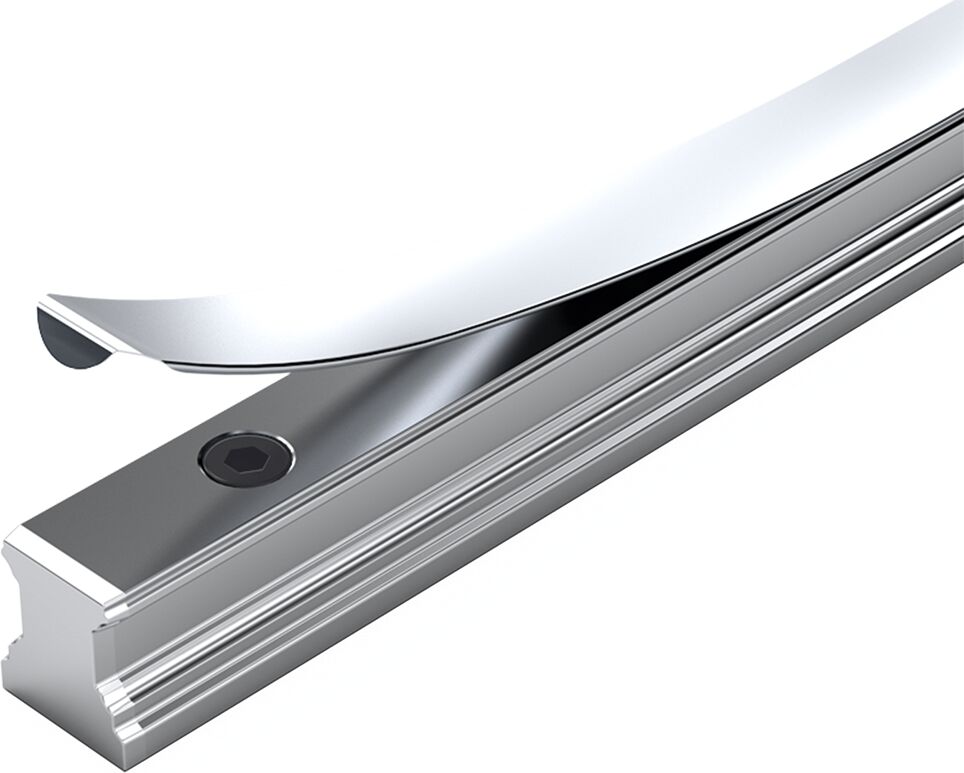

Bosch Rexroth BALL GUIDE RAIL RESIST CR KSA-045-SNS-H-MA-BS
The ball guide rail is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:. Size 45. Format SNS: Width = slimline, length = normal, height = standard. Guide rail made of carbon steel CS, matte-silver, hard chrome plated. Fastener MA: Bolting from above. Cover BS: Cover strip and strip clamp. Accuracy class high. Number of partial sections: 5. Rail in standard version
| Accuracy class | H - Highly accurate |
|---|---|
| Dimension [d] [mm] | 20 |
| Dimension A2 (profiled rail systems) [mm] | 45 |
| Dimension F4 with cover strip (profiled rail systems) [mm] | 12.5 |
| Dimension F5 (profiled rail systems) [mm] | 18 |
| Dimension F6 (profiled rail systems) [mm] | 2.2 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 40.15 |
| Dimension N6 (profiled rail systems) [mm] | 23.5 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S5 (profiled rail system) [mm] | 14 |
| Dimension t [mm] | 105 |
| Dimension T1 max (profiled rail systems) [mm] | 89 |
| Dimension T1 min [mm] | 18 |
| Dimension T1 s (profiled rail systems) [mm] | 50.5 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended. |
| Footnote of H2 with cover strip (profiled rail systems) | With cover strip 0.3 mm |
| Format | SNS - Standard guide rail |
| Guide rail cover | With cover strip and strip clamps |
| Guide rail mounting | For bolting from above |
| Height of guide rail H2 with cover strip [mm] | 40.15 |
| Mass m (kg/m) [kg/m] | 10.5 |
| Material (profiled rail systems) | Hard chrome plated |
| Max. length Lmax [mm] | 3776.0 |
| Minimum length Lmin [mm] | 141.0 |
| Nominal size [mm] | 45 |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. For operation at negative temperatures, please consult us. |
| Number of holes nB (profiled rail systems) | 36 |
| Number of sections | 5-piece |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Pitch T guide rail [mm] | 105 |
| Product information | Rail length up to L<sub>max</sub> |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Version | Ball rail system |
| Weight (Kg) | 0.000000 |
Frequently Asked Questions
How do I get pricing for R164543375?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R164543375?
R164543375 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R164543375?
Key specifications include Accuracy class: H - Highly accurate; Dimension [d] [mm]: 20; Dimension A2 (profiled rail systems) [mm]: 45; Dimension F4 with cover strip (profiled rail systems) [mm]: 12.5. The full specification table on this page lists every published attribute for this part.
How quickly can R164543375 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

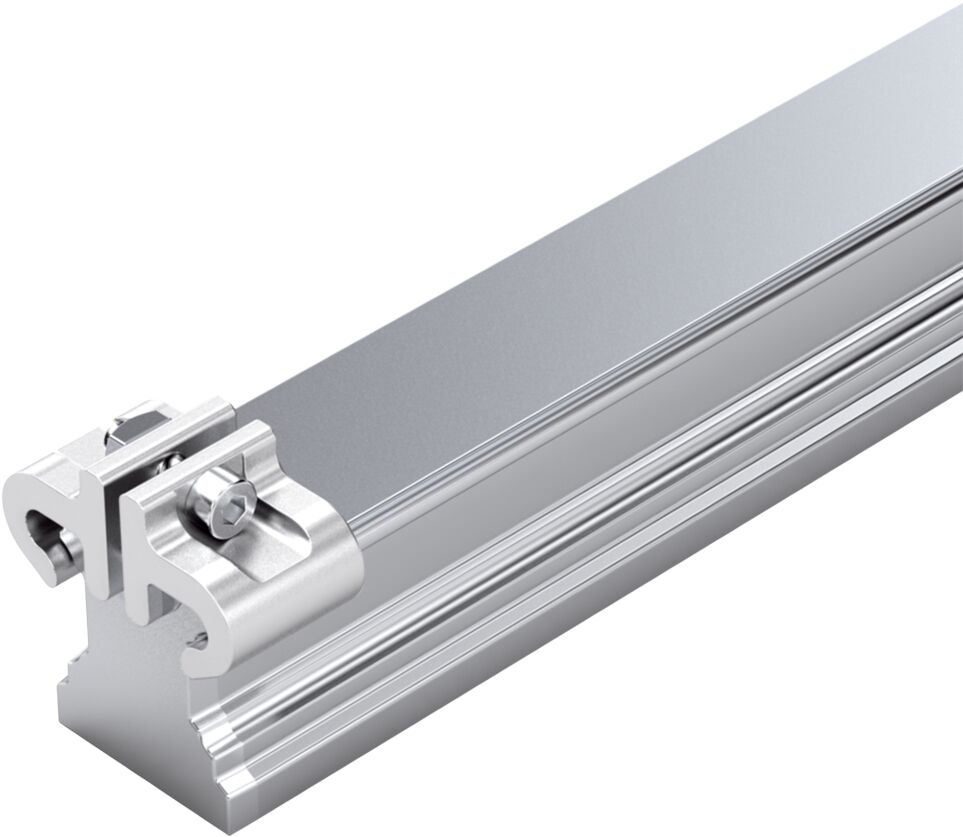

Bosch Rexroth Bosch Rexroth BALL GUIDE RAIL RESIST CR KSA-045-SNS-H-MA-BS
Bosch Rexroth Bosch Rexroth BALL GUIDE RAIL RESIST CR KSA-030-SNS-H-MA-AK
Bosch Rexroth Bosch Rexroth BALL RUNNER BLOCK ALUMINUM KWD-020-SNS-C0-H-1

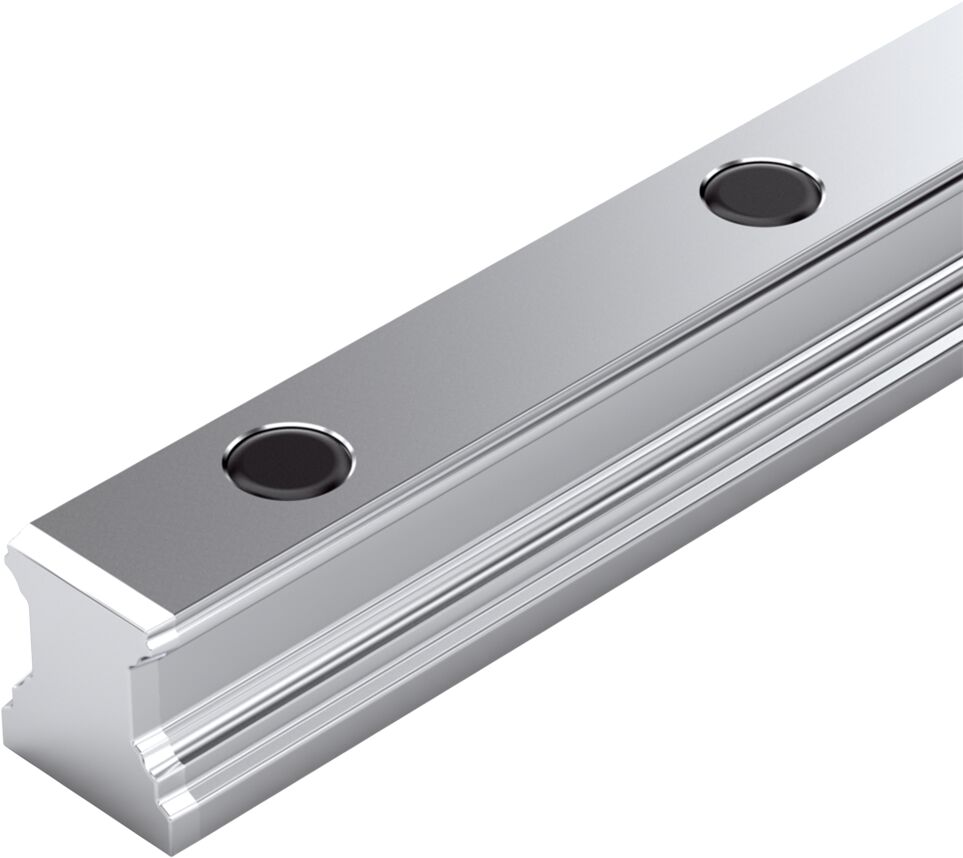

Bosch Rexroth Bosch Rexroth BALL GUIDE RAIL RESIST CR KSA-020-SNS-H-MA-AK
