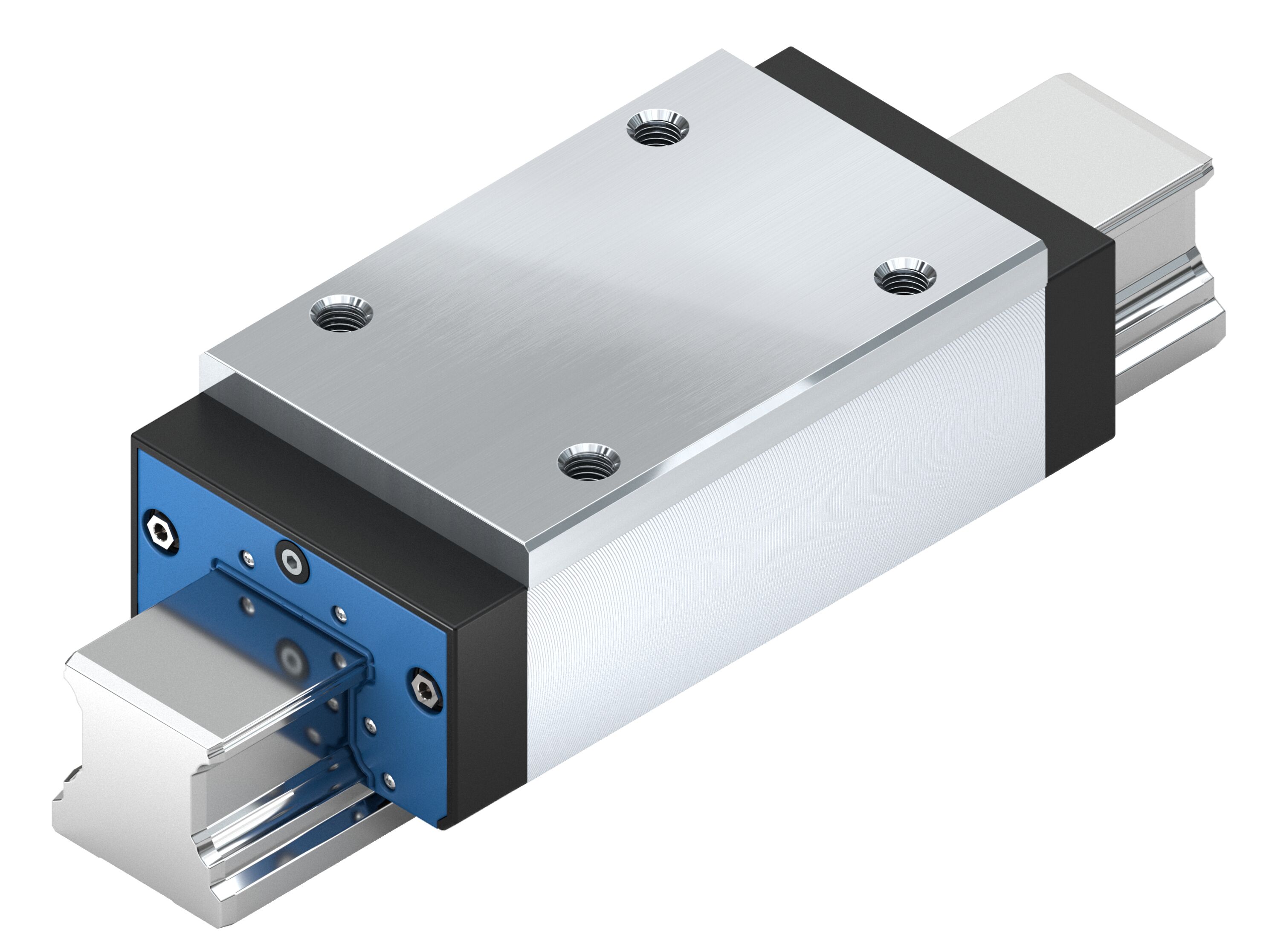

Bosch Rexroth BALL RUNNER BLOCK CARBON STEEL KWC-055-SLH-C1-N-2
The ball runner block is highly precise and characterized by the following product features:. Size 55. Format SLH: Width = slimline, length = long, height = high. Runner block body made of unalloyed steel CS. Preload class C1: Low preload. Accuracy class N: Standard. Without ball chain. Preserved. Without initial lubrication. Without attachment element, left (front reference edge). Without attachment element, right (front reference edge). 45° angular lube nipples loosely attached. Runner block body in standard version. Overall length of the runner block = 199.0 mm. Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy
| Accuracy class | N - Normal |
|---|---|
| Ball chain | Without ball chain (standard) |
| Dimension A (profiled rail systems) [mm] | 100 |
| Dimension A1 (profiled rail systems) [mm] | 50 |
| Dimension A2 (profiled rail systems) [mm] | 53 |
| Dimension A3 (profiled rail systems) [mm] | 23.5 |
| Dimension B (profiled rail systems) [mm] | 199 |
| Dimension B tolerance (profiled rail systems) [mm] | +0.5 |
| Dimension B1 [mm] | 155.5 |
| Dimension E1 [mm] | 75 |
| Dimension E2 (profiled rail systems) [mm] | 95 |
| Dimension E8 (profiled rail systems) [mm] | 80 |
| Dimension E9 (profiled rail systems) [mm] | 32.3 |
| Dimension h [mm] | 80.0 |
| Dimension H1 (profiled rail systems) [mm] | 67 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 48.15 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 47.85 |
| Dimension K3 (profiled rail systems) [mm] | 19 |
| Dimension N3 (profiled rail systems) [mm] | 19 |
| Dimension N6 (profiled rail systems) [mm] | 29 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S2 (profiled rail systems) | M12 |
| Dimension S5 (profiled rail system) [mm] | 16 |
| Dimension S9 | M5x8 mm |
| Dimension S9 lead [mm] | 8 |
| Dimension S9 thread diameter (profiled rail systems) | M5 |
| Dimension T1 min [mm] | 20 |
| Dimension V1 [mm] | 12 |
| Dynamic load capacity C100 [N] | 139000.0 |
| Dynamic load capacity C50 [N] | 175000.0 |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 3960.0 |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 4990.0 |
| Dynamic torsional moment load capacity Mt100 [Nm] | 4410.0 |
| Dynamic torsional moment load capacity Mt50 [Nm] | 5560.0 |
| Format | SLH - slimline, long, high |
| Friction coefficient μ | 0.002 ... 0.003 |
| Height of runner block [mm] | 67.0 |
| Height runner block with guide rail [mm] | 80.0 |
| Length of runner block [mm] | 199.0 |
| Lubrication | Preserved |
| Material (profiled rail systems) | Carbon steel |
| Maximum acceleration rate amax [m/s²] | 250.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Model | Heavy-duty ball runner block |
| Nominal size [mm] | 55 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Note: friction coefficient μ | Without friction of seal |
| Note: Max. acceleration amax | If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup> |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Pitch T guide rail [mm] | 120 |
| Preload class | C1 - Low preload |
| Seal | SS - Standard seal |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Static load capacity C0 [N] | 245000.0 |
| Static longitudinal moment load capacity ML0 [Nm] | 6990 |
| Static torsional moment load capacity Mt0 [Nm] | 7780 |
| Version | Ball rail system |
| Weight (Kg) | 6 |
| Width of runner block [mm] | 100.0 |
Frequently Asked Questions
How do I get pricing for R162451410?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R162451410?
R162451410 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R162451410?
Key specifications include Accuracy class: N - Normal; Ball chain: Without ball chain (standard); Dimension A (profiled rail systems) [mm]: 100; Dimension A1 (profiled rail systems) [mm]: 50. The full specification table on this page lists every published attribute for this part.
How quickly can R162451410 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth BALL RUNNER BLOCK CARBON STEEL KWD-045-SLH-C0-H-1
Bosch Rexroth Bosch Rexroth BALL RUNNER BLOCK ALUMINUM KWD-015-FNS-C0-N-1

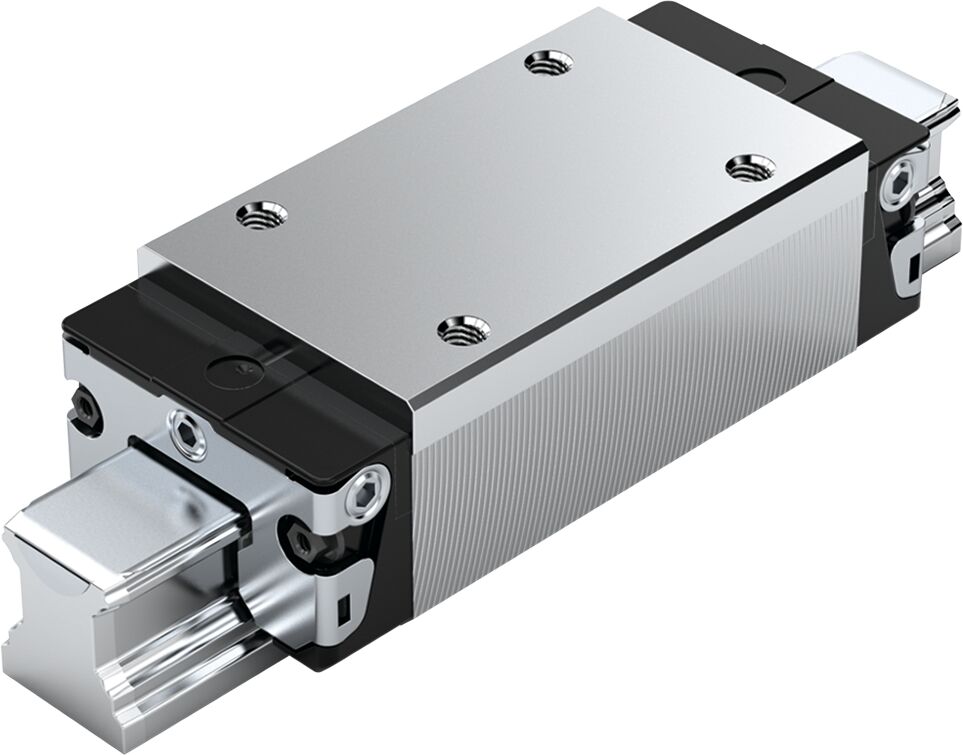

Bosch Rexroth Bosch Rexroth BALL RUNNER BLOCK CARBON STEEL KWD-045-SLH-C1-P-1

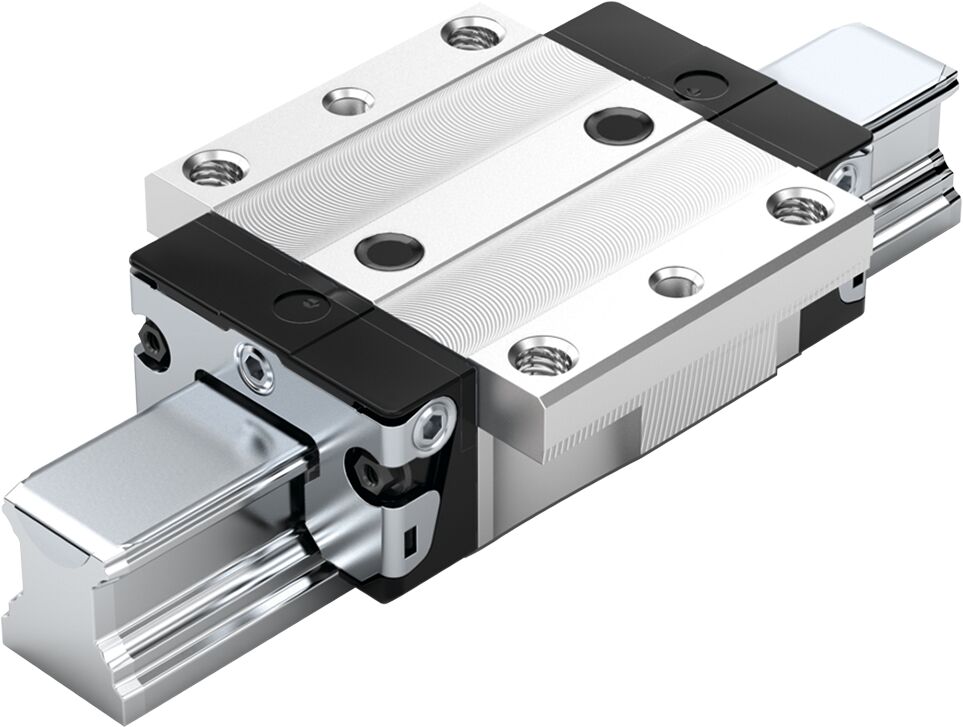

Bosch Rexroth Bosch Rexroth BALL RUNNER BLOCK ALUMINUM KWD-025-FNS-C0-H-1
