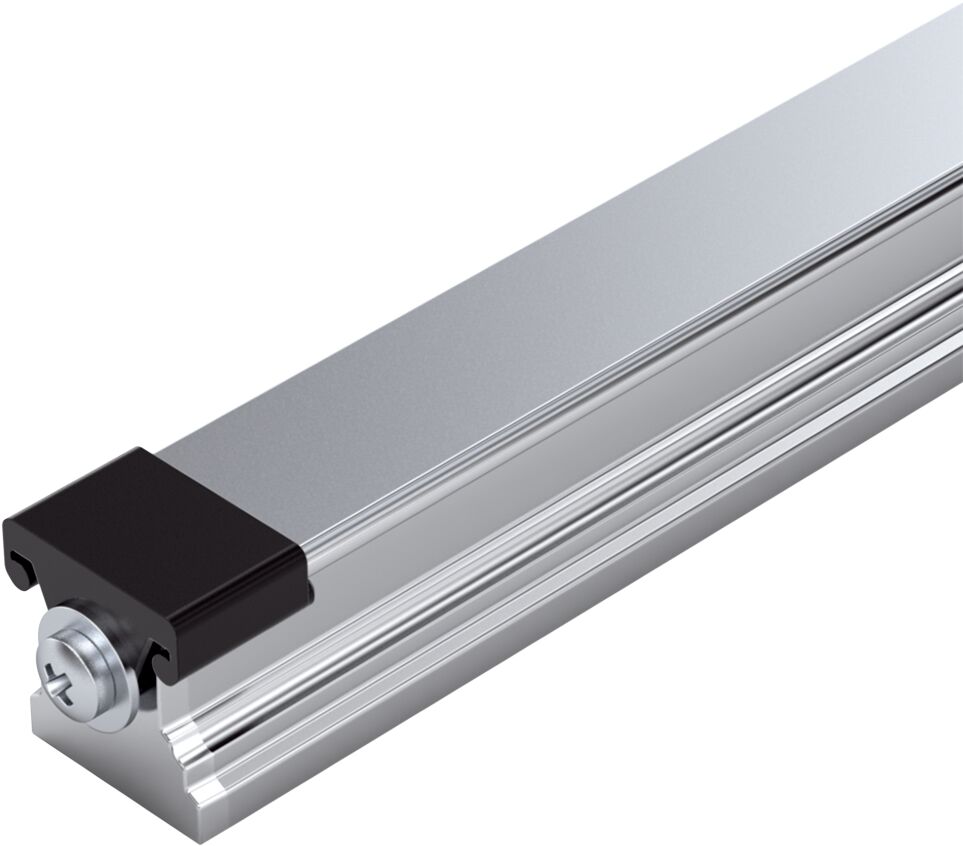

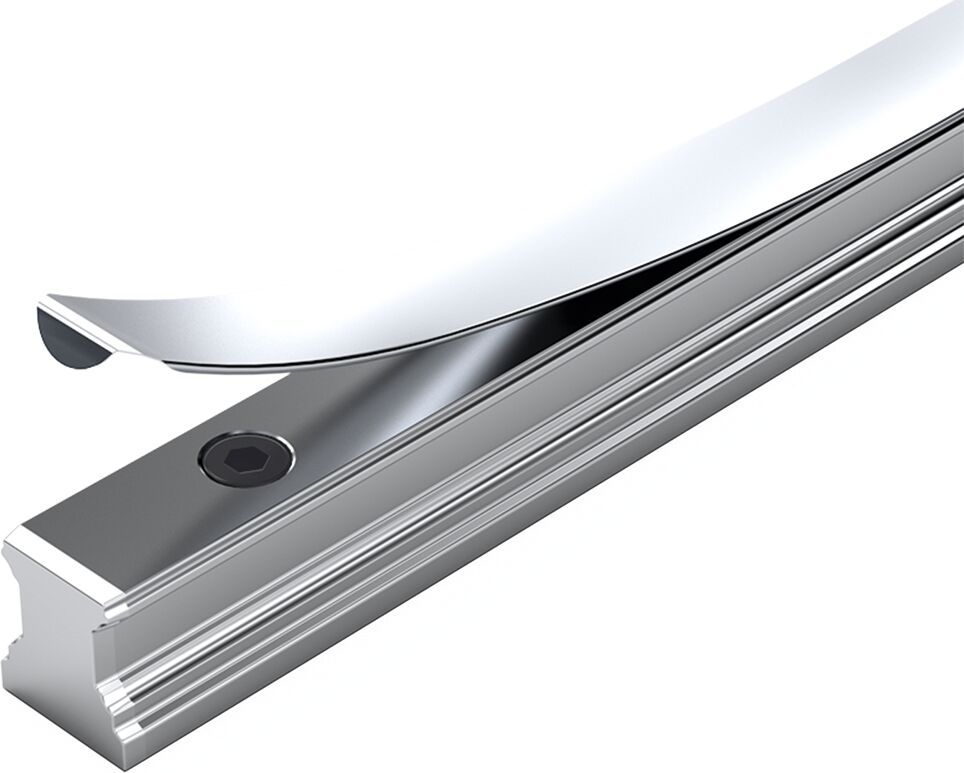

Bosch Rexroth BALL GUIDE RAIL CARBON STEEL KSA-045-SNS-U-MA-AB
The ball guide rail is highly precise and characterized by the following product features:. Size 45. Format SNS: Width = slimline, length = normal, height = standard. Guide rail made of carbon steel CS. Fastener MA: Bolting from above. Cover AB: Cover strip and protective caps. Accuracy class ultra precision. Number of partial sections: one-piece. Rail in standard version
| Accuracy class | UP - Ultra precise |
|---|---|
| Dimension [d] [mm] | 20 |
| Dimension A2 (profiled rail systems) [mm] | 45 |
| Dimension F5 (profiled rail systems) [mm] | 20 |
| Dimension F6 (profiled rail systems) [mm] | 7 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 40.15 |
| Dimension N11 (profiled rail systems) [mm] | 30 |
| Dimension N6 (profiled rail systems) [mm] | 23.5 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S5 (profiled rail system) [mm] | 14 |
| Dimension t [mm] | 105 |
| Dimension T1 max (profiled rail systems) [mm] | 89 |
| Dimension T1 min [mm] | 18 |
| Dimension T1 s (profiled rail systems) [mm] | 50.5 |
| Footnote of dimension T1 min (profiled rail systems) | If below T<sub>1 min</sub>, no end-face thread possible. Secure the cover strip! Observe the instruction for mounting! |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended. |
| Footnote of H2 with cover strip (profiled rail systems) | With cover strip 0.3 mm |
| Format | SNS - Standard guide rail |
| Guide rail cover | With cover strip and protective caps |
| Guide rail mounting | For bolting from above |
| Height of guide rail H2 with cover strip [mm] | 40.15 |
| Mass m (kg/m) [kg/m] | 10.5 |
| Material (profiled rail systems) | Carbon steel |
| Max. length Lmax [mm] | 5771.0 |
| Minimum length Lmin [mm] | 141.0 |
| Nominal size [mm] | 45 |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Number of holes nB (profiled rail systems) | 36 |
| Number of sections | 1-piece |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Pitch T guide rail [mm] | 105 |
| Product information | Please configure the product to add it to the shopping cart. |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Version | Ball rail system |
| Weight (Kg) | 0.000000 |
