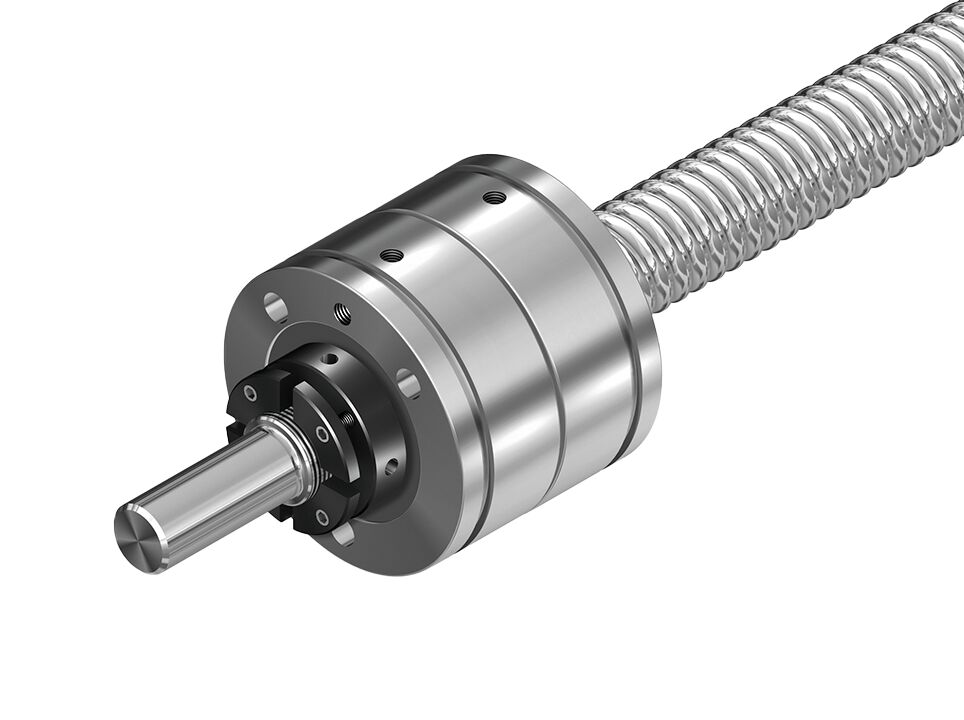

Bosch Rexroth BEARING LAF-C-A 25 BG
Bosch Rexroth R159032530 - Linear Motion & Guides - Type: Angular-contact thrust ball bearing; Weight (Kg): 1.54; Dimension [d] [mm]: 25.
This listing covers the Bosch Rexroth R159032530, a part number in the Linear Motion & Guides category. The manufacturer's published data for this part number specifies Type: Angular-contact thrust ball bearing and Weight (Kg): 1.54.
Load on bearing (see general technical notes and information for bearings, "Project planning notes")
Key manufacturer data on file for this item includes Dimension [d] [mm]: 25; Nominal size [mm]: 40 x 10/12/16/20/25/30/40; Outer diameter D [mm]: 75.0; Static load capacity C0 [N]: 111000.0; Dimension B (profiled rail systems) [mm]: 56; Dynamic load capacity C [N]: 44500.0; Limit speed (grease) nmax: 2600; Limit speed nmin [min⁻¹]: 2600; Rigidity against tilting Rkl [Nm/mrad]: 450; Bearing frictional torque with seal MRb [Nm]: 0.6; Rigidity of the bearing (axial) RFB [N/μm]: 1300; Dimension d tolerance [mm]: -0.005. The complete technical table is shown in the Specifications tab on this page.
| Bearing frictional torque with seal MRb [Nm] | 0.6 |
|---|---|
| Dimension [d] [mm] | 25 |
| Dimension B (profiled rail systems) [mm] | 56 |
| Dimension d tolerance [mm] | -0.005 |
| Dimension J [mm] | 58 |
| Dynamic load capacity C [N] | 44500.0 |
| Limit speed (grease) nmax | 2600 |
| Limit speed nmin [min⁻¹] | 2600 |
| Nominal size [mm] | 40 x 10/12/16/20/25/30/40 |
| Note: dynamic load capacity C | Load on bearing (see general technical notes and information for bearings, "Project planning notes") |
| Note: static load capacity C0 | Load on bearing (see general technical notes and information for bearings, "Project planning notes") |
| Outer diameter D [mm] | 75.0 |
| Rigidity against tilting Rkl [Nm/mrad] | 450 |
| Rigidity of the bearing (axial) RFB [N/μm] | 1300 |
| Static load capacity C0 [N] | 111000.0 |
| Type | Angular-contact thrust ball bearing |
| Weight (Kg) | 1.54 |
Frequently Asked Questions
How do I get pricing for R159032530?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R159032530?
R159032530 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R159032530?
Key specifications include Bearing frictional torque with seal MRb [Nm]: 0.6; Dimension [d] [mm]: 25; Dimension B (profiled rail systems) [mm]: 56; Dimension d tolerance [mm]: -0.005. The full specification table on this page lists every published attribute for this part.
How quickly can R159032530 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth BEARING LAN-A-A 50 BG

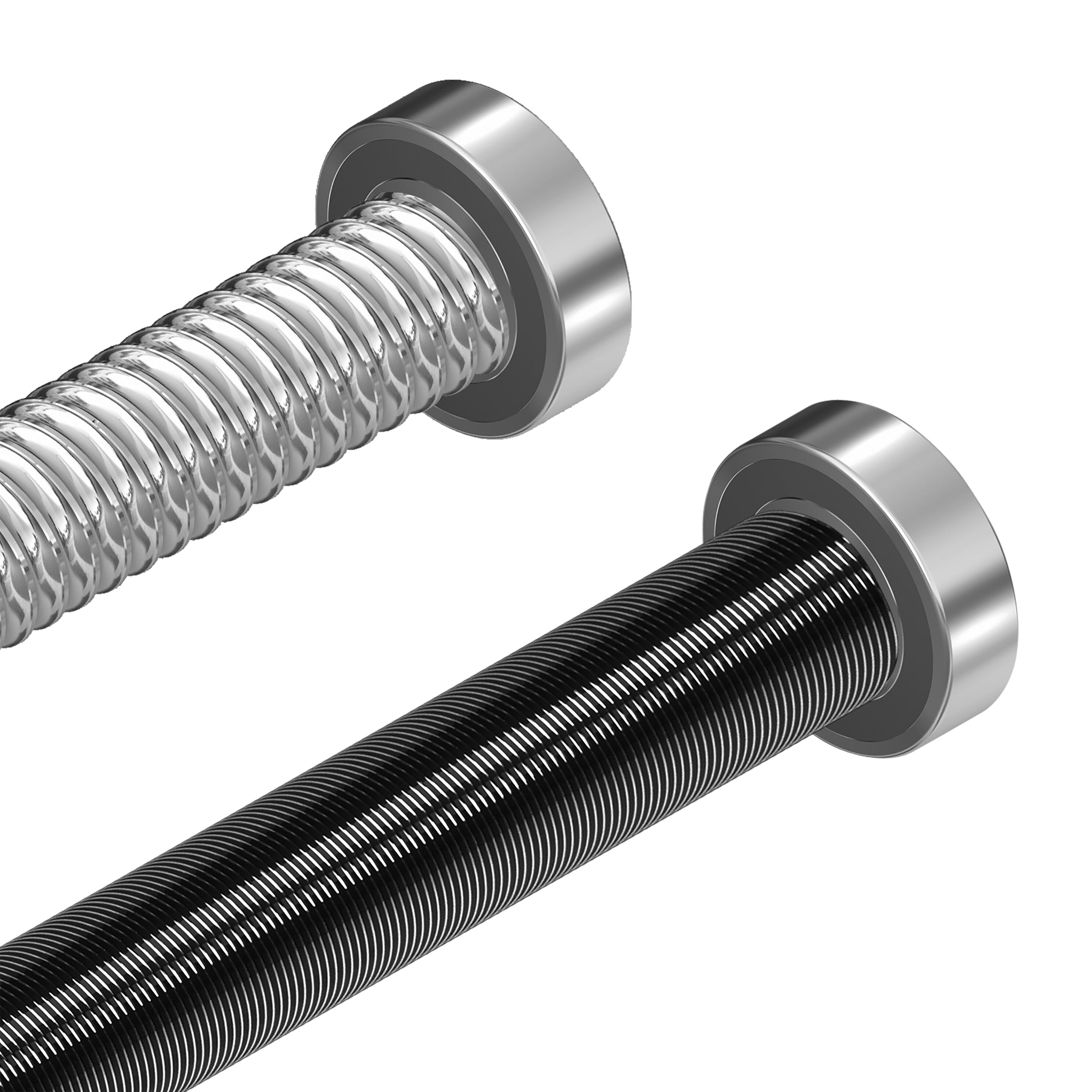

Bosch Rexroth Bosch Rexroth BEARING LAD-A-S 6 BG

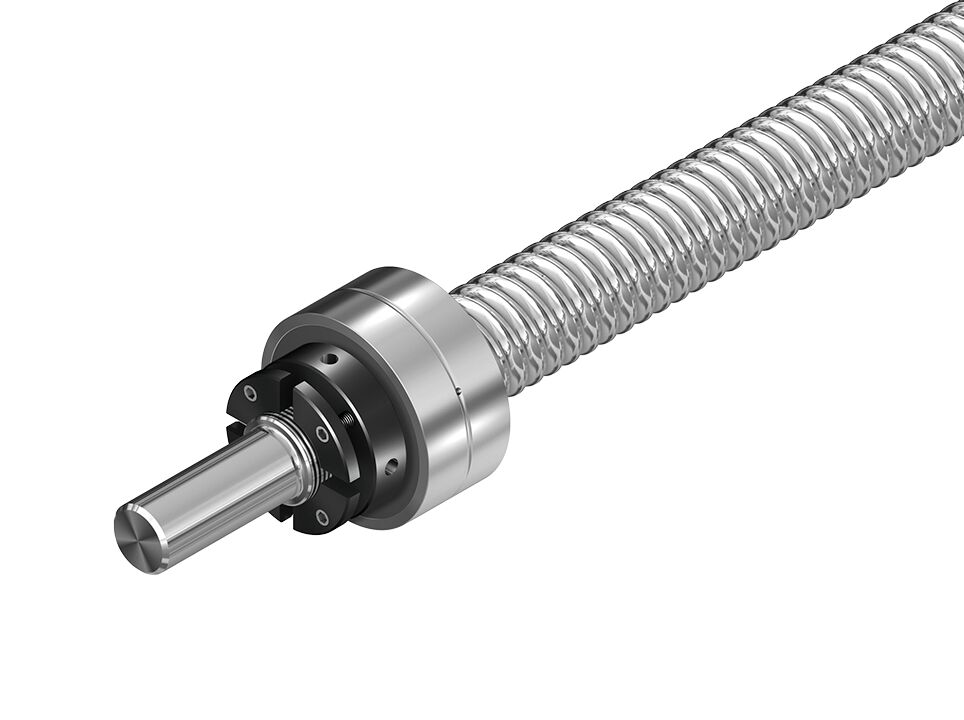

Bosch Rexroth Bosch Rexroth BEARING LAN-B-Z 10 BG

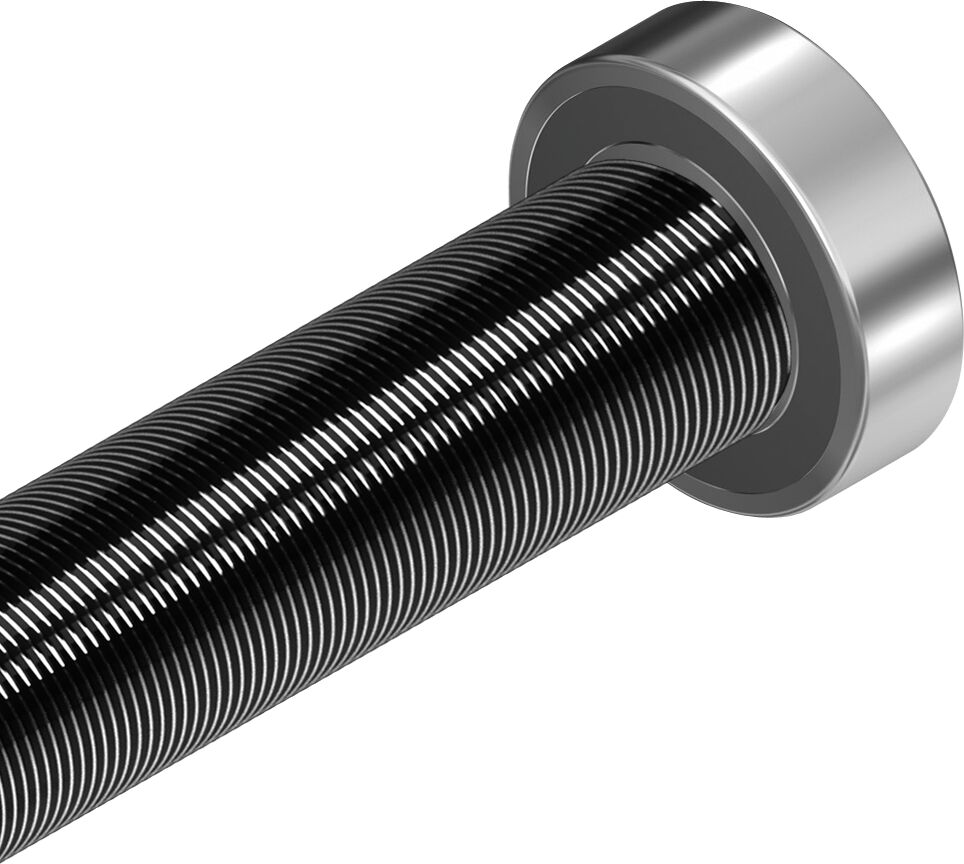

Bosch Rexroth Bosch Rexroth BEARING LAD-A-S 17 BG

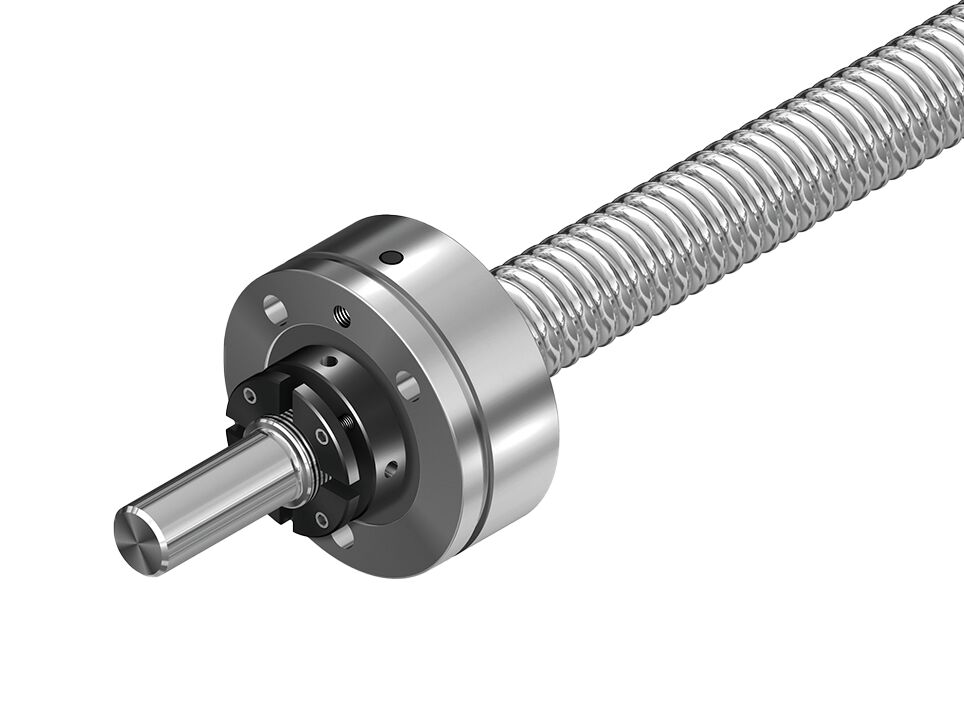

Bosch Rexroth Bosch Rexroth BEARING LAF-B-A 35 BG
