Bosch Rexroth BEARING LAF-B-Z 30 BG
Bosch Rexroth R159003000 - Linear Motion & Guides - Type: Angular-contact thrust ball bearing; Weight (Kg): 0.87; Dimension [d] [mm]: 30.
The R159003000 from Bosch Rexroth is listed under Linear Motion & Guides in our catalog. The manufacturer's published data for this part number specifies Type: Angular-contact thrust ball bearing and Weight (Kg): 0.87.
Load on bearing (see general technical notes and information for bearings, "Project planning notes")
Published specifications for this part include Dimension [d] [mm]: 30; Nominal size [mm]: 40 x 5; Outer diameter D [mm]: 80.0; Static load capacity C0 [N]: 64000.0; Dimension B (profiled rail systems) [mm]: 28; Dynamic load capacity C [N]: 29000.0; Limit speed (grease) nmax: 2200; Limit speed nmin [min⁻¹]: 2200; Footnote mass m: R159003000; Rigidity against tilting Rkl [Nm/mrad]: 300; Bearing frictional torque with seal MRb [Nm]: 0.5; Rigidity of the bearing (axial) RFB [N/μm]: 850. See the Specifications tab on this page for the full technical table.
| Bearing frictional torque with seal MRb [Nm] | 0.5 |
|---|---|
| Dimension [d] [mm] | 30 |
| Dimension B (profiled rail systems) [mm] | 28 |
| Dimension d tolerance [mm] | -0.01 |
| Dimension J [mm] | 63 |
| Dynamic load capacity C [N] | 29000.0 |
| Footnote mass m | R159003000 |
| Limit speed (grease) nmax | 2200 |
| Limit speed nmin [min⁻¹] | 2200 |
| Nominal size [mm] | 40 x 5 |
| Note: dynamic load capacity C | Load on bearing (see general technical notes and information for bearings, "Project planning notes") |
| Note: static load capacity C0 | Load on bearing (see general technical notes and information for bearings, "Project planning notes") |
| Outer diameter D [mm] | 80.0 |
| Rigidity against tilting Rkl [Nm/mrad] | 300 |
| Rigidity of the bearing (axial) RFB [N/μm] | 850 |
| Static load capacity C0 [N] | 64000.0 |
| Type | Angular-contact thrust ball bearing |
| Weight (Kg) | 0.87 |
Frequently Asked Questions
How do I get pricing for R159003000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R159003000?
R159003000 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R159003000?
Key specifications include Bearing frictional torque with seal MRb [Nm]: 0.5; Dimension [d] [mm]: 30; Dimension B (profiled rail systems) [mm]: 28; Dimension d tolerance [mm]: -0.01. The full specification table on this page lists every published attribute for this part.
How quickly can R159003000 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

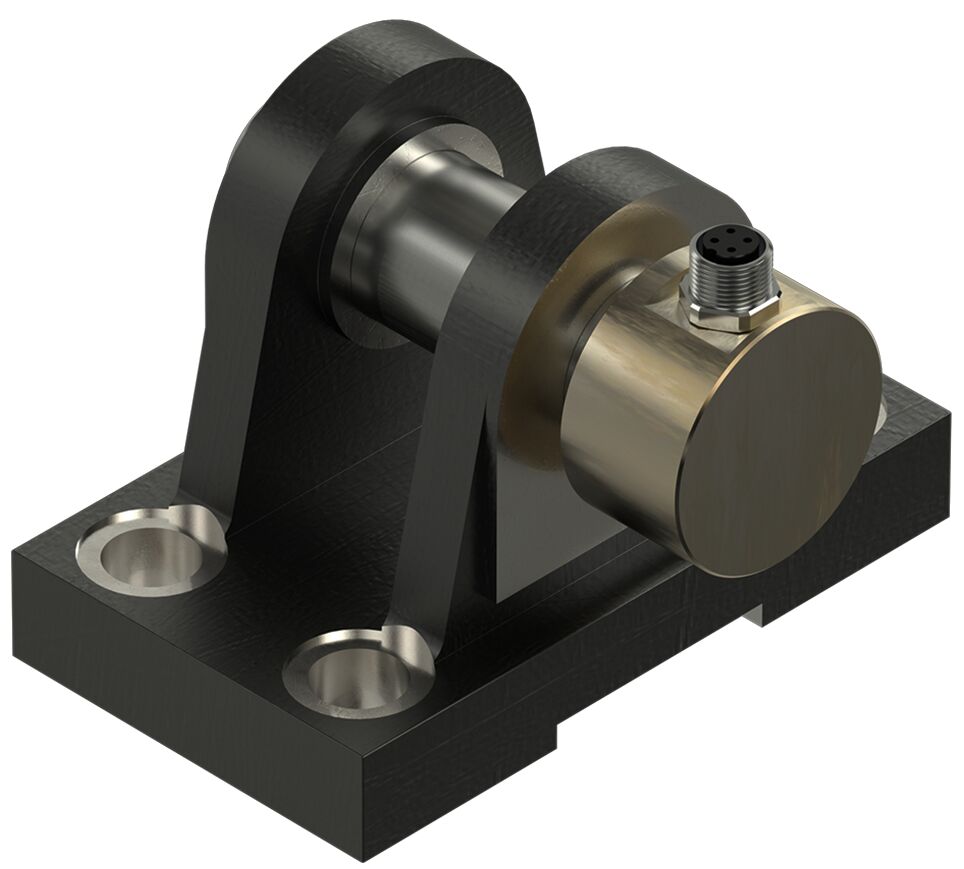

Bosch Rexroth Bosch Rexroth BEARING PEDESTAL EMC-HD 125 PSBG
Bosch Rexroth Bosch Rexroth PILLOW BLOCK SEB-L-S 6

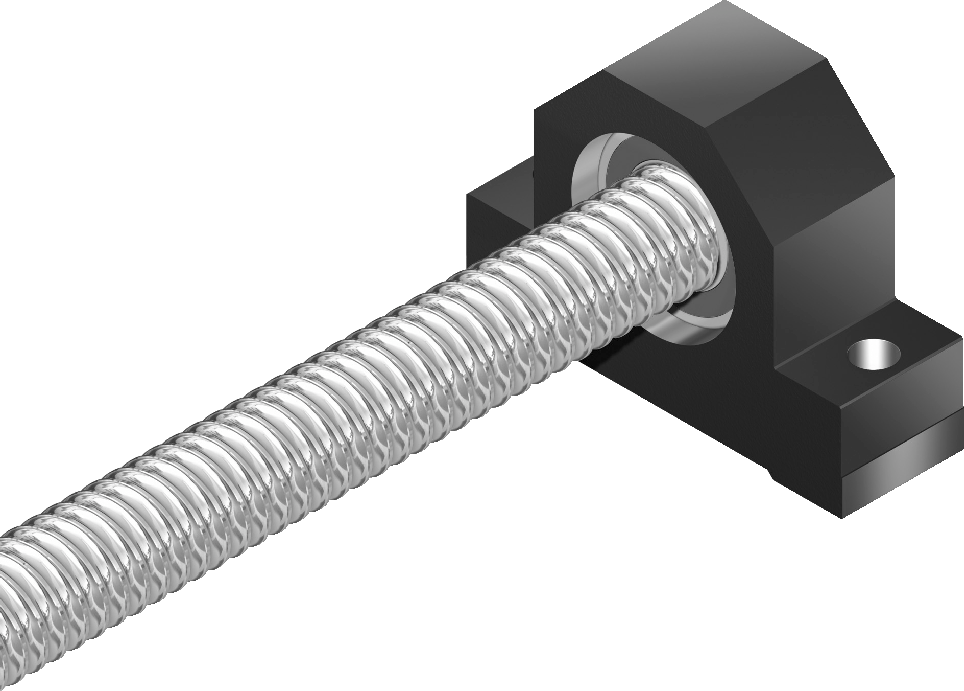

Bosch Rexroth Bosch Rexroth PILLOW BLOCK SEB-L-S 17
Bosch Rexroth Bosch Rexroth PILLOW BLOCK SEB-L-S 60

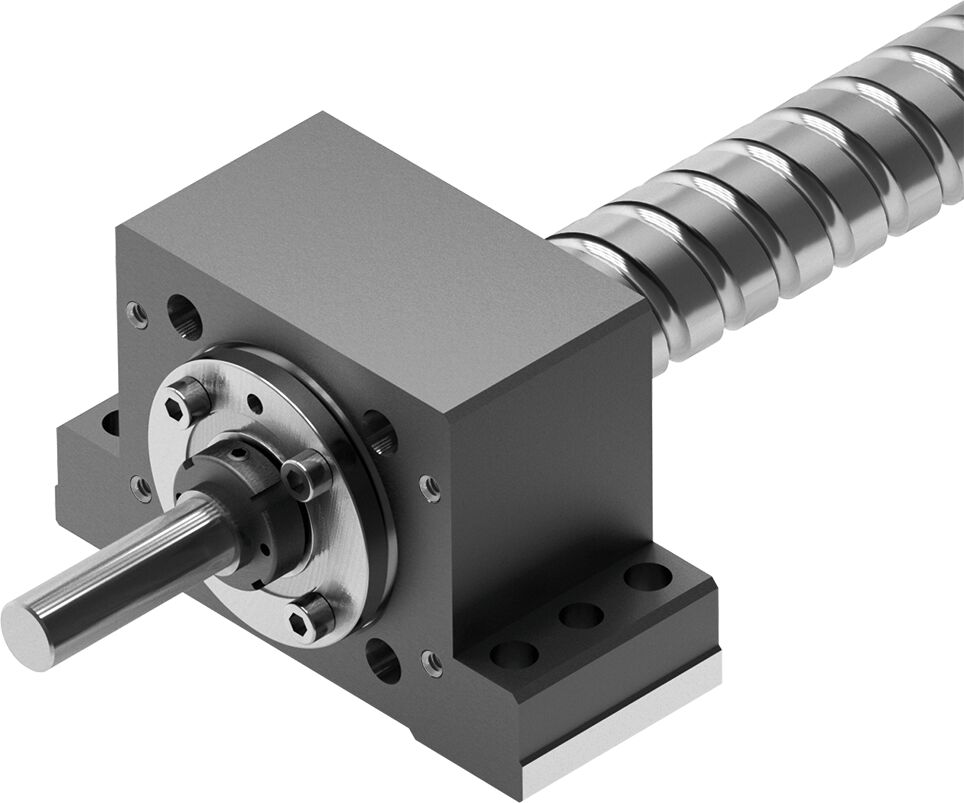

Bosch Rexroth Bosch Rexroth PILLOW BLOCK SES-F-Z 17
