Bosch Rexroth BEARING LAF-B-A 17 BG
Bosch Rexroth R159001730 - Linear Motion & Guides - Type: Angular-contact thrust ball bearing; Weight (Kg): 0.52; Dimension [d] [mm]: 17.
Bosch Rexroth R159001730 is a Linear Motion & Guides catalog item from Bosch Rexroth. The manufacturer's published data for this part number specifies Type: Angular-contact thrust ball bearing and Weight (Kg): 0.52.
Load on bearing (see general technical notes and information for bearings, "Project planning notes")
Published specifications for this part include Dimension [d] [mm]: 17; Nominal size [mm]: 16 x 5/10/16; Outer diameter D [mm]: 62.0; Static load capacity C0 [N]: 31000.0; Dimension B (profiled rail systems) [mm]: 25; Dynamic load capacity C [N]: 18800.0; Limit speed (grease) nmax: 3300; Limit speed nmin [min⁻¹]: 3300; Footnote mass m: R159001730; Rigidity against tilting Rkl [Nm/mrad]: 80; Bearing frictional torque with seal MRb [Nm]: 0.24; Rigidity of the bearing (axial) RFB [N/μm]: 450. The complete technical table is shown in the Specifications tab on this page.
| Bearing frictional torque with seal MRb [Nm] | 0.24 |
|---|---|
| Dimension [d] [mm] | 17 |
| Dimension B (profiled rail systems) [mm] | 25 |
| Dimension d tolerance [mm] | -0.01 |
| Dimension J [mm] | 48 |
| Dynamic load capacity C [N] | 18800.0 |
| Footnote mass m | R159001730 |
| Limit speed (grease) nmax | 3300 |
| Limit speed nmin [min⁻¹] | 3300 |
| Nominal size [mm] | 16 x 5/10/16 |
| Note: dynamic load capacity C | Load on bearing (see general technical notes and information for bearings, "Project planning notes") |
| Note: static load capacity C0 | Load on bearing (see general technical notes and information for bearings, "Project planning notes") |
| Outer diameter D [mm] | 62.0 |
| Rigidity against tilting Rkl [Nm/mrad] | 80 |
| Rigidity of the bearing (axial) RFB [N/μm] | 450 |
| Static load capacity C0 [N] | 31000.0 |
| Type | Angular-contact thrust ball bearing |
| Weight (Kg) | 0.52 |
Frequently Asked Questions
How do I get pricing for R159001730?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R159001730?
R159001730 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R159001730?
Key specifications include Bearing frictional torque with seal MRb [Nm]: 0.24; Dimension [d] [mm]: 17; Dimension B (profiled rail systems) [mm]: 25; Dimension d tolerance [mm]: -0.01. The full specification table on this page lists every published attribute for this part.
How quickly can R159001730 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

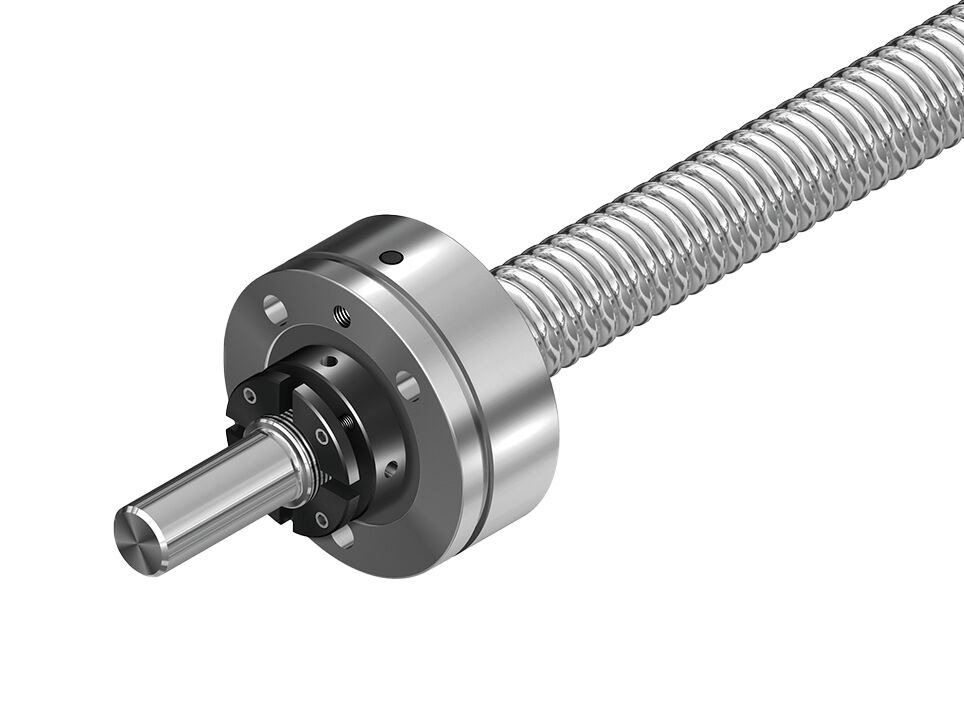

Bosch Rexroth Bosch Rexroth BEARING LAF-B-Z 20 BG
