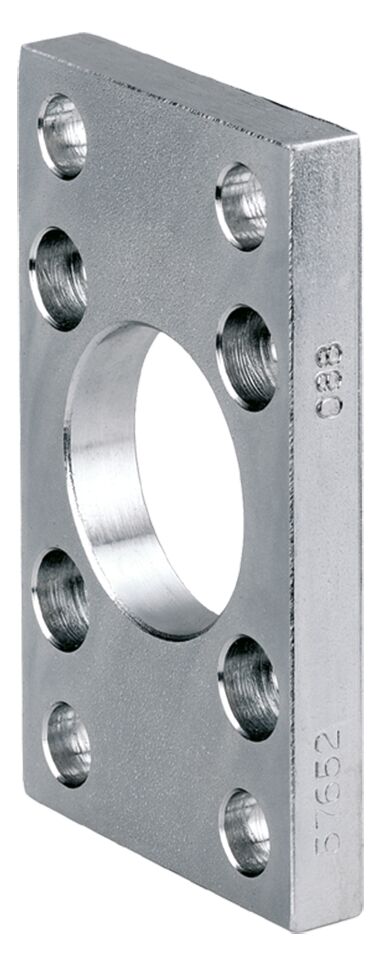

Bosch Rexroth FLANGE MOUNTING EMC80
Bosch Rexroth R15615A002 - Assembly Technology - Material: Galvanized steel; Weight (Kg): 1.57; Nominal size [mm]: 80.
Bosch Rexroth R15615A002 is a Assembly Technology catalog item from Bosch Rexroth. The manufacturer's published data for this part number specifies Material: Galvanized steel and Weight (Kg): 1.57.
Key manufacturer data on file for this item includes Nominal size [mm]: 80; Dimension L4 [mm]: 9; Fastening elements for electromechanical cylinders: Flange fastening; Material of electromechanical cylinders: Steel; Dimension D1 H13 [mm]: 11; Surface finishing: galvanized; Dimension D H11 [mm]: 55; Dimension D2 H13 [mm]: 18; Dimension FB [mm]: 12; Dimension MF [mm]: 16; Dimension R [mm]: 63; Dimension R tolerance [mm]: ±0.2. See the Specifications tab on this page for the full technical table.
| Dimension D H11 [mm] | 55 |
|---|---|
| Dimension D1 H13 [mm] | 11 |
| Dimension D2 H13 [mm] | 18 |
| Dimension E max. [mm] | 100 |
| Dimension FB [mm] | 12 |
| Dimension L4 [mm] | 9 |
| Dimension MF [mm] | 16 |
| Dimension MF tolerance [mm] | ±0.1 |
| Dimension R [mm] | 63 |
| Dimension R tolerance [mm] | ±0.2 |
| Dimension TF [mm] | 126 |
| Dimension TF tolerance [mm] | ±0.2 |
| Dimension TG1 [mm] | 72 |
| Dimension TG1 tolerance [mm] | ±0.2 |
| Dimension UF [mm] | 154 |
| Dimension UF tolerance [mm] | ±0.2 |
| Fastening elements for electromechanical cylinders | Flange fastening |
| Material | Galvanized steel |
| Material of electromechanical cylinders | Steel |
| Nominal size [mm] | 80 |
| Surface finishing | galvanized |
| Weight (Kg) | 1.57 |
Frequently Asked Questions
How do I get pricing for R15615A002?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R15615A002?
R15615A002 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R15615A002?
Key specifications include Dimension D H11 [mm]: 55; Dimension D1 H13 [mm]: 11; Dimension D2 H13 [mm]: 18; Dimension E max. [mm]: 100. The full specification table on this page lists every published attribute for this part.
How quickly can R15615A002 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

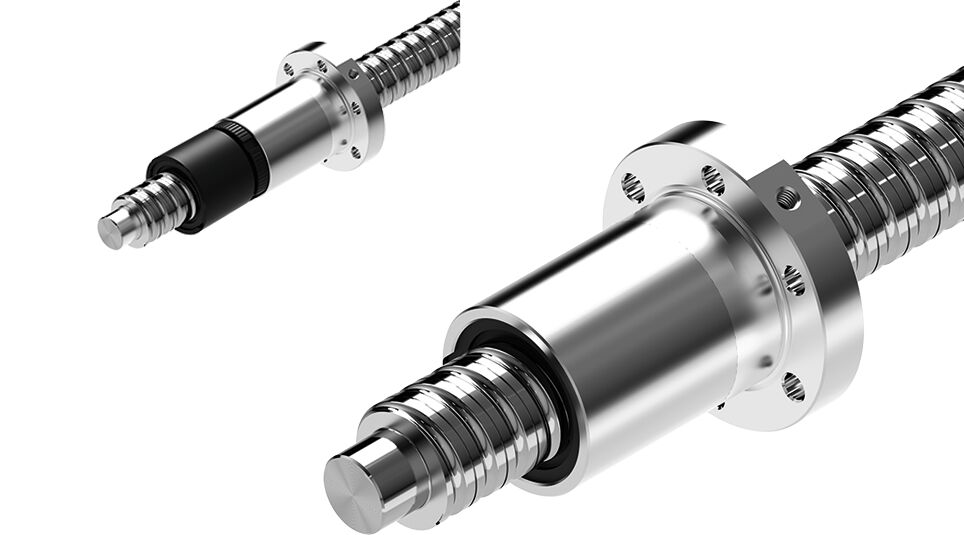

Bosch Rexroth Bosch Rexroth BALL NUT FEM-E-S 16X5LX3-4
Bosch Rexroth Bosch Rexroth FLANGE MOUNTING EMC100

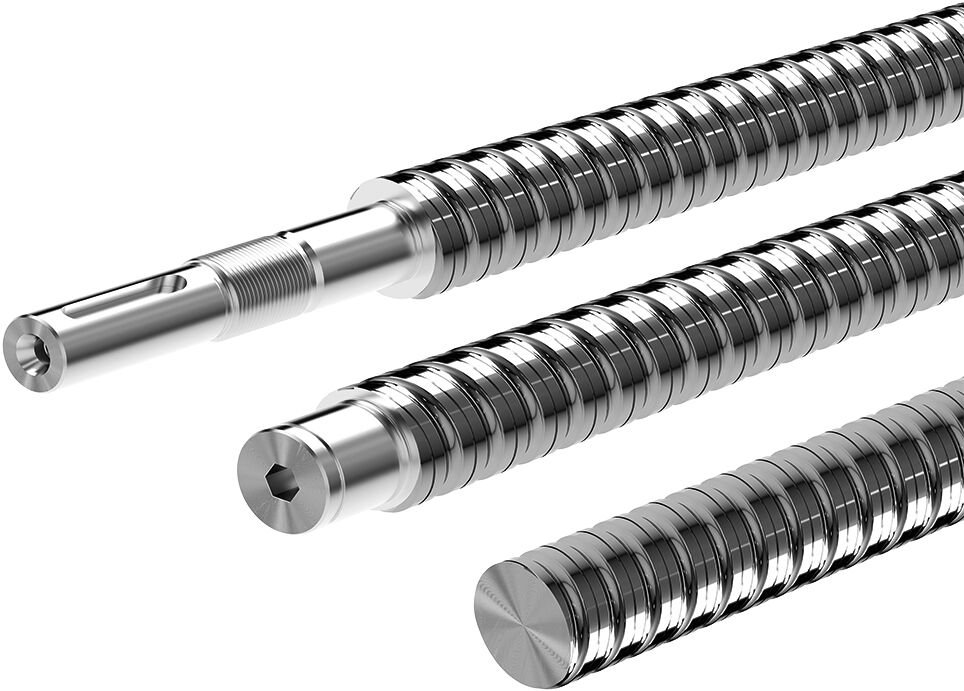

Bosch Rexroth Bosch Rexroth BALL SCREW 16X5LX3 (T7)

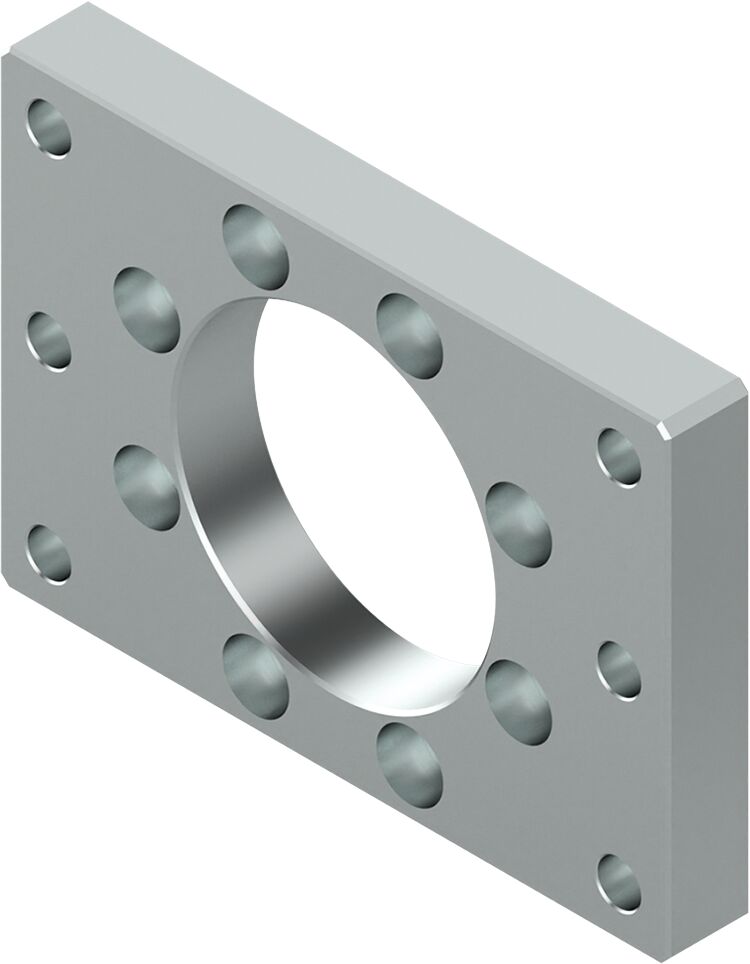

Bosch Rexroth Bosch Rexroth FLANGE EMC-115-HP PSBG
