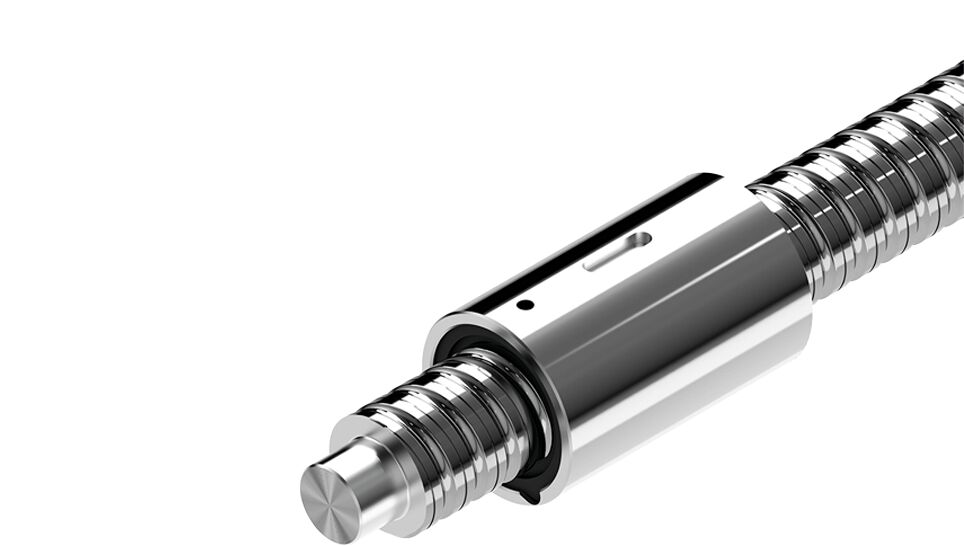

Bosch Rexroth BALL NUT ZEM-E-S 40X10RX6-4
Bosch Rexroth R151244012 - Assembly Technology - Series: Standard series; Category: A; Weight (Kg): 1.14.
This listing covers the Bosch Rexroth R151244012, a part number in the Assembly Technology category. The manufacturer's published data for this part number specifies Series: Standard series and Category: A.
The specification set recorded for this part number covers Weight (Kg): 1.14; Nominal size [mm]: 40 x 10R x 6 - 4; Dimension D1 [mm]: 38; Dimension D2 [mm]: 33.8; Note: maximum permissible speed vmax: See "Characteristic speed d0 • n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed ncr" (see General Technical Notes and Information, "Project planning notes"); Static load capacity C0 [N]: 86400.0; Note: static load capacity C0: The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).; Dynamic load capacity C [N]: 60000.0; Note: dynamic load capacity C: The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).; Dimension L [mm]: 70; Dimension L tolerance [mm]: ±0.1; Dimension t1 [mm]: 3. See the Specifications tab on this page for the full technical table.
| Bearing temperature max [°C] | +80 |
|---|---|
| Bearing temperature min [°C] | -15 |
| Category | A |
| Dimension B P9 [mm] | 5 |
| Dimension D1 [mm] | 38 |
| Dimension D1 g6 [mm] | 63 |
| Dimension D2 [mm] | 33.8 |
| Dimension D4 [mm] | 4 |
| Dimension L [mm] | 70 |
| Dimension L tolerance [mm] | ±0.1 |
| Dimension L11 [mm] | 20 |
| Dimension L11 tolerance [mm] | ±0.2 |
| Dimension L6 [mm] | 25 |
| Dimension L7 [mm] | 14 |
| Dimension t1 [mm] | 3 |
| Direction of lead | Right |
| Dynamic load capacity C [N] | 60000.0 |
| Maximum operating temperature [°C] | +80 |
| Maximum permissible linear speed vmax (m/min) [m/min] | 38.0 |
| Minimum operating temperature [°C] | -10 |
| Nominal size [mm] | 40 x 10R x 6 - 4 |
| Note: dynamic load capacity C | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes). |
| Note: maximum permissible speed vmax | See "Characteristic speed d<sub>0 </sub>• n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed n<sub>cr</sub>" (see General Technical Notes and Information, "Project planning notes") |
| Note: permissible operating temperature (min. ... max.) | Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case. |
| Note: static load capacity C0 | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes). |
| Nut type | ZEM-E-S cylindrical single nut |
| Operating temperature (min. … max.) | -10 °C ... +80 °C |
| Screw drive seal | With seal |
| Series | Standard series |
| Static load capacity C0 [N] | 86400.0 |
| Storage temperature (min. … max.) | -15 °C ... +80 °C |
| Weight (Kg) | 1.14 |
Frequently Asked Questions
How do I get pricing for R151244012?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R151244012?
R151244012 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R151244012?
Key specifications include Bearing temperature max [°C]: +80; Bearing temperature min [°C]: -15; Category: A; Dimension B P9 [mm]: 5. The full specification table on this page lists every published attribute for this part.
How quickly can R151244012 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth BALL NUT ZEM-E-S 32X32RX3,969-2

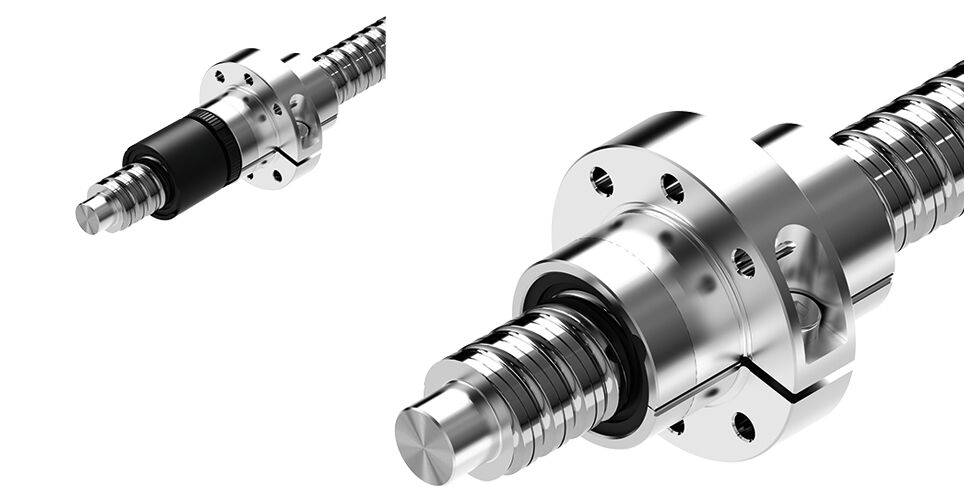

Bosch Rexroth Bosch Rexroth BALL NUT SEM-E-S 40X10RX6-4

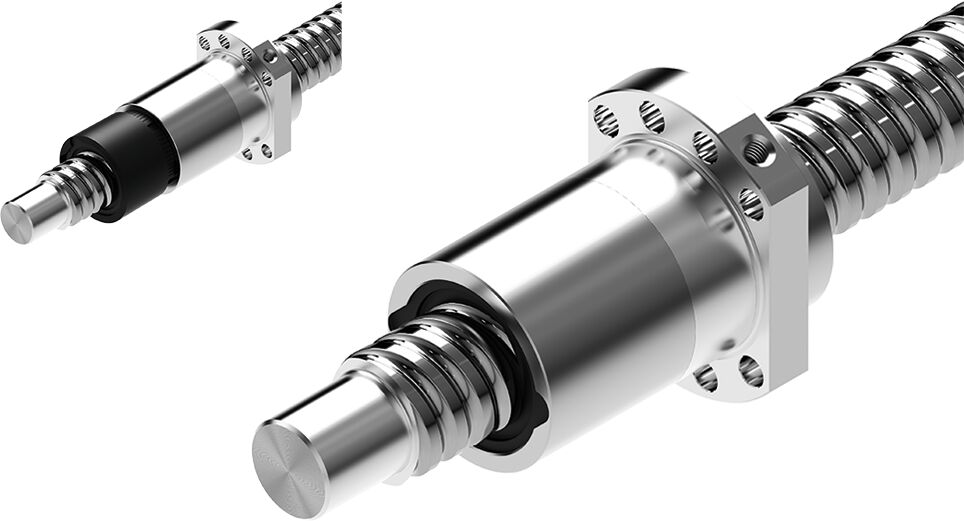

Bosch Rexroth Bosch Rexroth BALL NUT FED-E-B 32X20RX3,969-3X2
Bosch Rexroth Bosch Rexroth BALL NUT FED-E-B 40X20RX6-4X2

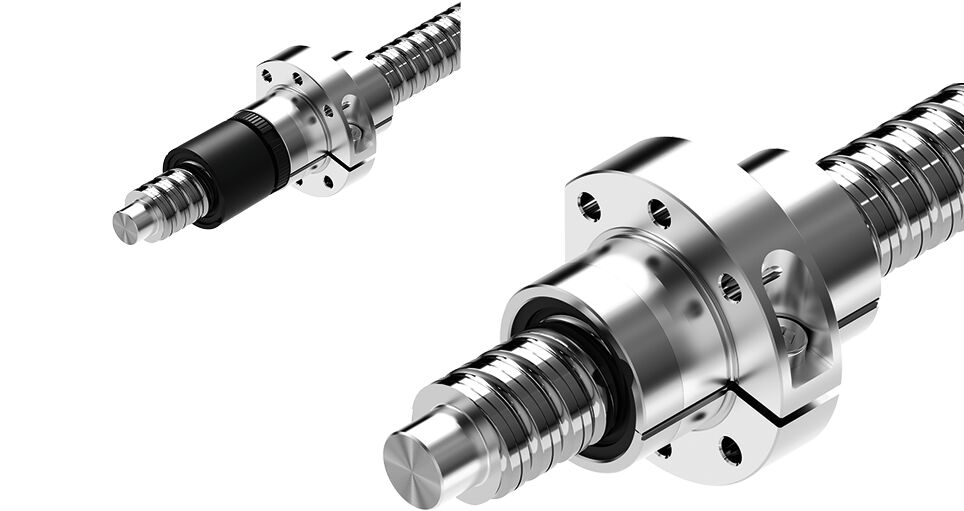

Bosch Rexroth Bosch Rexroth BALL NUT SEM-E-C 40X40RX6-3
