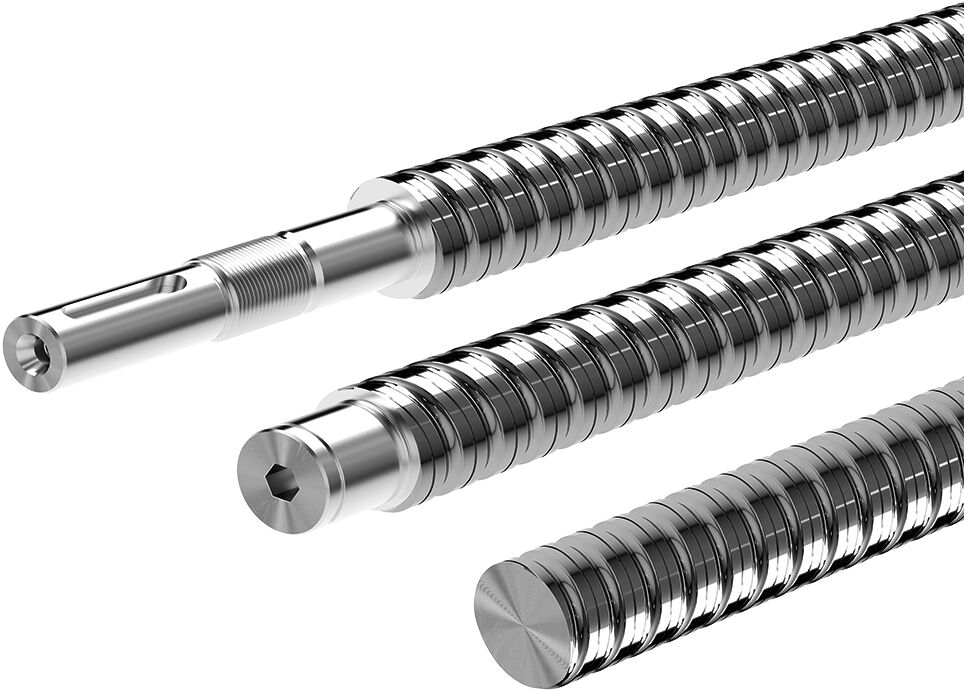

Bosch Rexroth BALL SCREW 63X20R6,5 (T7)
Bosch Rexroth R151167710 - Assembly Technology - Weight (Kg): 0; Nominal size [mm]: 63 x 20R x 6,5; Max. length Lmax [mm]: 4500.0.
Bosch Rexroth R151167710 is a Assembly Technology catalog item from Bosch Rexroth. The manufacturer's published data for this part number specifies Weight (Kg): 0 and Nominal size [mm]: 63 x 20R x 6,5.
Key manufacturer data on file for this item includes Max. length Lmax [mm]: 4500.0; Dimension D1 [mm]: 61; Dimension D2 [mm]: 56.3; Mass m (kg/m) [kg/m]: 21.42; Operating temperature (min. … max.): -10 °C ... +80 °C; Storage temperature (min. … max.): -15 °C ... +80 °C; Direction of lead: Right; Note: permissible operating temperature (min. ... max.): Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.; Maximum operating temperature [°C]: +80; Bearing temperature max [°C]: +80; Minimum operating temperature [°C]: -10; Bearing temperature min [°C]: -15. See the Specifications tab on this page for the full technical table.
| Bearing temperature max [°C] | +80 |
|---|---|
| Bearing temperature min [°C] | -15 |
| Dimension D1 [mm] | 61 |
| Dimension D2 [mm] | 56.3 |
| Direction of lead | Right |
| Mass m (kg/m) [kg/m] | 21.42 |
| Max. length Lmax [mm] | 4500.0 |
| Maximum operating temperature [°C] | +80 |
| Minimum operating temperature [°C] | -10 |
| Nominal size [mm] | 63 x 20R x 6,5 |
| Note: permissible operating temperature (min. ... max.) | Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case. |
| Operating temperature (min. … max.) | -10 °C ... +80 °C |
| Storage temperature (min. … max.) | -15 °C ... +80 °C |
| Weight (Kg) | 0.000000 |
Frequently Asked Questions
How do I get pricing for R151167710?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R151167710?
R151167710 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R151167710?
Key specifications include Bearing temperature max [°C]: +80; Bearing temperature min [°C]: -15; Dimension D1 [mm]: 61; Dimension D2 [mm]: 56.3. The full specification table on this page lists every published attribute for this part.
How quickly can R151167710 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth BALL SCREW 63X10RX6 (T5)

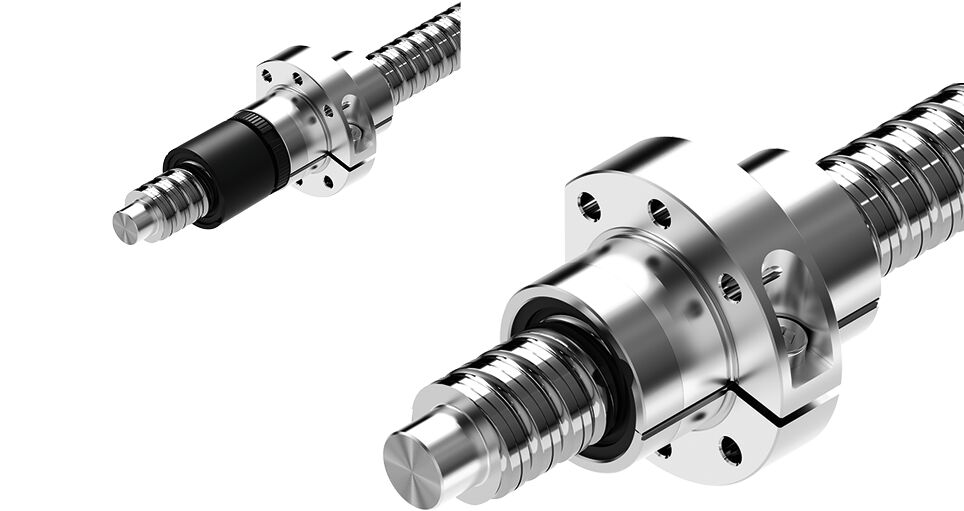

Bosch Rexroth Bosch Rexroth BALL NUT SEM-E-C 16X5RX3-4
Bosch Rexroth Bosch Rexroth BALL SCREW 50X10RX6 (T7)
Bosch Rexroth Bosch Rexroth BALL NUT ZEM-E-S 16X16RX3-2

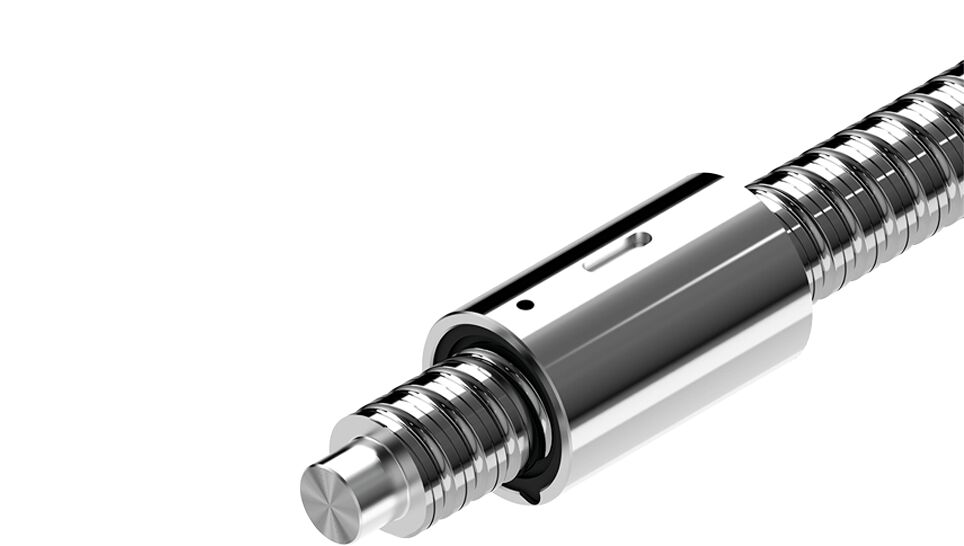

Bosch Rexroth Bosch Rexroth BALL NUT ZEM-E-S 25X5RX3-4
