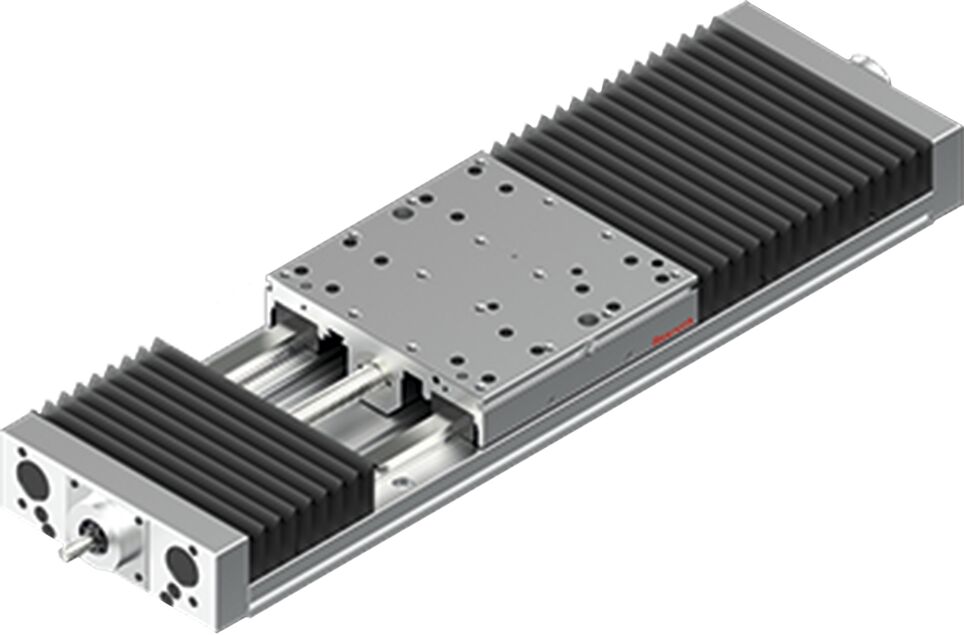

Bosch Rexroth BALL RAIL TABLE TKK-325-ST-1
Flexible configuration as a complete drive system for almost any application due to optional structural design. Available in four sizes in finely graduated lengths. High rigidity, positioning accuracy and repeatability. High-precision flow behavior over the entire travel range. Matching Rexroth motors and extensive accessories. Ball rail tables TKK are ready-to-install linear axes and available in 2 versions
| Constant for fixed portion of mass kg fix [kg] | 5 |
|---|---|
| Constant for fixed portion of mass moment of inertia kJ fix [kg·mm²] | 1270.6 |
| Constant for mass-specific portion of mass moment of inertia kJ m [mm²] | 25.94 |
| Constant for variable-length portion of mass kg var [kg/mm] | 0.076 |
| Constant for variable-length portion of mass moment of inertia kJ var [kg·mm] | 0.712 |
| Dynamic load capacity, ball screw assembly Cbs [N] | 34200 |
| Dynamic load capacity, fixed bearing Cfb [N] | 26000 |
| Dynamic load capacity, guideway Cgw [N] | 149400 |
| Dynamic longitudinal moment load capacity ML [Nm] | 23390.0 |
| Dynamic torsional moment load capacity Mt [Nm] | 17180.0 |
| Friction torque of the system MRs, C1, moderate preload [Nm] | 1.36 |
| Friction torque of the system MRs, C2, average preload [Nm] | 1.46 |
| Linear axes variant | Ball screw assembly with steel profile |
| Max. length Lmax [mm] | 2380.0 |
| Maximum acceleration rate amax [m/s²] | 50.0 |
| Maximum dynamic load in y-direction Fy max [N] | 30800 |
| Maximum dynamic load in z1-direction Fz1 max [N] | 123200 |
| Maximum dynamic load in z2-direction Fz2 max [N] | 84400 |
| Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm] | 9700 |
| Maximum permissible dynamic torsional moment about the y-axis My max [Nm] | 13200 |
| Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm] | 4820 |
| Maximum permissible linear speed vmax [m/s] | 1.6 |
| Maximum travel range smax - formula | Effektiver Hub + 2 · Überlauf |
| Minimum travel range smin [mm] | 109 |
| Moved mass of system mca [kg] | 45.4 |
| Nominal size [mm] | TKK-325 |
| Note: maximum permissible speed vmax | For ball rail tables without drive and without bellows, permissible travel speed v<sub>max</sub> = 5 m/s |
| Note: minimum travel range smin | Minimum required travel range to ensure a reliable lubrication distribution |
| Note: Permissible ambient temperature mechanics (min. … max.) | No dropping below dew point |
| Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.) | loss of performance at 40 °C or higher |
| Note: Point of force application Z1 | Abstandsmass zur Berücksichtigung bei der Berechnung der Momentenbelastung auf das Tischteil |
| Permissible ambient temperature mechanics (min. … max.) | –10 °C ... 60 °C |
| Permissible ambient temperature with Rexroth servo motor (min. ... max.) | 0 °C ... 40 °C |
| Planar moment of inertia about the y-axis ly [cm⁴] | 17.27 |
| Planar moment of inertia about the z-axis lz [cm⁴] | 1826.96 |
| Point of force application Z1 [mm] | 48.5 |
| Soiling | Not permissible |
| Weight (Kg) | 0.000000 |
