Bosch Rexroth SHAFT SUPPORT BLOCK WBA-16-FO
Bosch Rexroth R105701600 - Linear Motion & Guides - Housing material: Aluminum = A; Type: Shaft support block; Weight (Kg): 0.11.
Bosch Rexroth R105701600 is a Linear Motion & Guides catalog item from Bosch Rexroth. The manufacturer's published data for this part number specifies Housing material: Aluminum = A and Type: Shaft support block.
Key manufacturer data on file for this item includes Weight (Kg): 0.11; Dimension h [mm]: 25.0; Dimension A (profiled rail systems) [mm]: 53; Dimension H1 (profiled rail systems) [mm]: 42; Dimension B (profiled rail systems) [mm]: 24; Shaft diameter d [mm]: 16.0; Dimension E [mm]: 38; Dimension N1 (profiled rail systems) [mm]: 21; Dimension N2 (profiled rail systems) [mm]: 18; Dimension S [mm]: 6.6; Dimension V [mm]: 5; Dimension M [mm]: 26.5. The complete technical table is shown in the Specifications tab on this page.
| Accessories for linear bushings | Shaft support blocks |
|---|---|
| Dimension A (profiled rail systems) [mm] | 53 |
| Dimension B (profiled rail systems) [mm] | 24 |
| Dimension d H8 [mm] | 16 |
| Dimension E [mm] | 38 |
| Dimension h [mm] | 25.0 |
| Dimension H1 (profiled rail systems) [mm] | 42 |
| Dimension H4 [mm] | 13 |
| Dimension M [mm] | 26.5 |
| Dimension N1 (profiled rail systems) [mm] | 21 |
| Dimension N2 (profiled rail systems) [mm] | 18 |
| Dimension S [mm] | 6.6 |
| Dimension SW [mm] | 3 |
| Dimension V [mm] | 5 |
| Housing material | Aluminum = A |
| Shaft diameter d [mm] | 16.0 |
| Tightening torque [Nm] | 6.6 |
| Type | Shaft support block |
| Weight (Kg) | 0.11 |
Frequently Asked Questions
How do I get pricing for R105701600?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R105701600?
R105701600 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R105701600?
Key specifications include Accessories for linear bushings: Shaft support blocks; Dimension A (profiled rail systems) [mm]: 53; Dimension B (profiled rail systems) [mm]: 24; Dimension d H8 [mm]: 16. The full specification table on this page lists every published attribute for this part.
How quickly can R105701600 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

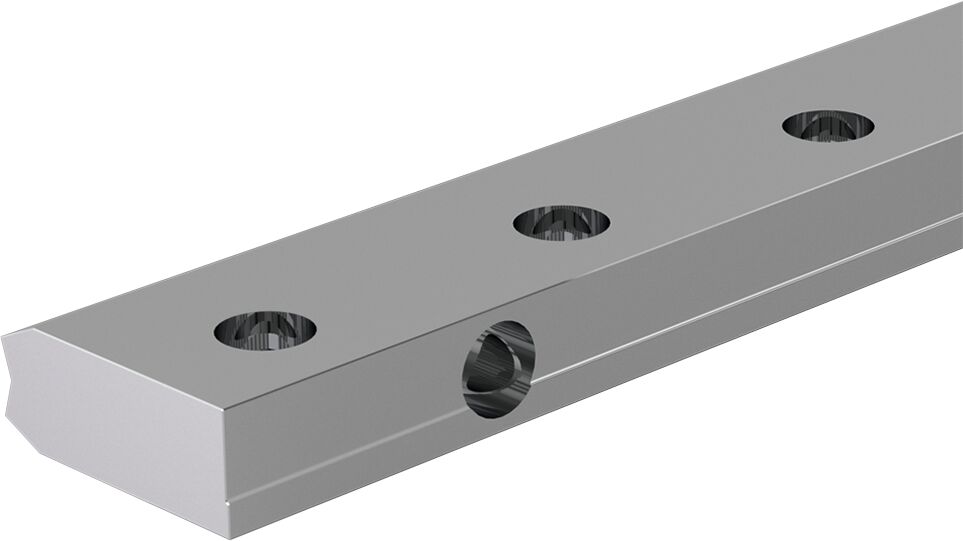

Bosch Rexroth Bosch Rexroth SHAFT SUPPORT RAIL WU25-AS2-600

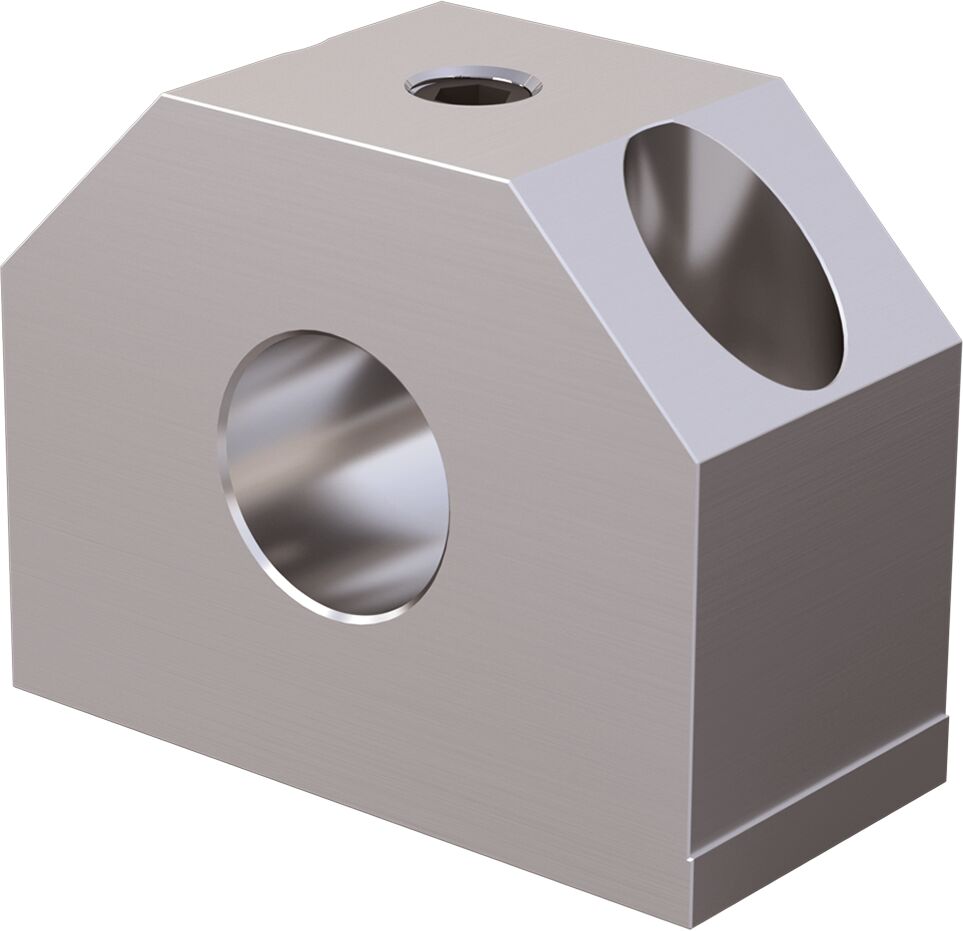

Bosch Rexroth Bosch Rexroth SHAFT SUPPORT BLOCK WBA-25-FO
Bosch Rexroth Bosch Rexroth SHAFT SUPPORT BLOCK WBA-60-FO

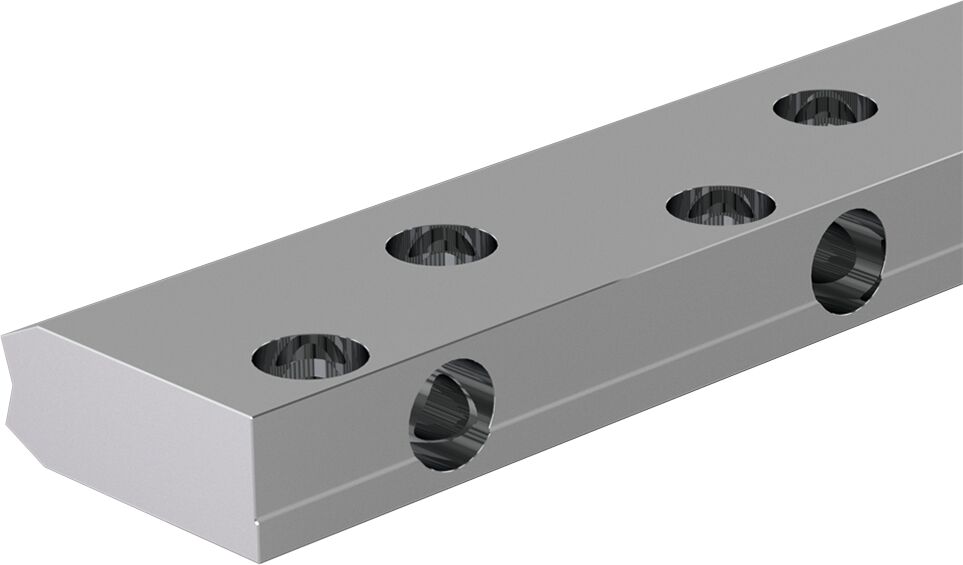

Bosch Rexroth Bosch Rexroth SHAFT SUPPORT RAIL WU40-AS1-600
