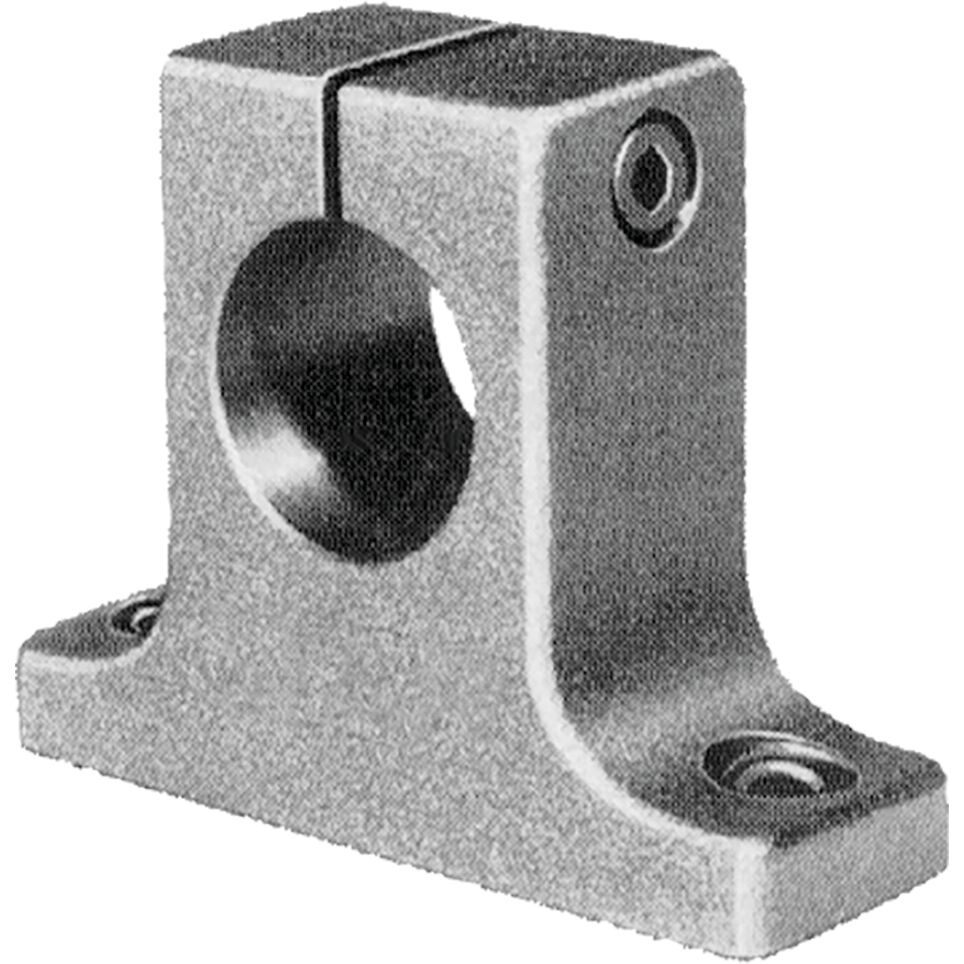

Bosch Rexroth SHAFT SUPPORT BLOCK WBS-20
Bosch Rexroth R105502000 - Linear Motion & Guides - Housing material: Spheroidal graphite cast iron and steel; Type: Shaft support block; Weight (Kg): 0.23.
The R105502000 from Bosch Rexroth is listed under Linear Motion & Guides in our catalog. The manufacturer's published data for this part number specifies Housing material: Spheroidal graphite cast iron and steel and Type: Shaft support block.
The specification set recorded for this part number covers Weight (Kg): 0.23; Dimension h [mm]: 30.0; Dimension A (profiled rail systems) [mm]: 60; Dimension H1 (profiled rail systems) [mm]: 50; Dimension B (profiled rail systems) [mm]: 20; Shaft diameter d [mm]: 20.0; Dimension E [mm]: 45; Dimension S [mm]: 5.5; Dimension V [mm]: 8; Accessories for linear bushings: Shaft support blocks; Dimension A1 (profiled rail systems) [mm]: 32; Dimension d H8 [mm]: 20. See the Specifications tab on this page for the full technical table.
| Accessories for linear bushings | Shaft support blocks |
|---|---|
| Dimension A (profiled rail systems) [mm] | 60 |
| Dimension A1 (profiled rail systems) [mm] | 32 |
| Dimension B (profiled rail systems) [mm] | 20 |
| Dimension d H8 [mm] | 20 |
| Dimension E [mm] | 45 |
| Dimension h [mm] | 30.0 |
| Dimension H1 (profiled rail systems) [mm] | 50 |
| Dimension S [mm] | 5.5 |
| Dimension SW [mm] | 3 |
| Dimension V [mm] | 8 |
| Footnote Dimension H1 | Tolerance ISO 8062-3 - DCTG 11. |
| Housing material | Spheroidal graphite cast iron and steel |
| Shaft diameter d [mm] | 20.0 |
| Type | Shaft support block |
| Weight (Kg) | 0.23 |
Frequently Asked Questions
How do I get pricing for R105502000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R105502000?
R105502000 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R105502000?
Key specifications include Accessories for linear bushings: Shaft support blocks; Dimension A (profiled rail systems) [mm]: 60; Dimension A1 (profiled rail systems) [mm]: 32; Dimension B (profiled rail systems) [mm]: 20. The full specification table on this page lists every published attribute for this part.
How quickly can R105502000 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

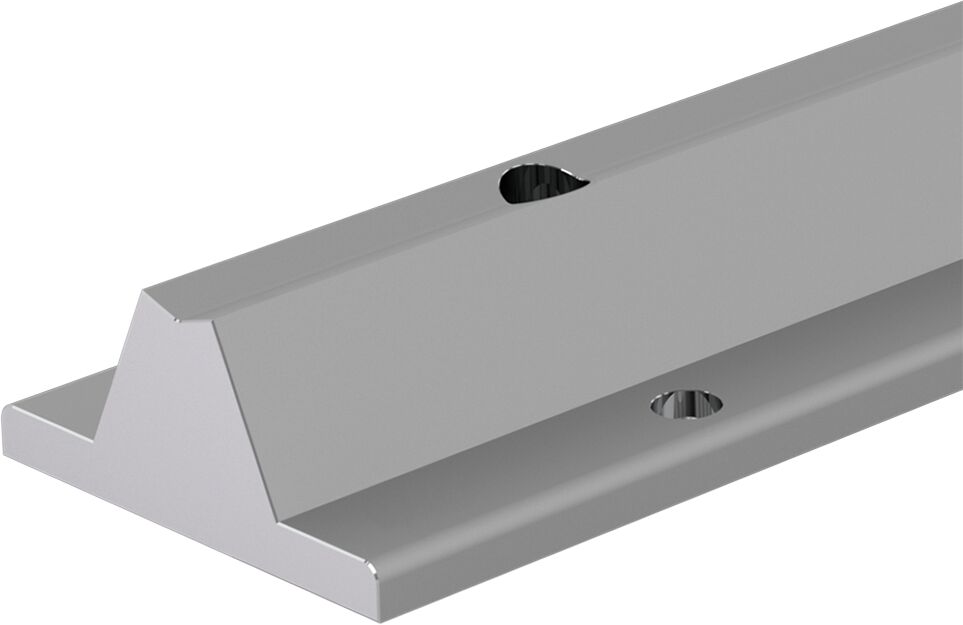

Bosch Rexroth Bosch Rexroth SHAFT SUPPORT RAIL WU30-AF1-600
Bosch Rexroth Bosch Rexroth SHAFT SUPPORT BLOCK WBG-12F

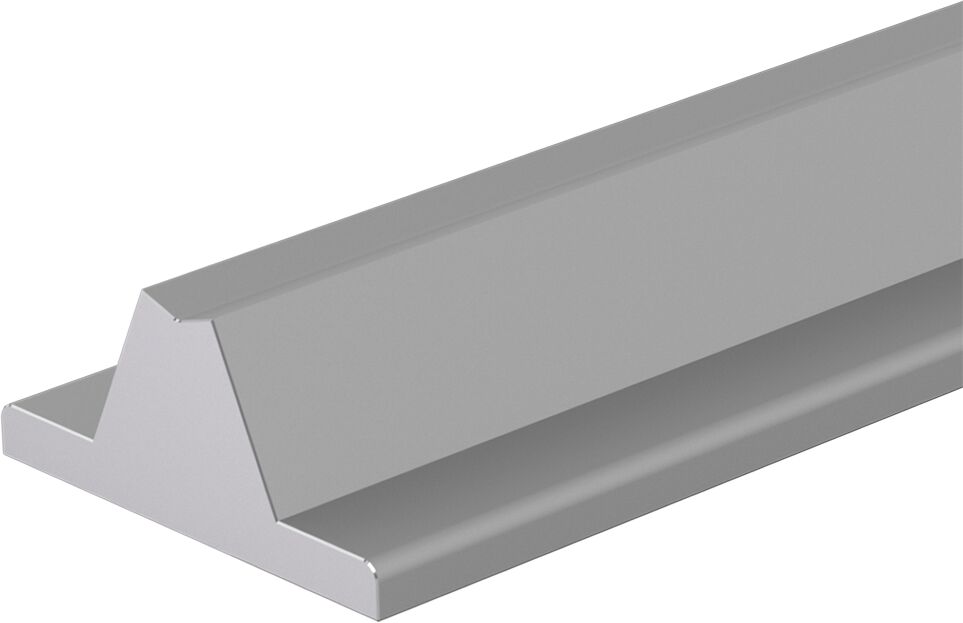

Bosch Rexroth Bosch Rexroth SHAFT SUPPORT RAIL WU20-AF-600
