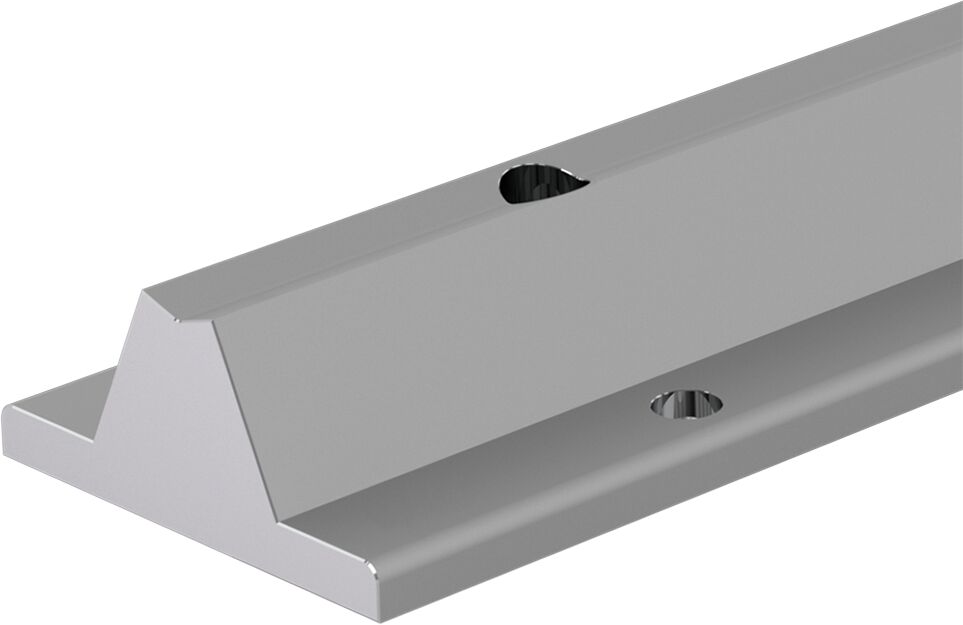

Bosch Rexroth SHAFT SUPPORT RAIL WU16-AF2-600
Bosch Rexroth R105071600 - Linear Motion & Guides - Weight (Kg): 0.69; Length [l] [mm]: 600.0; Dimension h [mm]: 26.0.
The R105071600 from Bosch Rexroth is listed under Linear Motion & Guides in our catalog. The manufacturer's published data for this part number specifies Weight (Kg): 0.69 and Length [l] [mm]: 600.0.
Published specifications for this part include Dimension h [mm]: 26.0; Dimension A (profiled rail systems) [mm]: 45; Shaft diameter d [mm]: 16.0; Dimension E [mm]: 33; Dimension V [mm]: 5; Material shaft support rails: Aluminum; Dimension M [mm]: 7; Dimension O1 thread x lead [mm]: M5x20; Dimension O2 thread diameter: M5x16; Dimension t [mm]: 7.6; Dimension U1 [mm]: 5; Angle β [°]: 50. See the Specifications tab on this page for the full technical table.
| Angle β [°] | 50 |
|---|---|
| Dimension A (profiled rail systems) [mm] | 45 |
| Dimension E [mm] | 33 |
| Dimension h [mm] | 26.0 |
| Dimension M [mm] | 7 |
| Dimension O1 thread x lead [mm] | M5x20 |
| Dimension O2 thread diameter | M5x16 |
| Dimension t [mm] | 7.6 |
| Dimension U1 [mm] | 5 |
| Dimension V [mm] | 5 |
| Length [l] [mm] | 600.0 |
| Material shaft support rails | Aluminum |
| Shaft diameter d [mm] | 16.0 |
| Weight (Kg) | 0.69 |
Frequently Asked Questions
How do I get pricing for R105071600?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R105071600?
R105071600 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R105071600?
Key specifications include Angle β [°]: 50; Dimension A (profiled rail systems) [mm]: 45; Dimension E [mm]: 33; Dimension h [mm]: 26.0. The full specification table on this page lists every published attribute for this part.
How quickly can R105071600 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth HOLLOW SHAFT WO-60H7-CR
Bosch Rexroth Bosch Rexroth SHAFT SUPPORT RAIL WU30-AS1-600

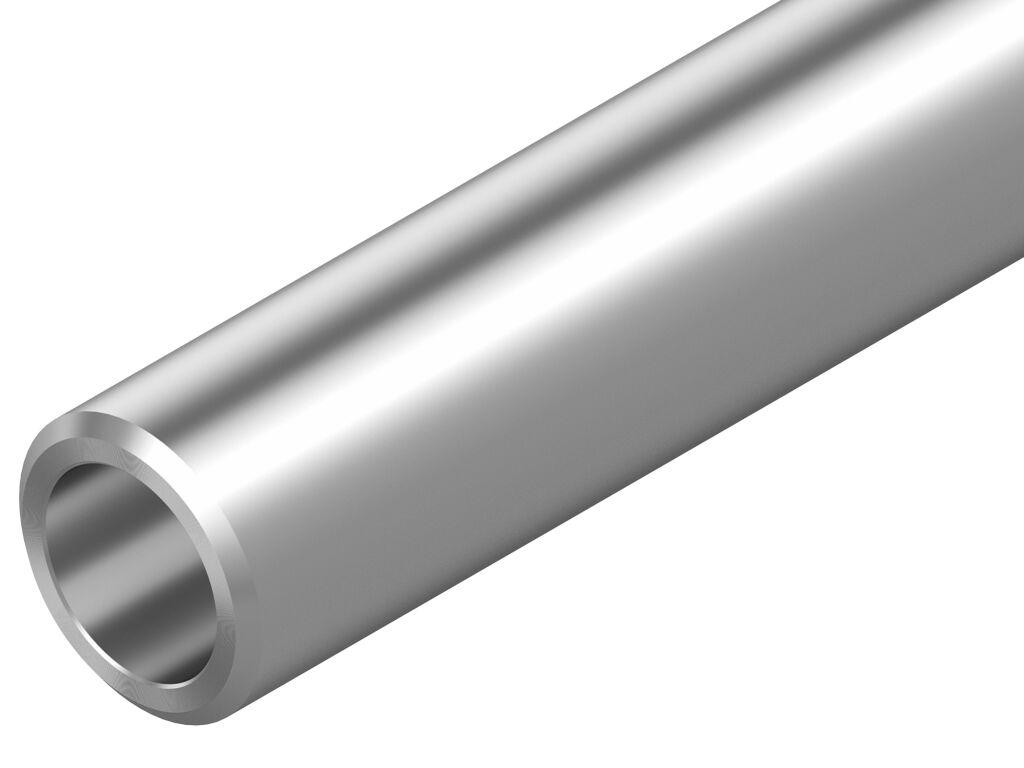

Bosch Rexroth Bosch Rexroth HOLLOW SHAFT WO-50H7-CR

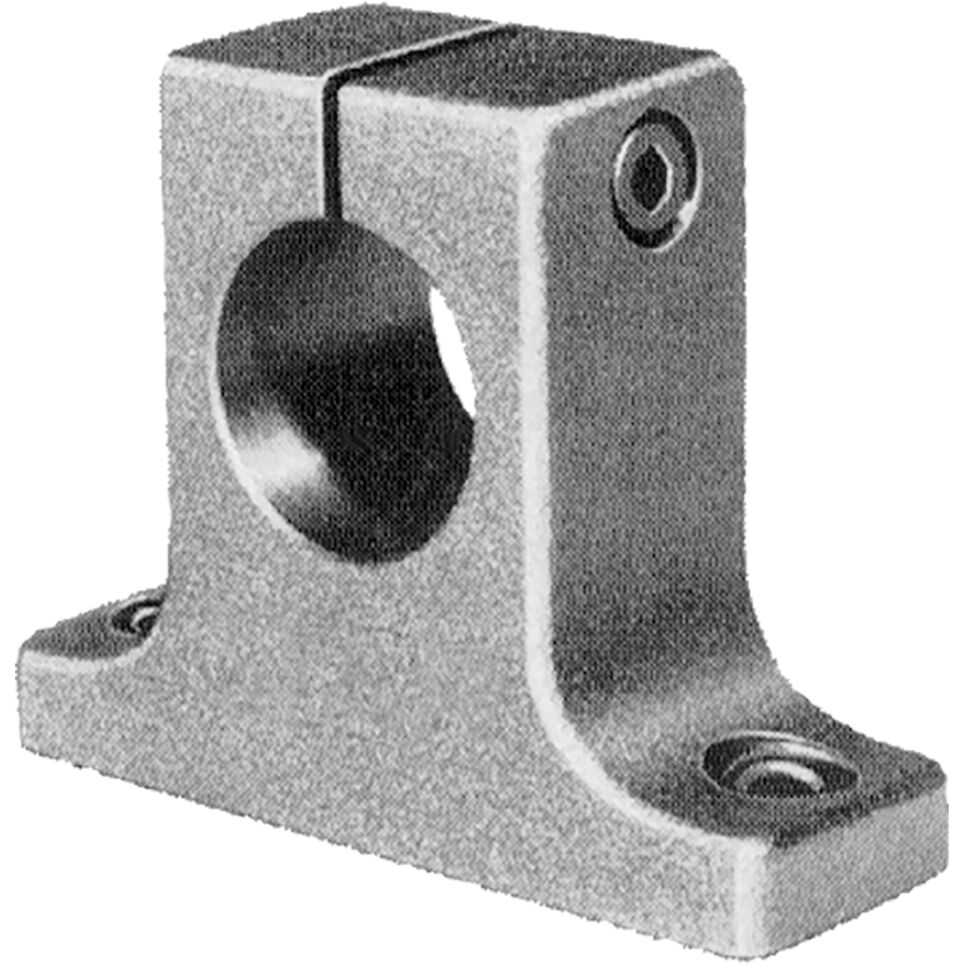

Bosch Rexroth Bosch Rexroth SHAFT SUPPORT BLOCK WBS-80
