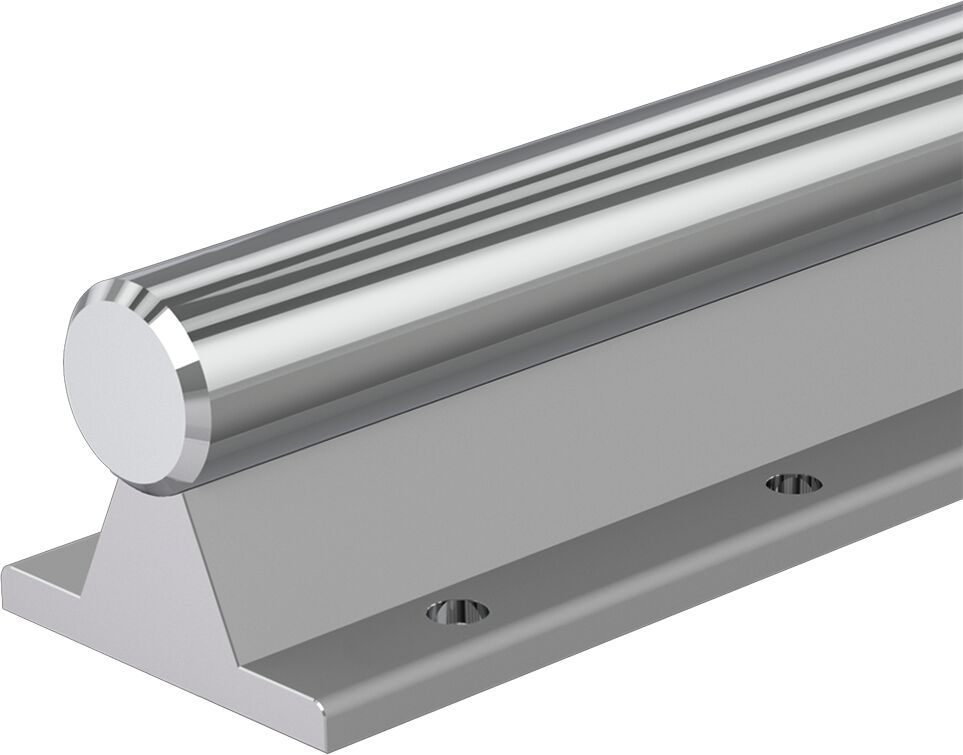

Bosch Rexroth SHAFT WITH SUPPORT WM-40-AF1-H7-
Bosch Rexroth R101404001 - Linear Motion & Guides - Weight (Kg): 0; Dimension h [mm]: 50.0; Dimension A (profiled rail systems) [mm]: 73.
This listing covers the Bosch Rexroth R101404001, a part number in the Linear Motion & Guides category. The manufacturer's published data for this part number specifies Weight (Kg): 0 and Dimension h [mm]: 50.0.
Published specifications for this part include Dimension A (profiled rail systems) [mm]: 73; Shaft diameter d [mm]: 40.0; Dimension E [mm]: 55; Mass m (kg/m) [kg/m]: 12.8; Material of precision steel shafts: Heat-treated steel Cf53; Tolerance grade shaft: h7; Dimension V [mm]: 8; Material shaft support rails: Aluminum; Dimension M [mm]: 15; Dimension O1 thread x lead [mm]: M10x40; Dimension O2 thread diameter: M8x25; Dimension t [mm]: 9.5. See the Specifications tab on this page for the full technical table.
| Angle β [°] | 50 |
|---|---|
| Dimension A (profiled rail systems) [mm] | 73 |
| Dimension E [mm] | 55 |
| Dimension h [mm] | 50.0 |
| Dimension M [mm] | 15 |
| Dimension N [mm] | 19 |
| Dimension O1 thread x lead [mm] | M10x40 |
| Dimension O2 thread diameter | M8x25 |
| Dimension t [mm] | 9.5 |
| Dimension U1 [mm] | 10 |
| Dimension V [mm] | 8 |
| Mass m (kg/m) [kg/m] | 12.8 |
| Material of precision steel shafts | Heat-treated steel Cf53 |
| Material shaft support rails | Aluminum |
| Shaft diameter d [mm] | 40.0 |
| Tolerance grade shaft | h7 |
| Weight (Kg) | 0.000000 |
Frequently Asked Questions
How do I get pricing for R101404001?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R101404001?
R101404001 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R101404001?
Key specifications include Angle β [°]: 50; Dimension A (profiled rail systems) [mm]: 73; Dimension E [mm]: 55; Dimension h [mm]: 50.0. The full specification table on this page lists every published attribute for this part.
How quickly can R101404001 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

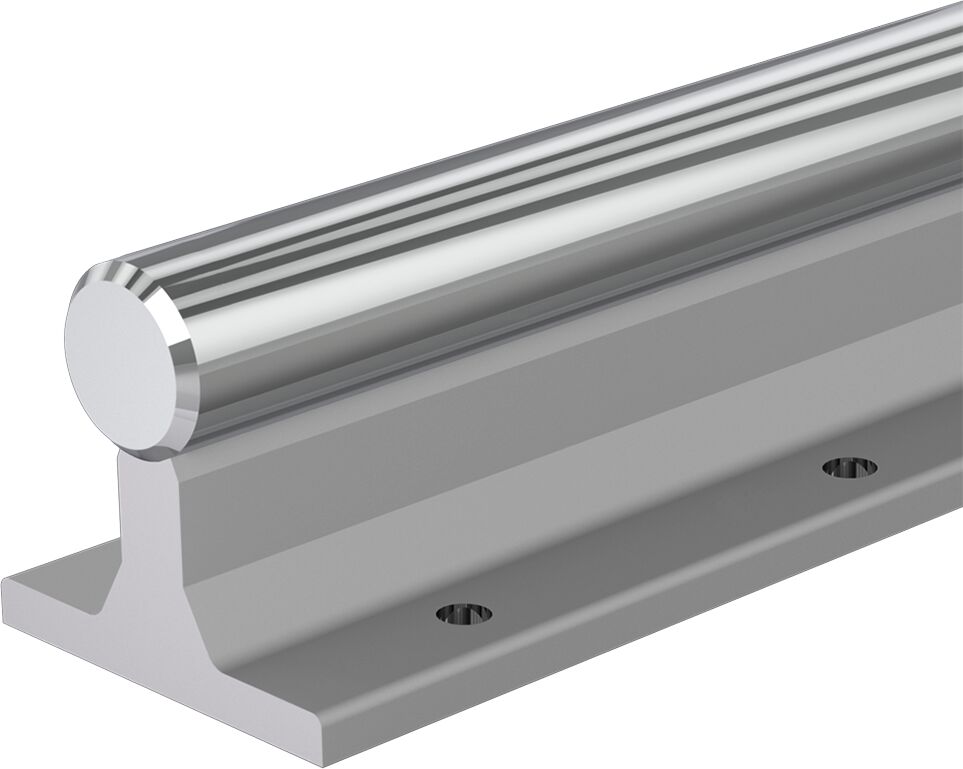

Bosch Rexroth Bosch Rexroth SHAFT WITH SUPPORT WM-40-AFH1-H7-

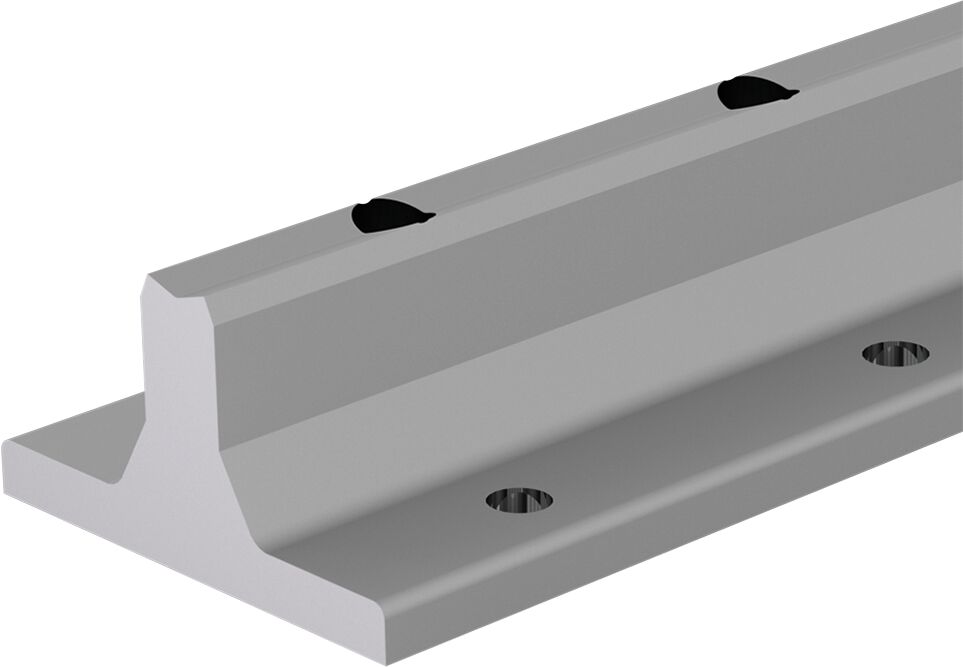

Bosch Rexroth Bosch Rexroth SHAFT SUPPORT RAIL WU40-AFH2-600

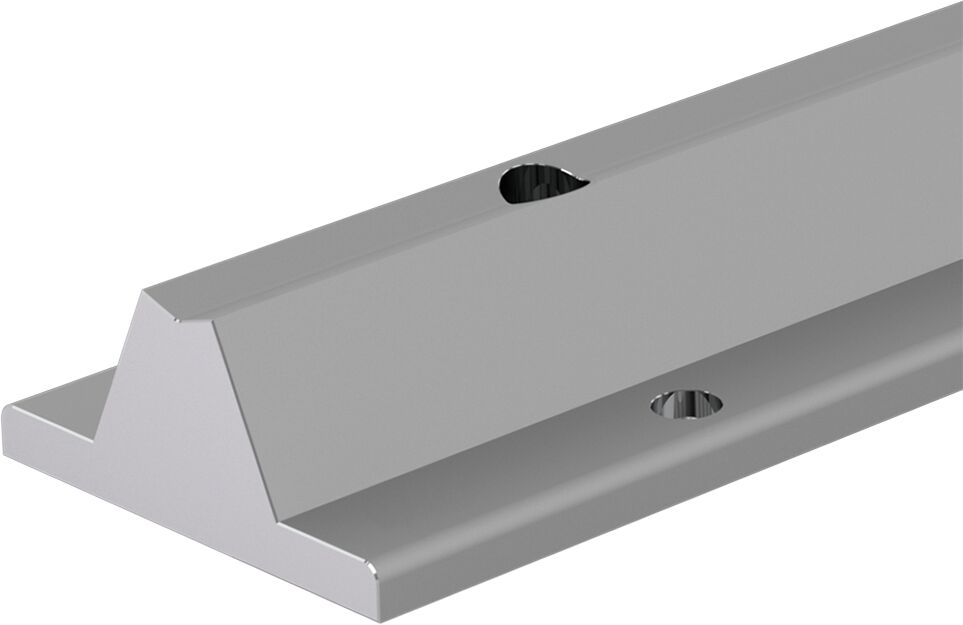

Bosch Rexroth Bosch Rexroth SHAFT SUPPORT RAIL WU12-AF1-600

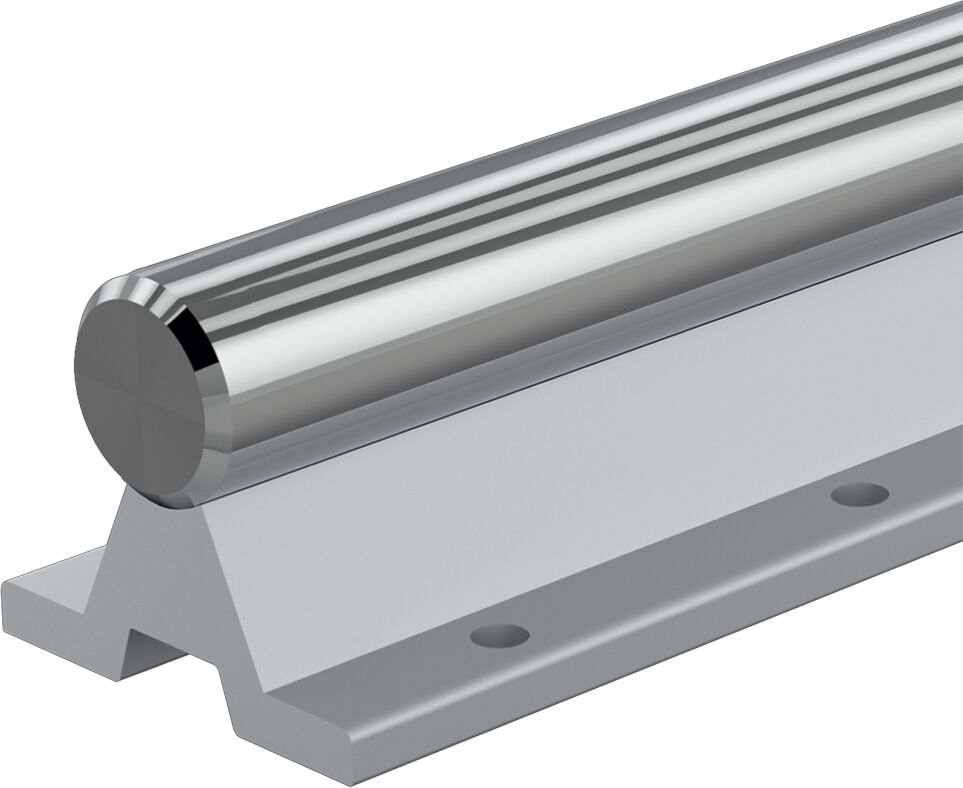

Bosch Rexroth Bosch Rexroth SHAFT WITH SUPPORT WM-20-AFE1-H7-

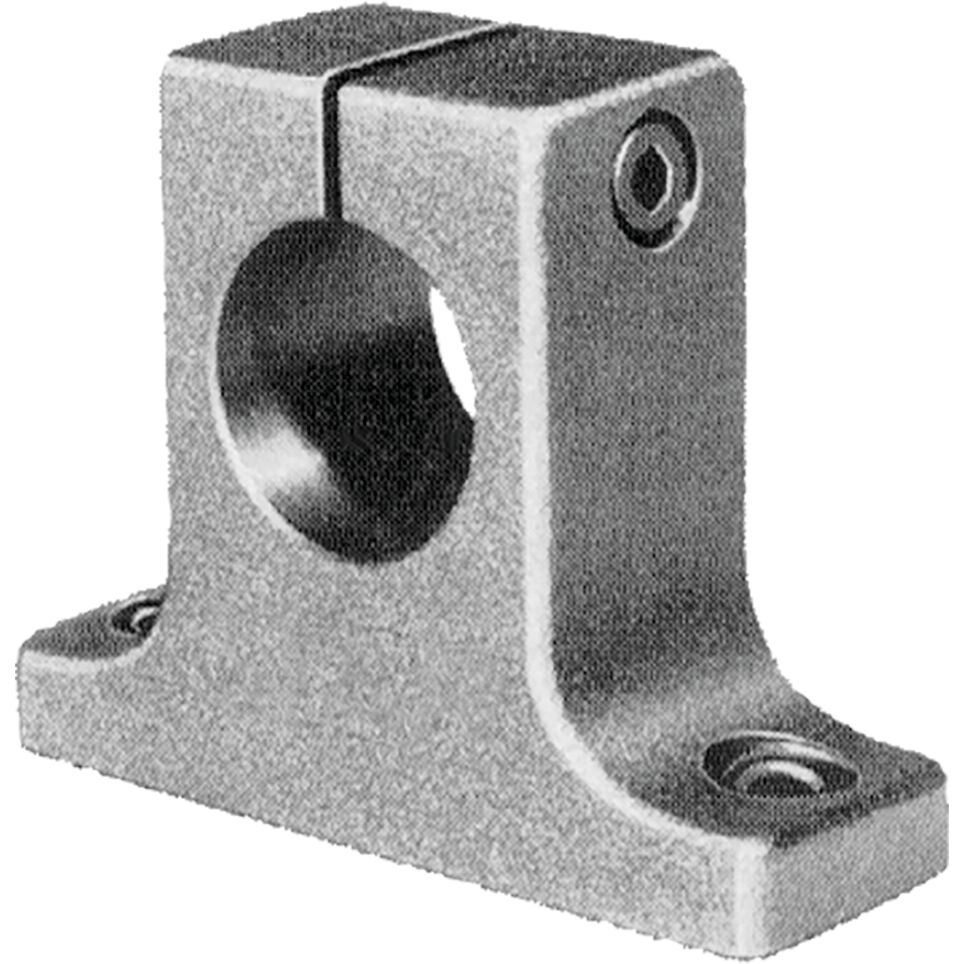

Bosch Rexroth Bosch Rexroth SHAFT SUPPORT BLOCK WBS-12
