Bosch Rexroth SHAFT WITH SUPPORT WM-20-AFH1-H6-
Bosch Rexroth R101102000 - Linear Motion & Guides - Weight (Kg): 0; Dimension h [mm]: 38.0; Dimension A (profiled rail systems) [mm]: 56.
The Bosch Rexroth R101102000 is part of the Linear Motion & Guides range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 0 and Dimension h [mm]: 38.0.
Published specifications for this part include Dimension A (profiled rail systems) [mm]: 56; Shaft diameter d [mm]: 20.0; Dimension E [mm]: 37; Mass m (kg/m) [kg/m]: 4.1; Dimension M1 [mm]: 11; Material of precision steel shafts: Heat-treated steel Cf53; Tolerance grade shaft: h6; Dimension V [mm]: 6; Material shaft support rails: Aluminum; Dimension M [mm]: 8.3; Dimension O1 thread x lead [mm]: M6x30; Dimension O2 thread diameter: M6x16. The complete technical table is shown in the Specifications tab on this page.
| Dimension A (profiled rail systems) [mm] | 56 |
|---|---|
| Dimension E [mm] | 37 |
| Dimension h [mm] | 38.0 |
| Dimension M [mm] | 8.3 |
| Dimension M1 [mm] | 11 |
| Dimension N [mm] | 11 |
| Dimension O1 thread x lead [mm] | M6x30 |
| Dimension O2 thread diameter | M6x16 |
| Dimension t [mm] | 9.6 |
| Dimension U1 [mm] | 6 |
| Dimension U2 [mm] | 6 |
| Dimension V [mm] | 6 |
| Mass m (kg/m) [kg/m] | 4.1 |
| Material of precision steel shafts | Heat-treated steel Cf53 |
| Material shaft support rails | Aluminum |
| Shaft diameter d [mm] | 20.0 |
| Tolerance grade shaft | h6 |
| Weight (Kg) | 0.000000 |
Frequently Asked Questions
How do I get pricing for R101102000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R101102000?
R101102000 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R101102000?
Key specifications include Dimension A (profiled rail systems) [mm]: 56; Dimension E [mm]: 37; Dimension h [mm]: 38.0; Dimension M [mm]: 8.3. The full specification table on this page lists every published attribute for this part.
How quickly can R101102000 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

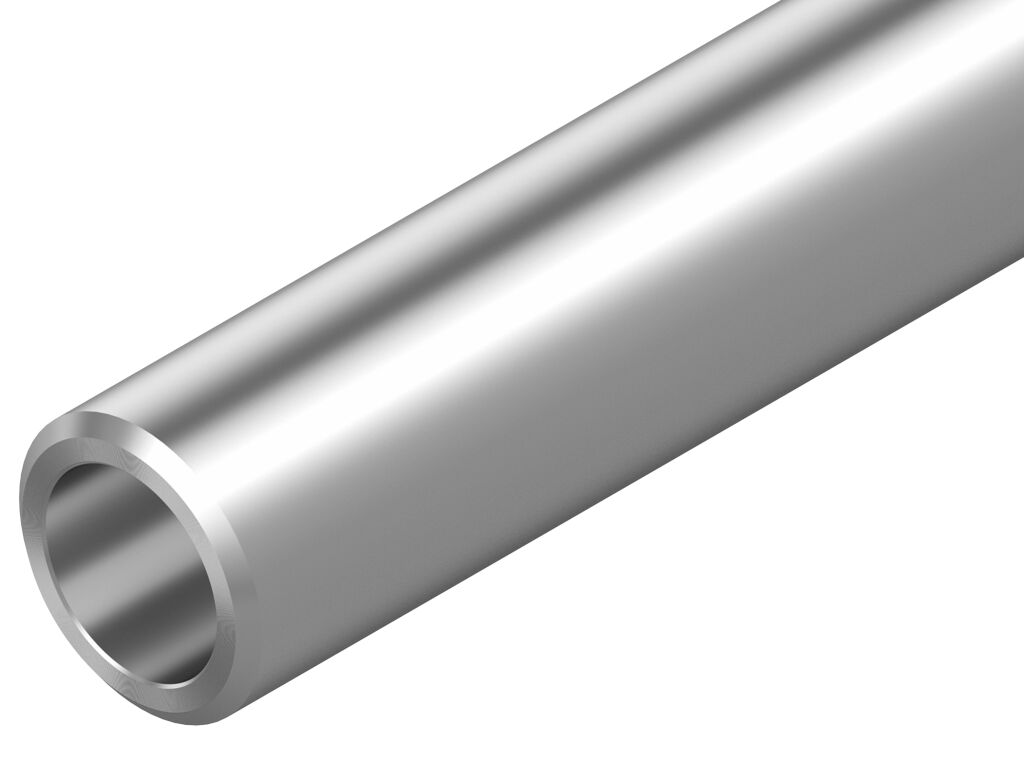

Bosch Rexroth Bosch Rexroth HOLLOW SHAFT WO-50H6

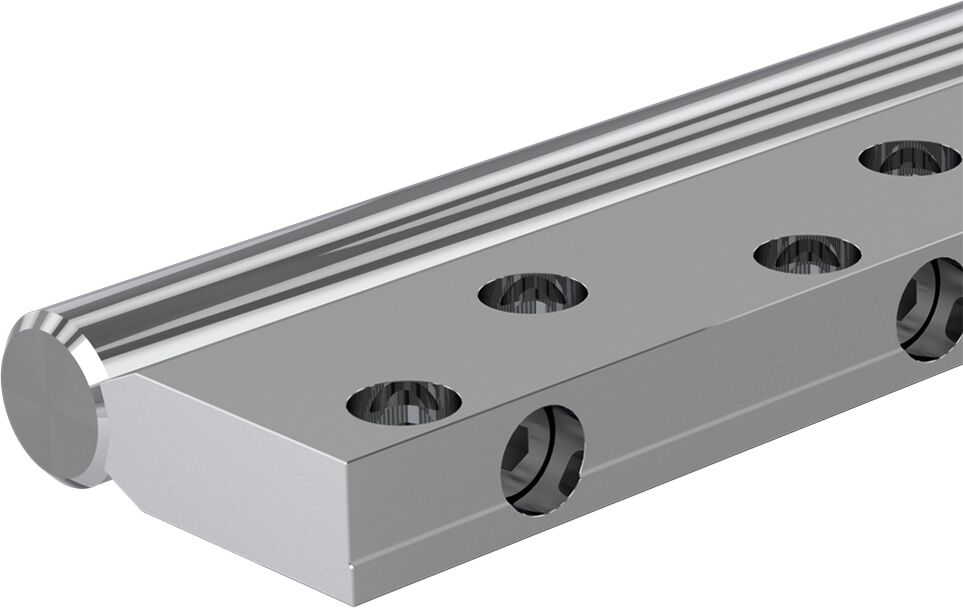

Bosch Rexroth Bosch Rexroth SHAFT WITH SUPPORT WM-20-AS1-H7-
Bosch Rexroth Bosch Rexroth HOLLOW SHAFT WO-16H6

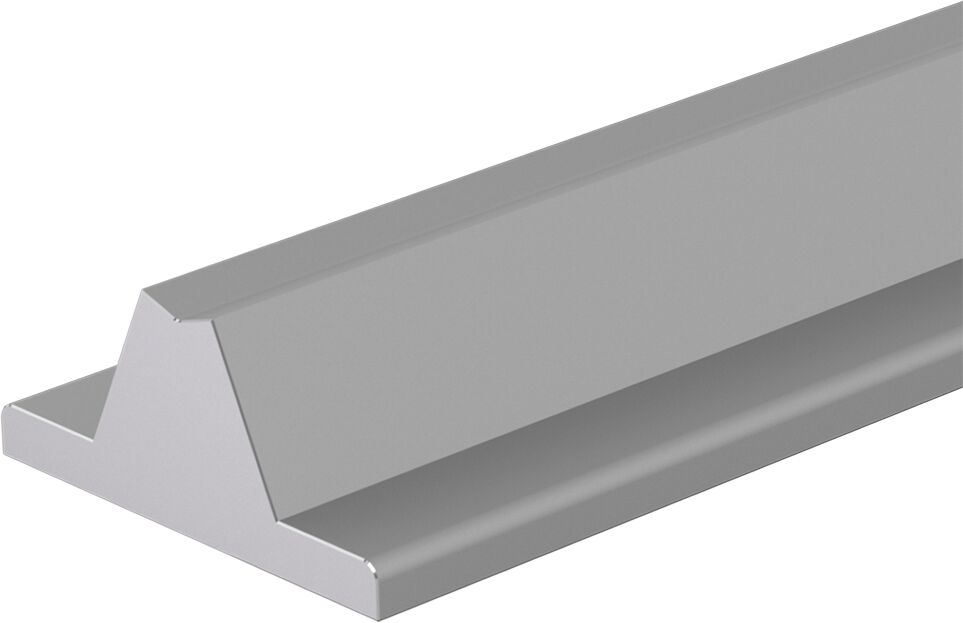

Bosch Rexroth Bosch Rexroth SHAFT SUPPORT RAIL WU12-AFH-600
